222XE Full Specifications
Length | 22' |
---|---|
Weight | 4,072 LBS |
Beam | 8' 6" |
Draft | 19" |
Dead Rise | 20° |
In-Water Height (Bridge Clearance) | 7' 7" |
Seating Capacity/Weight Capacity | 10/2,050 LBS |
Storage Capacity | 502 GAL |
Snap-in Custom Cut Marine Mat | |
---|---|
Ski Locker | |
Removable Dinette Table with Pedestal | Mounts at Cockpit and Stern |
Bow Filler Inserts for Multiple Seating Configurations | |
Hinged Seat Cushions | |
Tilt Steering | |
Upgraded Steering Wheel | |

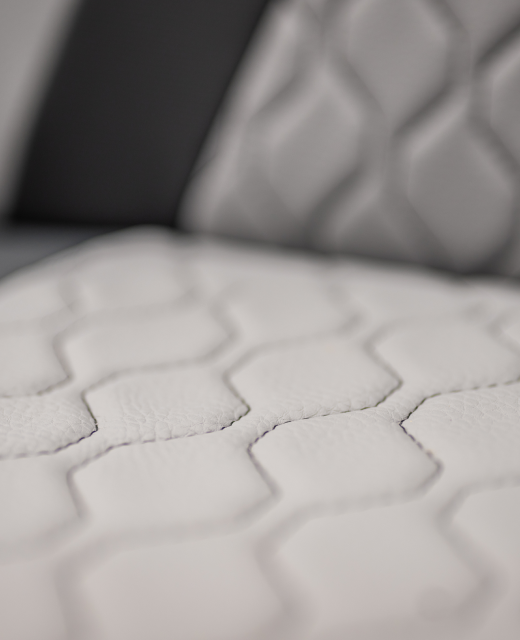

Upgraded Upholstery | |
Adjustable Captain's Chair with Flip-up Bolster | |
Passenger-side Captain's Chair | |
Portside Entertainment Area | |
Glove Box | With Lockable |
Walk-through Bow Door | |
Integrated Removable Cooler | |
Enclosed Head Compartment | N/A |
Docking Lights | |
Courtesy Deck Lighting | |
Dedicated Anchor and Rope Locker | |
Bow Reboarding Ladder | |
Upgraded Aluminum Handles & Accents | |
Cockpit Drainage System (CDS) | |
LED Accent Lighting | |
Courtesy Tower Lighting | |
Upholstered Cushioned Backrests |
Integrated Swim Platform | |
---|---|
Upholstered Cushioned Seats | |
Upholstered Cushioned Backrests | |
Stainless Steel Telescopic Reboarding Ladder | |
Dinette Table Mount | |
Marine-Grade Mat | Custom Cut |
Stern (Wet) Storage | |
Underwater Lights | 1 |
Integrated Drink Holders | Chrome |
Connext with Touchscreen | 12.3" display w/ maps & joystick |
---|---|
Custom Fit Smartphone Holder | |
Yamaha Drive Control | |
Boat Wellness Function Display | in Connext with Touchscreen |
Throttle by Wire Technology | |
Push Button Start/Stop | |
Helm Switch Panels | Blue LED Lit |
Marine Stereo | |
Wireless Charging Points | Helm and Portside (2) |
AUX | |
Custom Tuned Wet Sounds Audio System | |
Bluetooth Capability | |
USB Charge Ports | 1 |
12V Outlet | |
Marine Speakers | 7 Wet Sounds |
Tower Speakers | 2 |
Stern Stereo Remote | |
Stern Speakers | |
3 position "No Wake Mode™" Control | |
Cruise Assist | |
Compass | |
Depth Finder | |
Water Temperature | |
Electronic Speedometer | |
Fuel Management System | |
Dual Battery Setup | |
Rack & Pinion Steering | |
Quiet Cruise Technology | |
Articulating Keel System | |
Optimized Jet Nozzle Position | |
Integrated Ballast System | 1,100 LBS |
Premium Wakeboard Racks | |
Integrated Tower Tow Hook | |
Integrated Electric WakeBooster | |
Wake-enhancing Hull Design |
Yamaha Marine Engine | Twin 4-cylinder, 4-stroke, 1.8 Liter High Output Yamaha Marine Engines |
---|---|
Displacement (per engine) | 1812cc |
Fuel Capacity | 70 GAL |
155 MM High-Pressure Pump | |
Pump Clean-out Ports | |
Oil Capacity per Engine | 3.7L |
3-Blade, Stainless Steel Impeller | |
Saltwater Corrosion Resistant Driveline |
Color | Mist Gray,Black |
---|---|
Stainless Steel Bow Rails | |
Stainless Steel Cleats | 6 Pop-up |
Tow Hook | |
Bimini™ Top | |
Aluminum Folding Wakeboard Tower | |
Wakeboard Racks | |
Windshield Mirror | Aluminum Billet |
Painted Trailer with Swing-away Tongue | Tandem Axle |
---|---|
Galvanized Trailer with Swing-away Tongue | Optional (Tandem Axle) |
Spare Tire and Mount | |
Disk Brakes | |
Chrome Wheels & Aluminum Fender Step Plates | |
Lights | |
Safety Chains | |
Adjustable Winch Stand with Strap and Hook | |
Height on Trailer | 11' |
Height on Trailer with Tower Folded | 9' 11" |
Length on Trailer | 24' |
Length on Trailer with Tongue Folded | 22' 6" |
Dry Weight on Trailer | 5,272 LBS |
A Versatile Wakesurf Experience
Do it all, from surfing and tubing to entertaining and lounging with the 222XE.

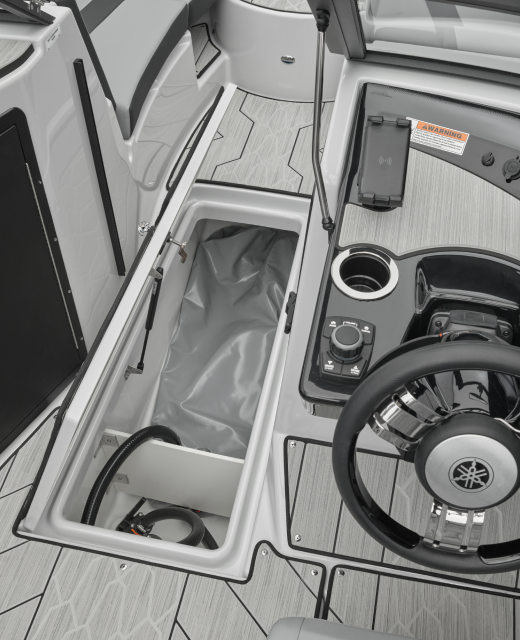

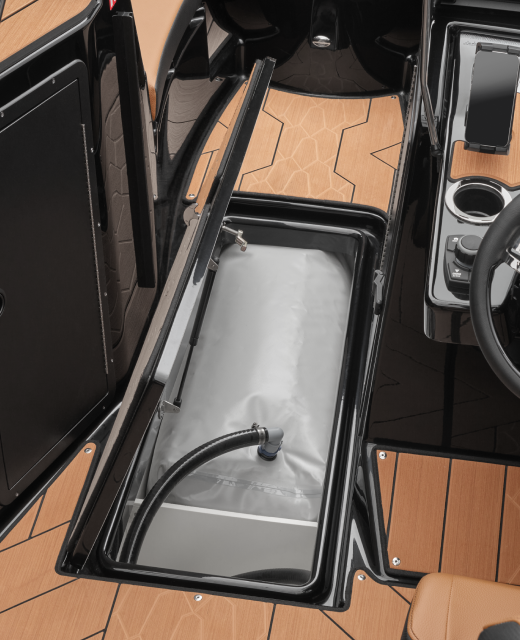

Factory-Installed Ballast System
1100 lbs triple ballast system, oversized billet aluminum rear view mirror, and a premium sound system specifically designed for watersports.

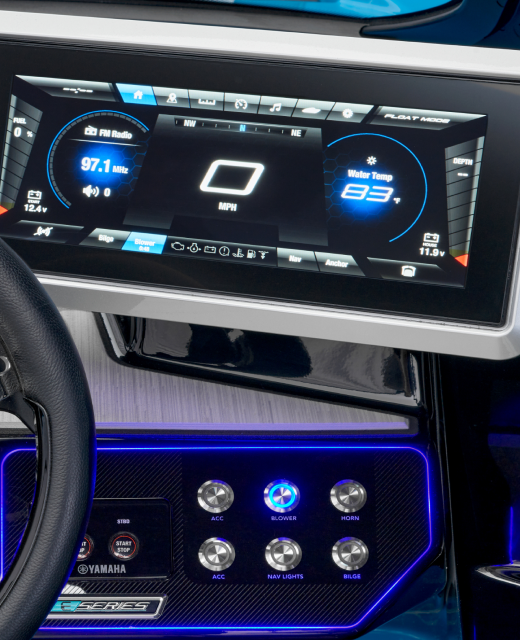

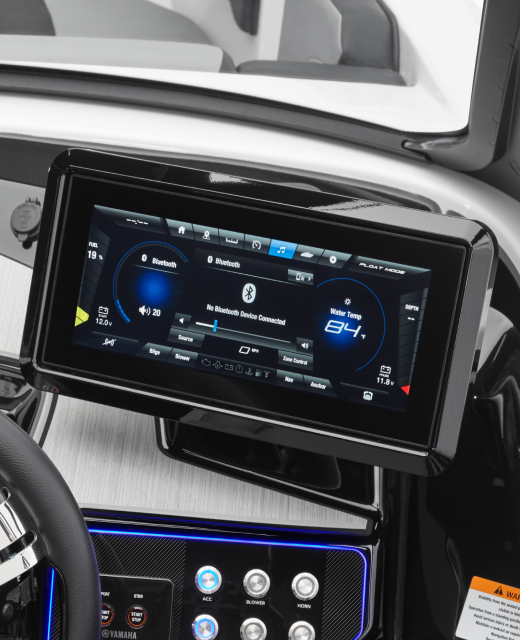

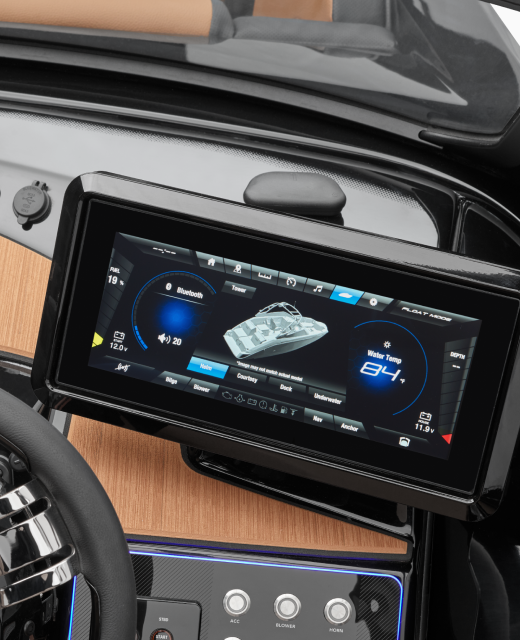

Connext® Touchscreen
The Connext® touchscreen is perfect for towing with user-defined profiles for speed, acceleration and ballast.

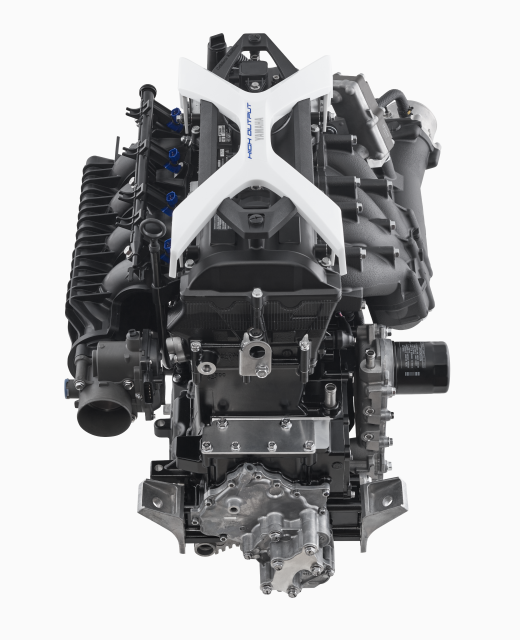

Twin 1.8L Yamaha Marine Engines
Twin normally-aspirated 1.8L engines are powerful, compact and reliable.

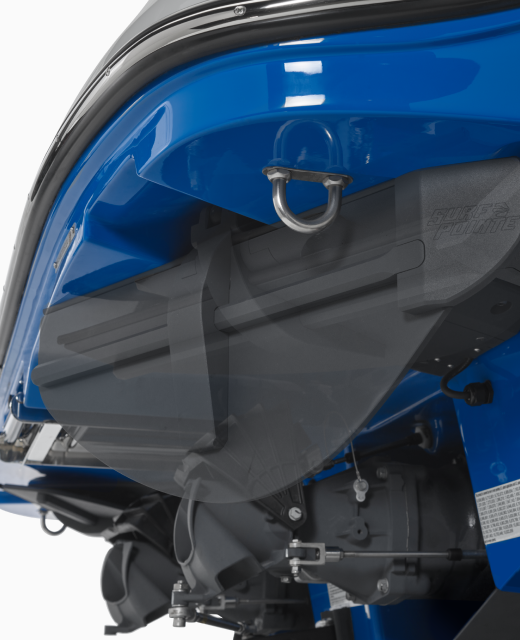

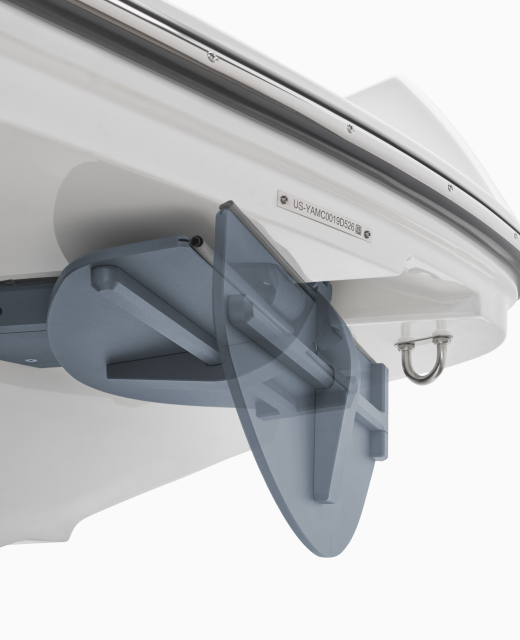

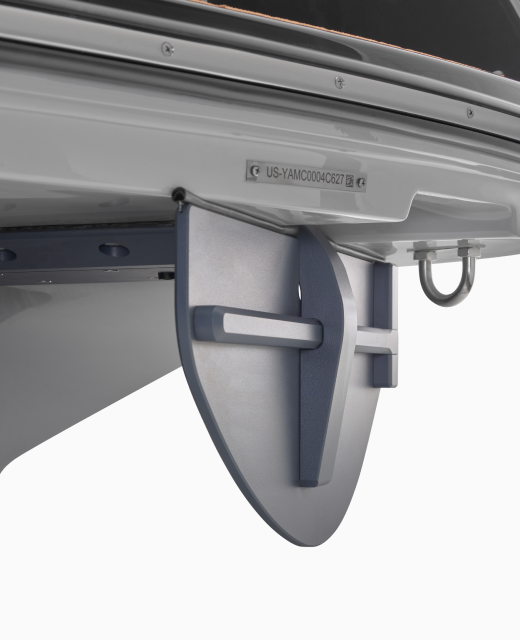

INTEGRATED YAMAHA WAKEBOOSTER®
With the simple push of a button on the Connext® Touchscreen, integrated WakeBoosters® can be deployed on either side of the boat for wakesurfing.

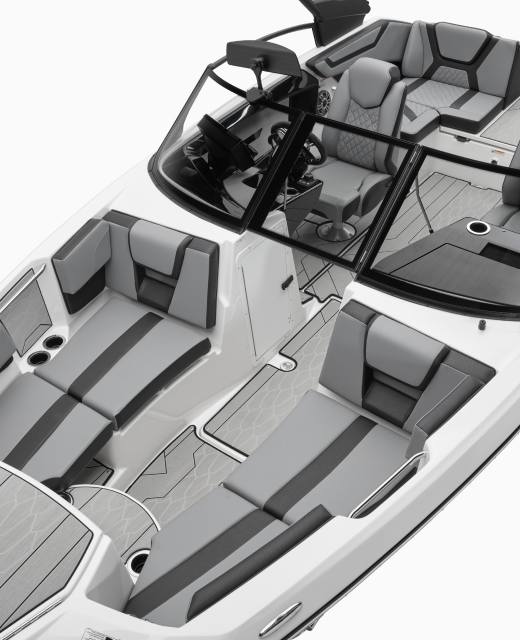

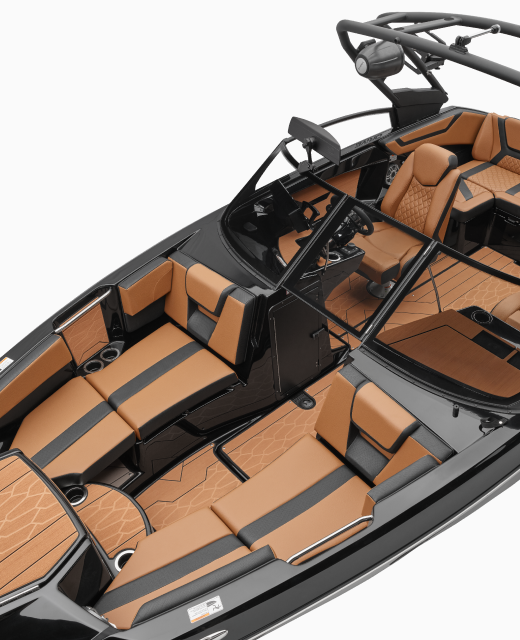

Hinged Bow Seats
There is plenty of storage, port and starboard, available under the hinged bow seats.

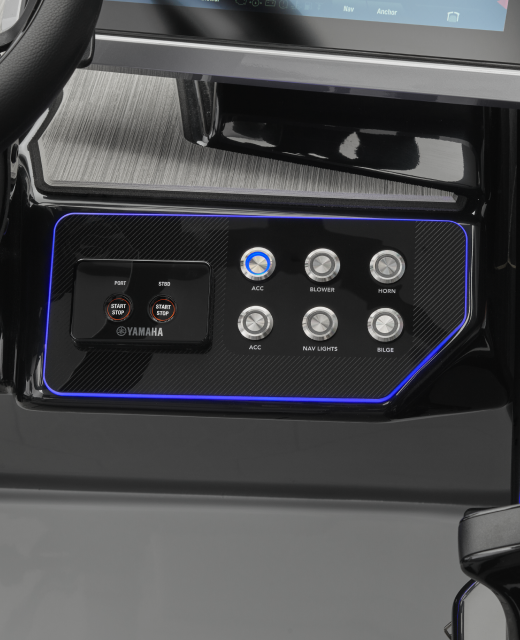

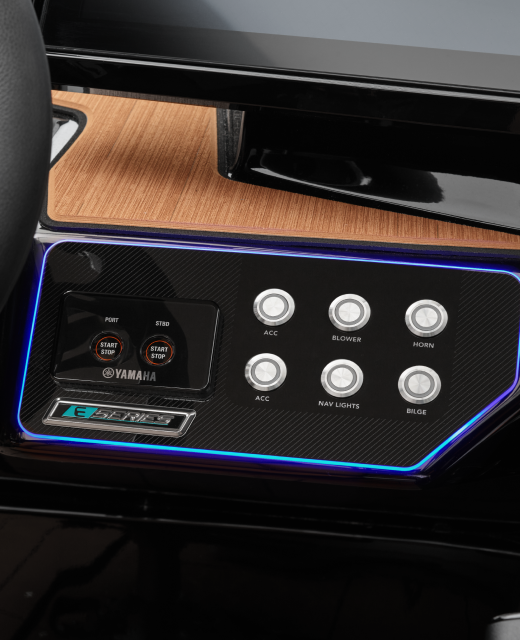

Yamaha E-Series
Features push-button start/stop, RPM engine sync, and single throttle lever pairing.
