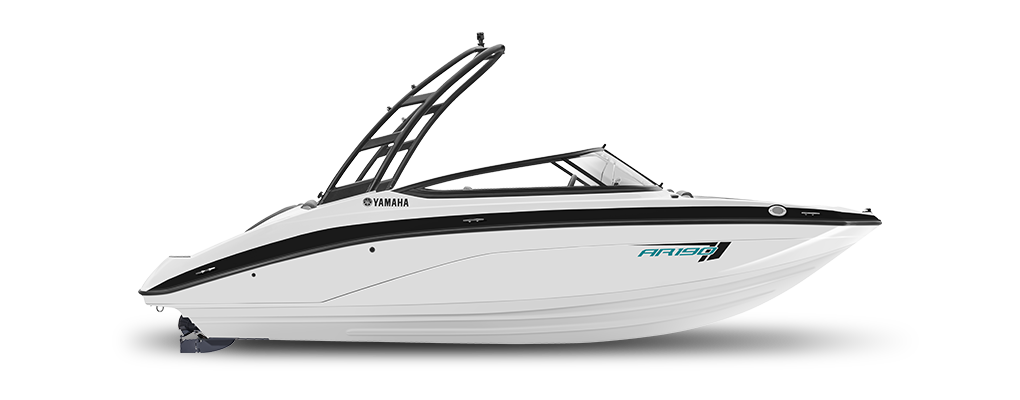

AR190 Seating Chart Area Guide
DownloadAR190 Full Specifications
Length | 19'5" |
---|---|
Weight (lbs) | 2,434 |
Beam | 8'2" |
Draft | 15" |
Dead Rise | 18° |
In-Water Height (Bridge Clearance) | 7'6" |
Fuel Tank Capacity (gal) | 40 |
Seating Capacity (people) | 8 |
Weight Capacity (lbs) | 1600 |
Storage Capacity (gal) | 422 |
Height on Trailer | 10'2" |
Height on Trailer with Tower Folded | 7' |
Length on Trailer | 21'2" |
Length on Trailer with Tongue Folded | 19'5" |
Dry Weight on Trailer (lbs) | 3,111 |
Yamaha Marine Engine | Single 4-cylinder, 4-stroke, 1.9 Liter High Output Yamaha Marine Engine |
Snap-in Teak-Style Marine-Grade Carpet | |
---|---|
Ski Locker | |
Removable Dinette Table with Pedestal | Mount at Cockpit |
Hinged Seat Cushions | |
Integrated Drink Holders | |
Tilt Steering | |
Adjustable Captain's Chair with Flip-up Bolster | |
Integrated Removable Cooler | |
Courtesy Deck Lighting | |
Dedicated Anchor and Rope Locker | |
Cockpit Drainage System (CDS) | |
12-volt Outlet |
Integrated Swim Platform | |
---|---|
Upholstered Cushioned Backrests | |
Stainless Steel Telescopic Reboarding Ladder | |
Marine-Grade Mat | |
Stern (Wet) Storage | |
Factory Installed Swim-up Seat Bracket |
Connext Screen (in) | 5 |
---|---|
Marine Speakers | 4 |
3 position "No Wake Mode™" Control | |
Cruise Assist | |
Battery Setup | Single |
Rack & Pinion Steering | |
Quiet Cruise Technology | |
Articulating Keel System |
Displacement (per engine) | 1898cc |
---|---|
Fuel Capacity (gal) | 40 |
Recommended Fuel | Regular Unleaded |
155 MM High-Pressure Pump | |
Pump Clean-out Ports | |
Oil Capacity per Engine (L) | 2.6 |
Stainless Steel Fixed Cleats | 6 |
---|---|
Tow Hook | |
BiminiTM Top | |
Aluminum Folding Wakeboard Tower with Tow Hook | |
Wakeboard Racks | Optional |
Windshield Mirror |
Painted Trailer with Swing-away Tongue | Single Axle |
---|---|
Galvanized Trailer with Swing-away Tongue | Optional (Single Axle) |
Height on Trailer | 10'2" |
Height on Trailer with Tower Folded | 7' |
Length on Trailer | 21'2" |
Length on Trailer with Tongue Folded | 19'5" |
Dry Weight on Trailer (lbs) | 3,111 |
Watersports Ready
Effortless ownership meets advanced features and stylish design at a great value. Watersports-ready, the AR190 is easy to own and appreciate.
Helm featuring Connext® Touchscreen
Yamaha's innovative 5" touchscreen display and adjustable phone holder offer convenience and functionality.

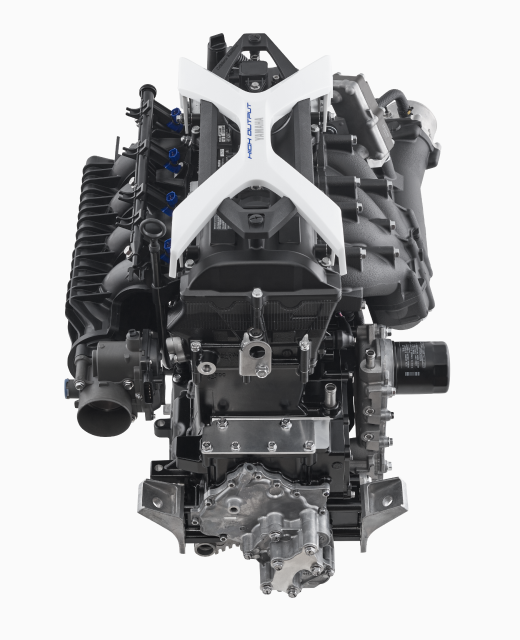

1.9L High Output Yamaha Marine Engine
This four-stroke, four-cylinder, 16-valve powerhouse delivers quick, smooth acceleration and achieves class-leading top speeds.

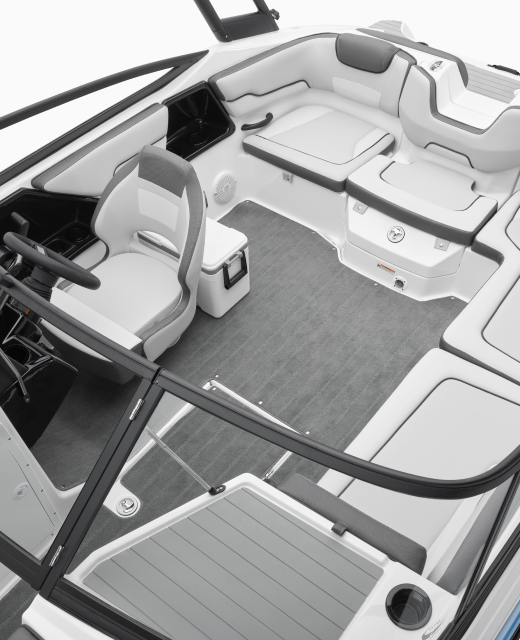

Cockpit Seating
The expertly designed deck maximizes space, offering unmatched comfort and roominess in a 19-foot boat.

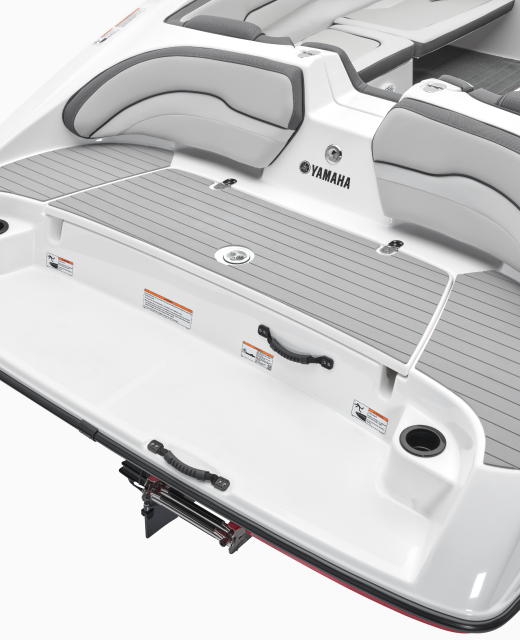

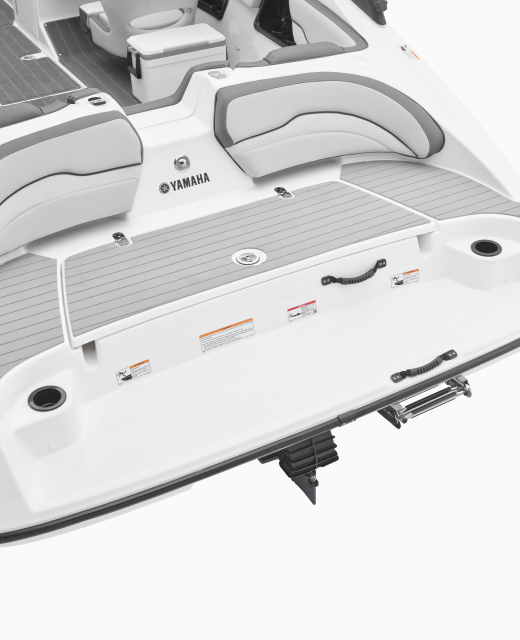

Signature Swim Platform
Now featuring factory-installed hardware for an optional swim-up seat, this comfortable lounge area includes beverage mounts, plush backrest cushions, and easy access to the jet pump cleanout ports.

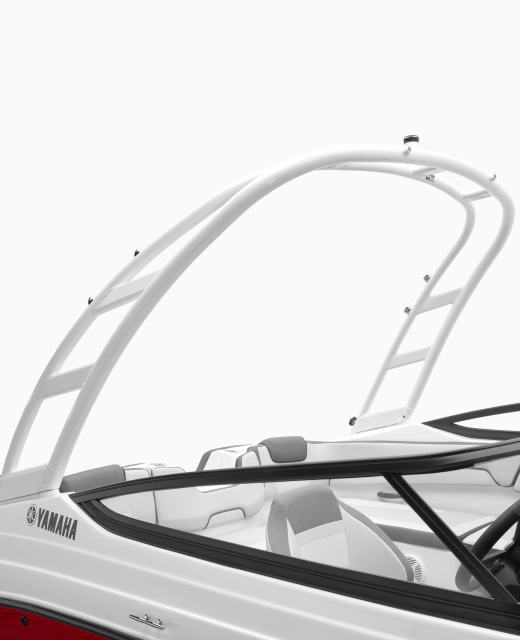

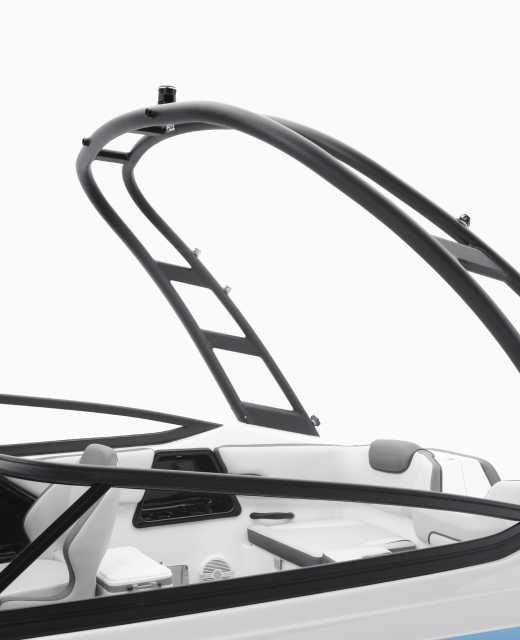

Watersports Tower
Combining functionality and sleek styling, the forward-swept aluminum tower is designed for all your watersports outings.

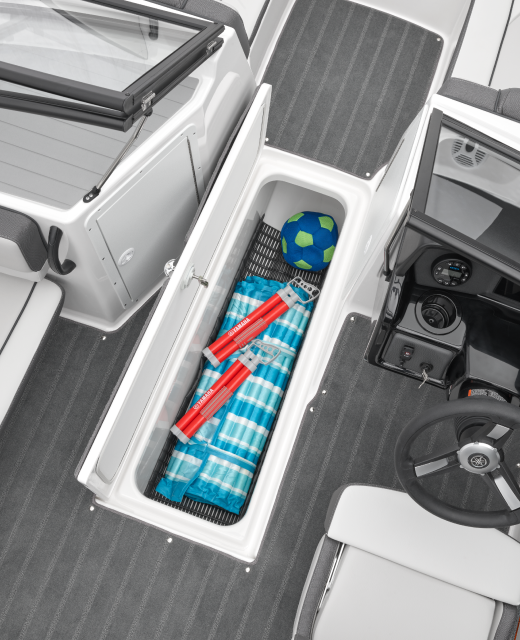

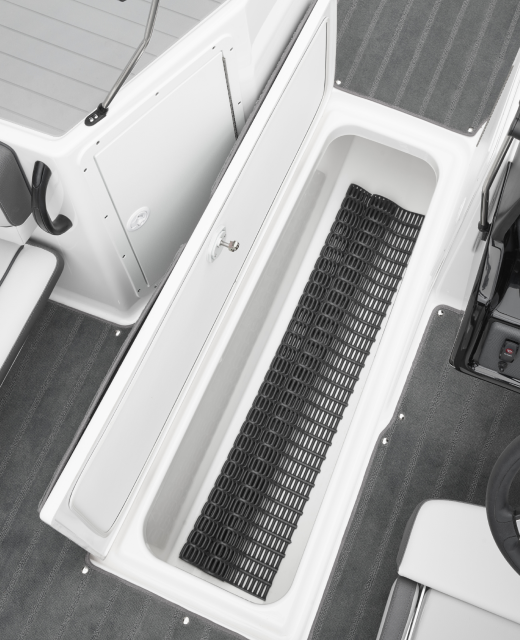

In-Floor Storage
Designed for your convenience, the oversized in-floor storage compartment holds wakeboards and extra gear, keeping your boat clutter-free and your items easily accessible.
