Wake Series Boats
255XD
255XD Full Specifications
Length | 24' 6" |
---|---|
Weight | 4,740 LBS |
Beam | 8' 6" |
Draft | 19" |
Dead Rise | 20° |
In-Water Height (Bridge Clearance) | 8'1" |

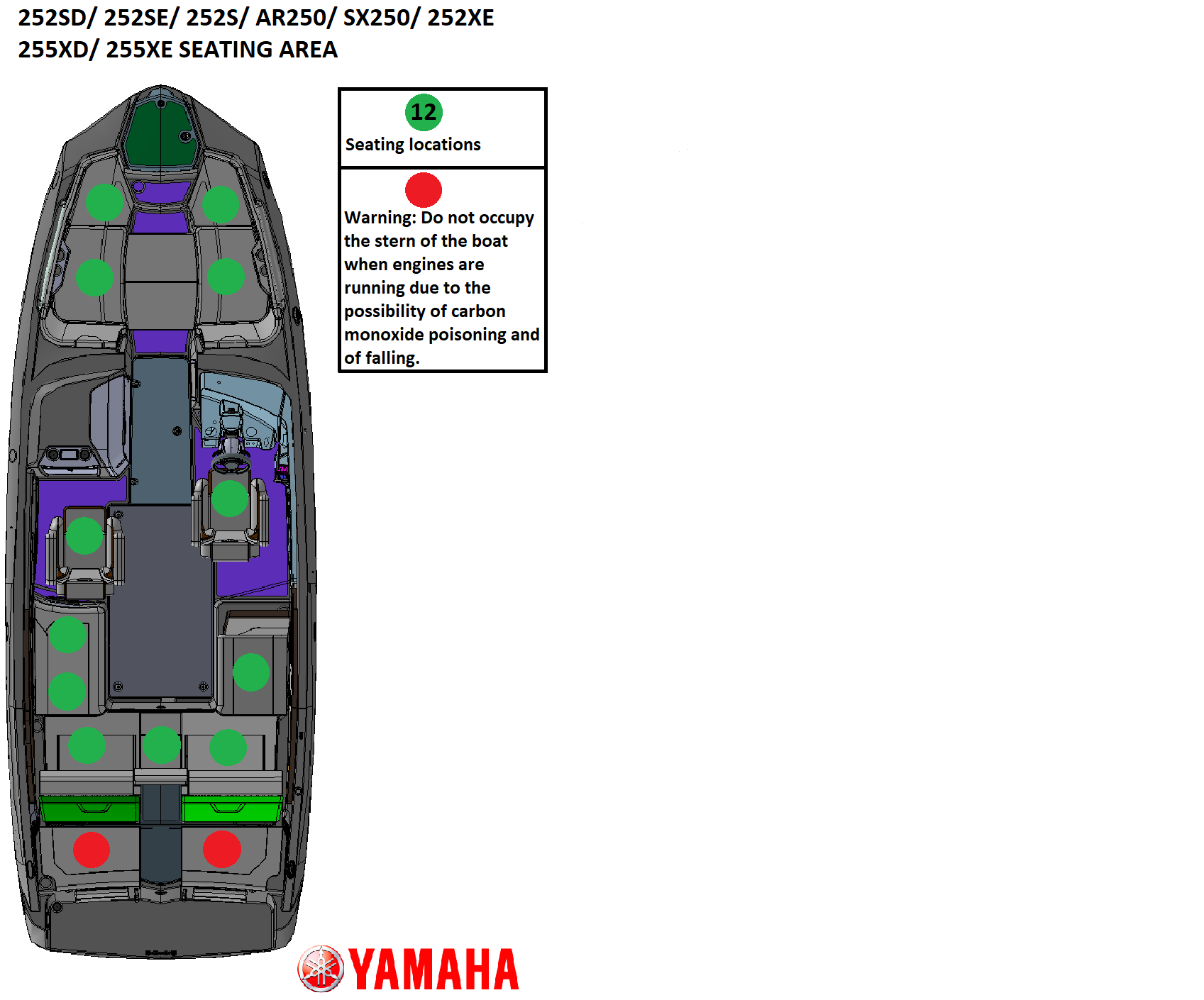

Seating Capacity/Weight Capacity | 12/2,350 LBS |
Storage Capacity | 613 GAL |
Snap-in Custom Cut Marine Mat | |
---|---|
Ski Locker | |
Removable Dinette Table with Pedestal | Mount at Stern |
Bow Filler Inserts for Multiple Seating Configurations | |
Hinged Seat Cushions | |
Integrated Drink Holders | Chrome |
Tilt Steering | |
Upgraded Steering Wheel | |
Upgraded Upholstery | |

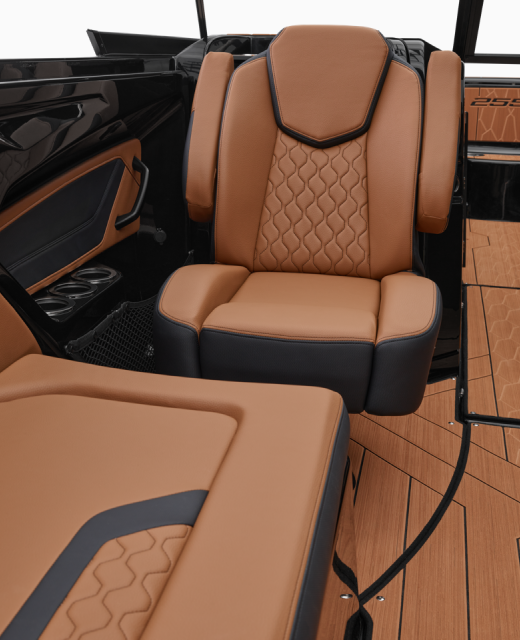

Adjustable Captain's Chair with Flip-up Bolster | |
Passenger-side Captain's Chair | |
Portside Entertainment Area | |
Glove Box | |
Walk-through Bow Door | |
Integrated Removable Cooler | |
Enclosed Head Compartment | w/ Wardrobe Storage Features, Upholstered Interior & Light |
Galley with Stow-in-Place Table and Storage | |
Docking Lights | |
Courtesy Deck Lighting | |
Dedicated Anchor and Rope Locker | |
Bow Reboarding Ladder | |
Upgraded Aluminum Handles & Accents | |
Cockpit Drainage System (CDS) | |
LED Accent Lighting |
Integrated Swim Platform | |
---|---|

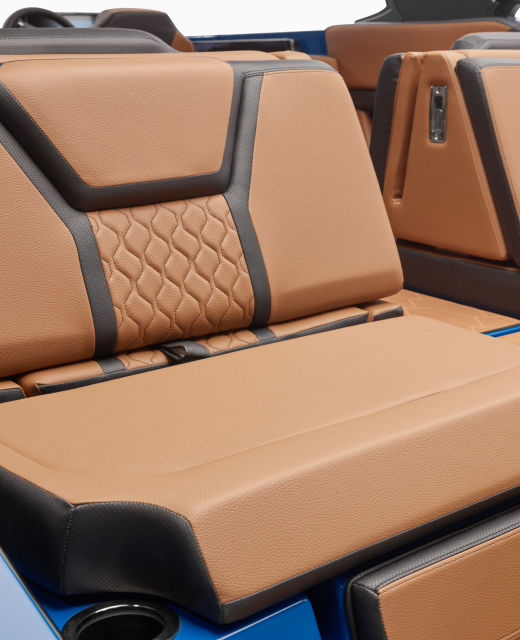

Upholstered Cushioned Seats | |
Upholstered Cushioned Backrests | Upgraded Upholstery |
12-volt Outlet | |
Stainless Steel Telescopic Reboarding Ladder | |
Dinette Table Mount | |
Marine-Grade Mat | Custom Cut |
Stern (Wet) Storage |
DRiVE | |
---|---|
Connext with Touchscreen | 12.3" display w/ maps & joystick |
Custom Fit Smartphone Holder | |
Yamaha Drive Control | |
Boat Wellness Function Display | in Connext with Touchscreen |
Throttle by Wire Technology | |

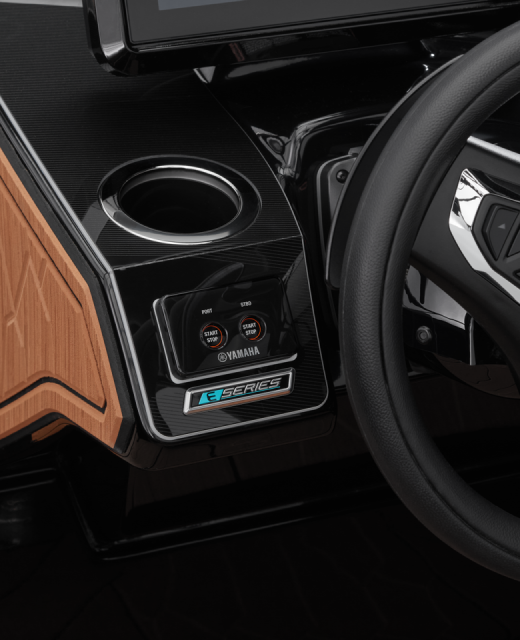

Push Button Start/Stop | |
Helm Switch Panels | Blue LED Lit |
Marine Stereo | Enovation |
Custom Tuned Wet Sounds Audio System | |
Bluetooth Capability | |
USB Charge Ports | 2 |
USB/AUX Input | |
12V Outlet | |
Marine Speakers | 10 Wet Sounds REVO Marine Speakers |
Tower Speakers | 3 Wet sounds |
Stern Stereo Remote | |
Stern Speakers | |
3 position "No Wake Mode™" Control | |
Cruise Assist | |
Depth Finder | |
Water Temperature | |
Electronic Speedometer | |
Fuel Management System | |

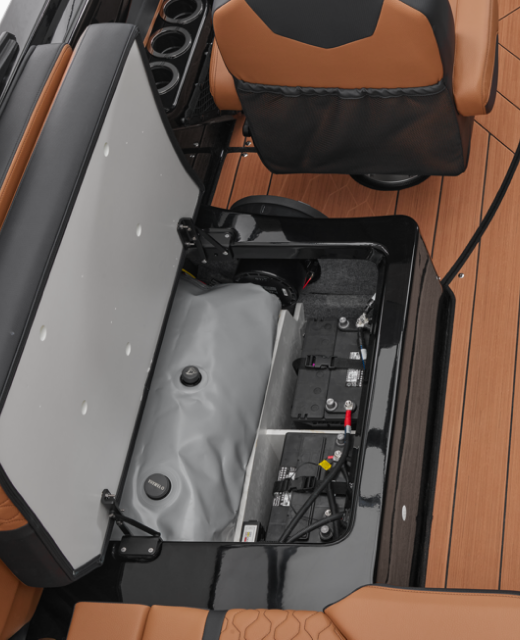

Dual Battery Setup | |
Electronic Power Steering (EPS) | |
Rack & Pinion Steering | |
Quiet Cruise Technology | |
Articulating Keel System | |
Integrated Ballast System | 1,600 LBS |
Premium Wakeboard Racks | |
Integrated Electric WakeBooster | |
Wake-enhancing Hull Design |

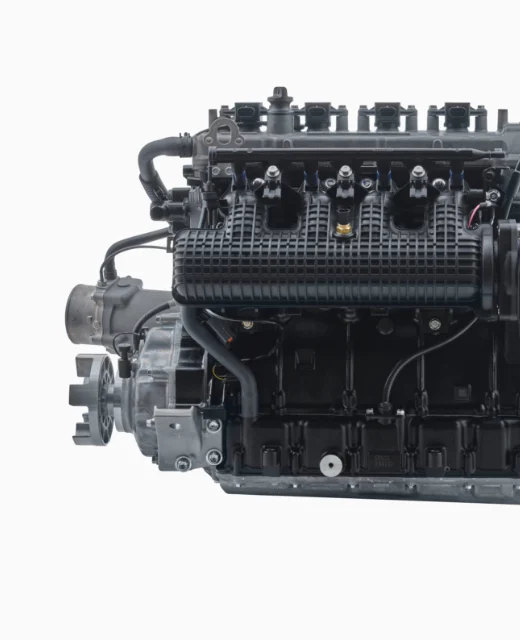

Yamaha Marine Engine | Twin 1.8 Liter, Super Vortex High Output |
---|---|
Displacement (per engine) | 1812cc |
Fuel Capacity | 70 GAL |
160 MM High-Pressure Pump | |
Pump Clean-out Ports | |
Oil Capacity per Engine | 5.3L |
3-Blade, Stainless Steel Impeller | |
Saltwater Corrosion Resistant Driveline |
Color | Suede Gray with Sapphire,Suede Gray |
---|---|
Stainless Steel Bow Rails | |
Stainless Steel Cleats | 6 Pop-up |
Tow Hook | |
Bimini™ Top | Extended |
Premium Windshield Frame | |
Aluminum Folding Wakeboard Tower | |
Wakeboard Racks | |
Windshield Mirror | Aluminum Billet |
Painted Trailer with Swing-away Tongue | |
---|---|
Galvanized Trailer with Swing-away Tongue | Optional (Tandem Axle) |
Aluminum Trailer with Swing-away Tongue | N/A |
Spare Tire and Mount | |
Disk Brakes | |
Chrome Wheels & Aluminum Fender Step Plates | |
Lights | |
Safety Chains | |
Adjustable Winch Stand with Strap and Hook | |
Height on Trailer | 132" |
Height on Trailer with Tower Folded | 119" |
Length on Trailer | 315" |
Length on Trailer with Tongue Folded | 296" |
Dry Weight on Trailer | 5,930 LBS |
Designed for Wakesurfing and Everything Else
One boat truly does it all, with new DRiVE technology, innovative wake features and a functional and stylish design, the 255XD is without rival.

DRiVE® Technology
Yamaha's award winning DRiVE technology for enhanced low-speed handling and maneuverability is an industry first.

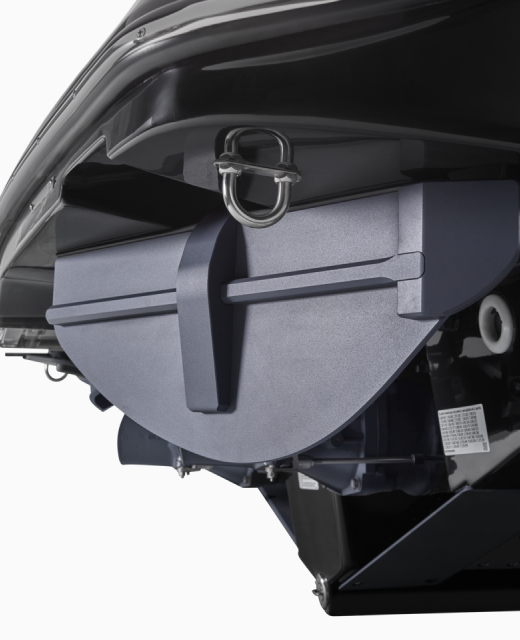

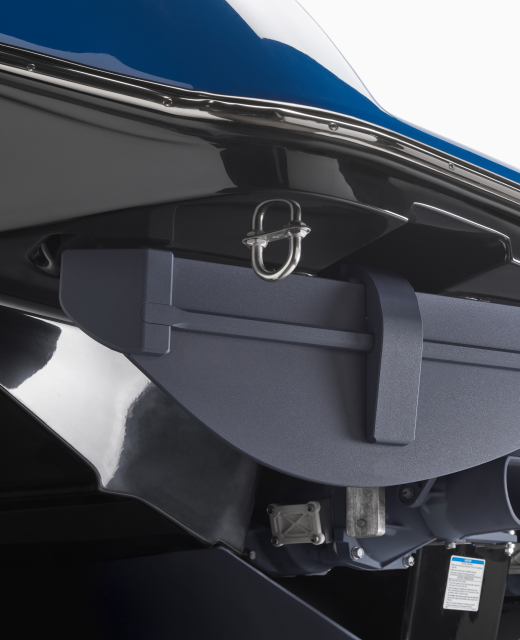

Integrated Yamaha WakeBooster®
With the simple push of a button on the Connext® Touchscreen, integrated WakeBoosters® can be deployed on either side of the boat for wakesurfing.

Wake Specific Hull
Wake specific hull design with a stern that sits lower in the water.

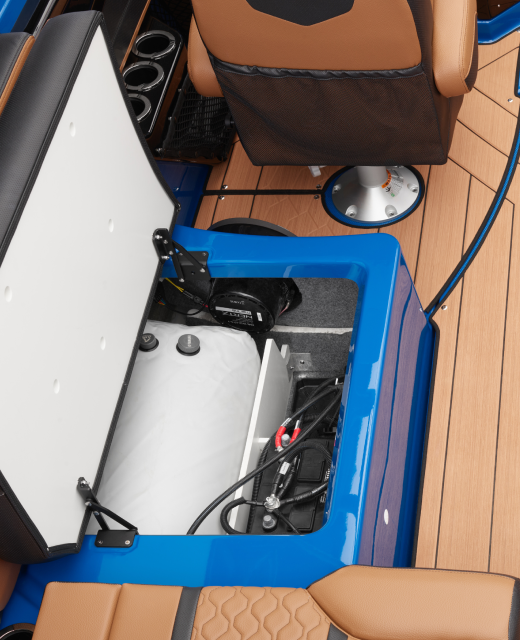

Triple Ballast System
1600lbs ballast system creates the cleanest, most surfable wake in the jet boat category.

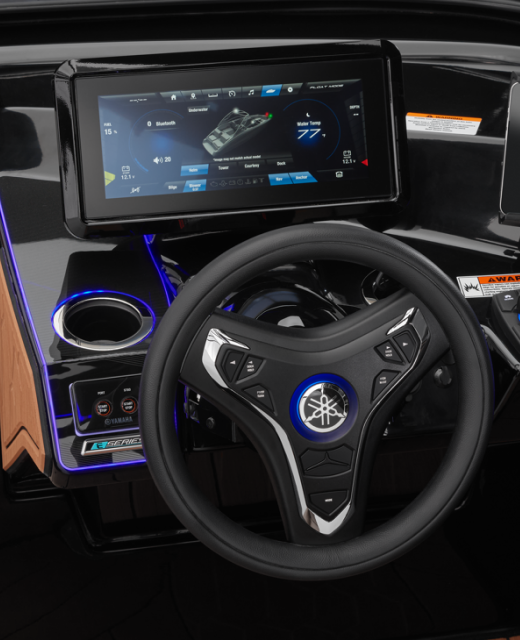

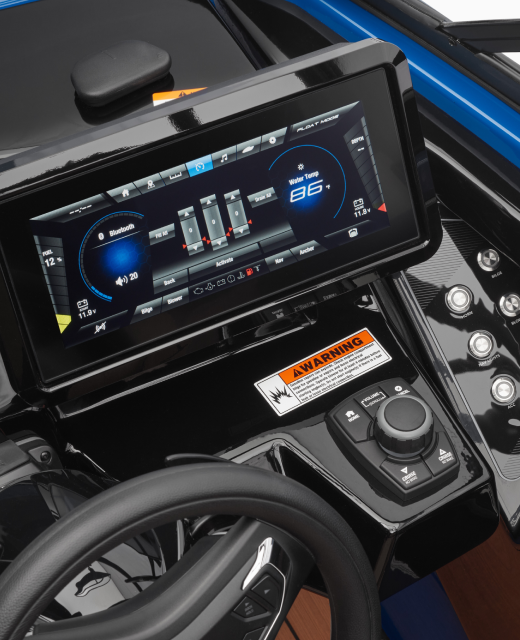

12.3" Connext Touchscreen
The Connext touchscreen is perfect for towing with user-defined profiles for speed, acceleration and ballast.

Premium Wet Sounds Stereo system
The custom-tuned stereo system includes a sound bar, dual amplifiers and subwoofer.
