Center Console Boats
252 FSH Sport
- 190 FSH Sport Exceed Your Expectations
- 195 FSH Sport Supercharge Your Weekends
- 220 FSH Sport Value and Versatility
- 222 FSH Sport Style and Function
- 222 FSH Sport E E-Series® Convenience
- 252 FSH Sport Fish Hard. Play Harder.
- 255 FSH Sport E E-Series Convenience
- 255 FSH Sport H With Dock-Assisting Technology
Starting at
$89,399.00

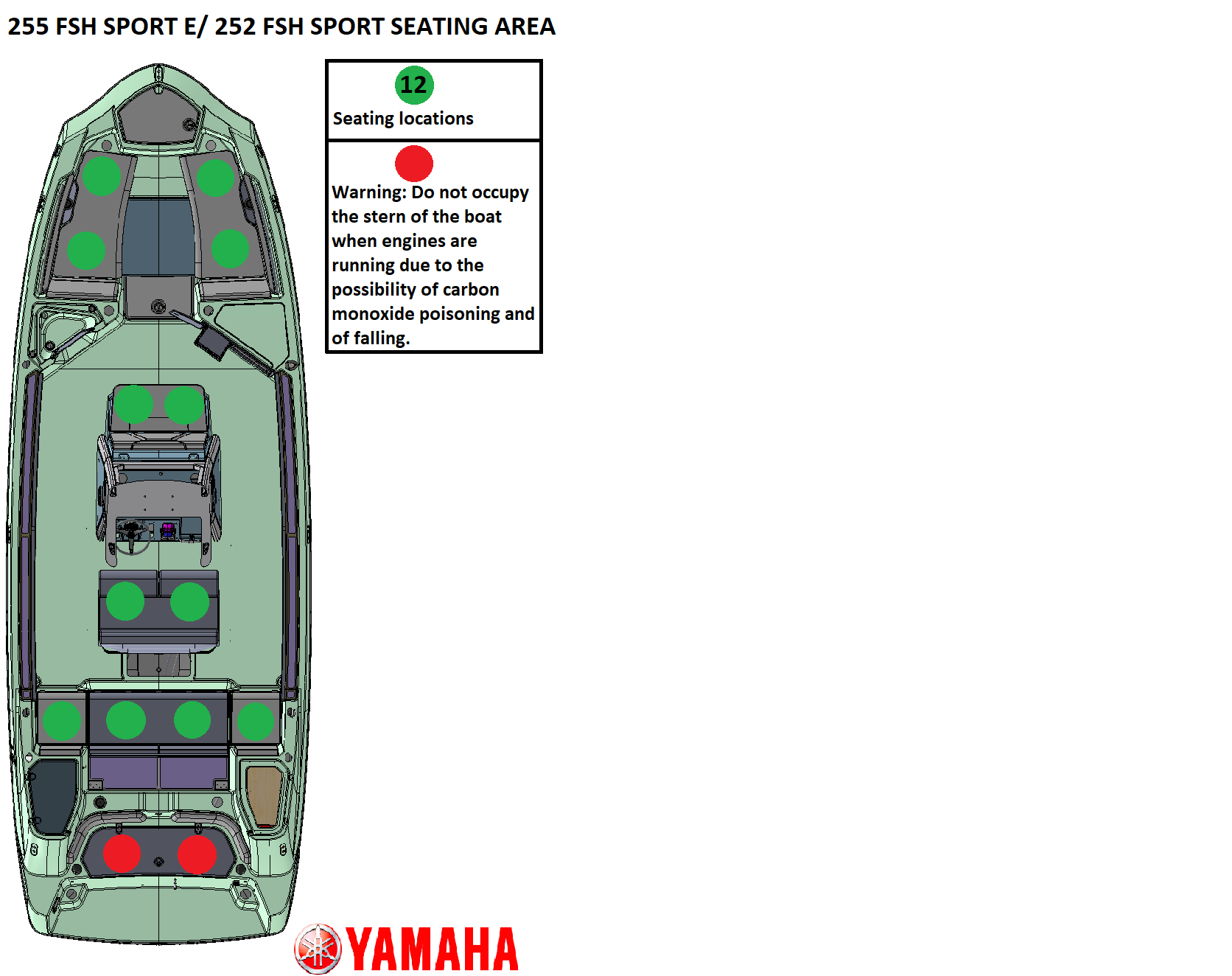

Seating capacity
12
Dry weight
4,769 LBS
Length
24' 6"
Fuel capacity
111 GAL
Interior color
Khaki
White
252 FSH Sport Full Specifications
| Length | 24'6" |
|---|---|
| Weight (lbs) | 4,374 |
| Beam | 8'6" |
| Draft | 22" |
| Dead Rise | 20° |
| In-Water Height (Bridge Clearance) | 9'2" |
| Fuel Tank Capacity (gal) | 111 |
| Seating Capacity (people) | 12 |
| Weight Capacity (lbs) | 2,700 |
| Storage Capacity (gal) | 557 |
| Height on Trailer (fully rigged) | 11'6" |
| Length on Trailer | 26'3" |
| Length on Trailer with Tongue Folded | 24'8" |
| Dry Weight on Trailer (lbs) | 5972 |
| Yamaha Marine Engine | Twin 4-cylinder, 4-stroke, 1.9 Liter High Output Yamaha Marine Engines |
| Dedicated Anchor and Rope Locker | |
|---|---|
| Insulated Fish Box | |
| Bow Seating with Storage | |
| Snap-in Bow Seat Cushion(s) | |
| Upgraded Upholstery | |
| Bow Filler Platform/Table | |
| Storage Pod | w/ Plano tackle boxes |
| Portside Transparent Livewell (gal) | 18 |
| In-Floor Storage w/ Dedicated Space for 5-Gallon Bucket | |
| Front Console Seat | |
| Lockable Console Compartment/Changing Area with Light | w/ curtain |
| Courtesy Lights | 4 |
| Spreader lights (Hardtop) | 2 |
| Map lights red (Hardtop) | 1 |
| Windshield | Glass |
| Lockable Helm Glove Box | |
| Tilt Steering | |
| Side Console Rod Storage | 6 |
| Gunwale Rod Storage | 6 |
| Horizontal Rod Storage | 8 |
| T-Top Rod Holders | 5 |
| Leaning Post | Upgraded w/ Flip-up Bolster |
| Cooler w/ Storage Under Leaning Post | upgraded |
| Jump Seats | Folding w/ removable backrests |
| Gunwale Padding | Upholstered |
| Slip-Resistant/Easy-Clean Floor | |
| Snap-in Teak-Style Marine Mat Flooring | |
| Cockpit Drainage System (CDS) | |
| Stainless Steel Corrosion Resistant Hardware |
| Integrated Swim Platform | |
|---|---|
| Upholstered Cushioned Backrests | Upgraded Upholstery |
| Stern (Wet) Storage | |
| Table and Grill Mount | |
| Aerated Stern Livewell (gal) | 30 |
| Pod drop in "tackle tray" | |
| Integrated Drink Holders | 2 |
| Stern Stereo Remote | |
| Underwater Lights | 2 |
| Stainless Steel Telescopic Reboarding Ladder |
| Connext Screen (in) | 7 |
|---|---|
| Simrad Electronics | 12" Touchscreen Display |
| Marine Speakers | (6) Standard Hertz |
| 3 position "No Wake Mode™" Control | |
| Cruise Assist | |
| Analog Compass | |
| Water Temperature | |
| Depth Finder | |
| Battery Setup | Dual |
| Rack and Pinion Steering | |
| Articulating Keel System | |
| Electric Raw Water Washdown System with 4.5gph | |
| 8-gallon Fresh Water Wash Down System | |
| Custom Trolling Motor Mount | |
| Through-hull Transducer（For Fish Finder) | |
| Quiet Cruise Technology |
| Displacement (per engine) | 1898cc |
|---|---|
| Fuel Capacity (gal) | 111 |
| Recommended Fuel | Regular Unleaded |
| 155 MM High-Pressure Pumps | |
| Pump Clean-out Ports | |
| Oil Capacity per Engine (L) | 2.6 |
| Stainless Steel Rub Rail | |
|---|---|
| Flush Mount Pop-up Cleats | 6 |
| Horn on Center Console | |
| Nav Lights on Deck | |
| Tow Hook | |
| Hard T-top Rod Holders (qty) | 5 |
| Painted Boat Trailer with Swing-away Tongue | Tandem Axle |
|---|---|
| Aluminum Trailer with Swing-Away Tongue | OPTIONAL (Tandem Axle) |
| Spare Tire and Mount | |
| Height on Trailer (Fully Rigged) | 11'6" |
Unleash Your Adventure.
The 252 FSH Sport is built to tackle big waves, big fish, and your biggest aspirations, providing the performance and reliability you need for every adventure on the water.
TWIN 1.9L HIGH OUTPUT YAMAHA MARINE ENGINES
Experience the power of twin 1.9L four-stroke, four-cylinder, 16-valve High Output Yamaha marine engines, delivering a combined 400 horsepower for exceptional performance on the water.
Signature Swim Platform
Yamaha's signature swim platform features beverage mounts, plush backrest cushions, and convenient access to the patented pump cleanout ports to easily clear debris.

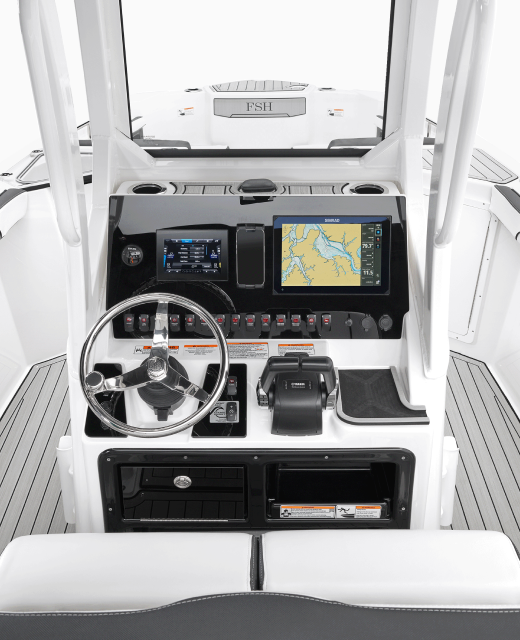

Spacious Helm Layout
The helm features a 7-inch Connext® 3.0 touchscreen, 12-inch Simrad™ electronics, a glass windshield, a stainless steel sports steering wheel, and a locking glove box

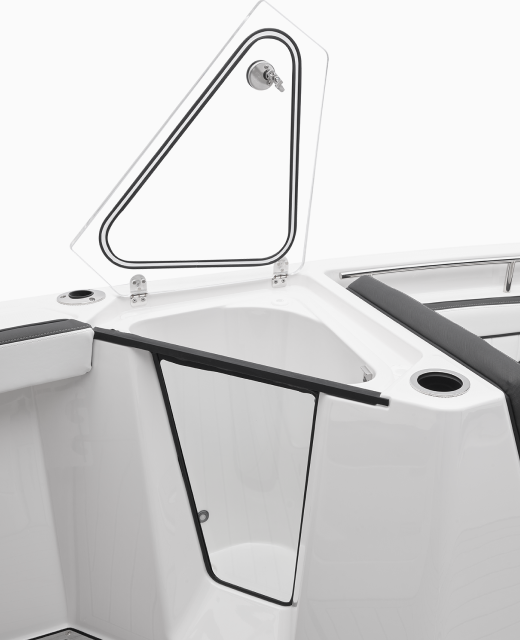

Livewell
Includes a transparent live bait well on the portside and a large storage pod with a padded marine mat on the starboard side, providing convenient and efficient storage solutions.

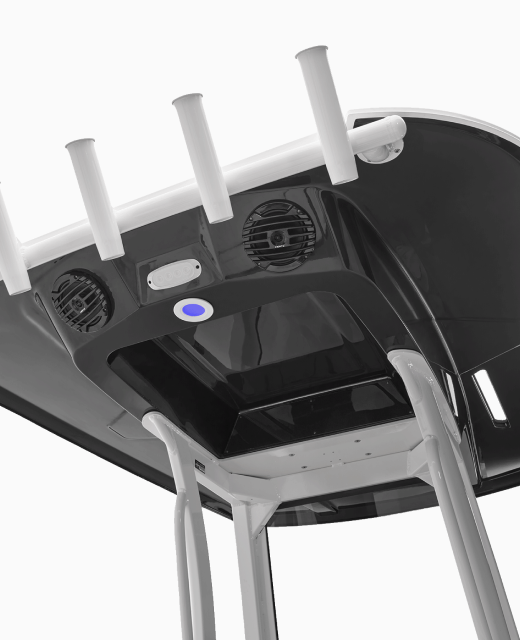

Hardtop Tower
Finished fiberglass hard top with integrated stereo speakers and LED lighting provides both style and functionality.

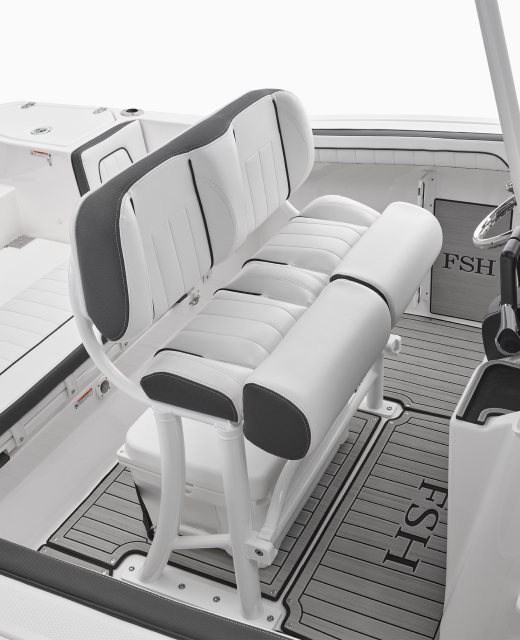

Convertible Leaning Post
The helm features a custom leaning post with fold-up bolsters, providing comfortable seating for two and multiple driving options.
Action
READY TO DO EVEN MORE ON THE WATER?
/
01
25 FT FSH HARDTOP STORAGE
$340.99
EVA molded-foam provides for a perfect-fit on the 22' & 25’ FSH hardtop. Featuring an exterior mesh pocket for quick access, a zip-down organizer for personal items, and a hanging “net” for PFDs. Installed with fasteners, hard mounted to the fiberglass top.
02
BAIT/FILET MATE™ TABLE WITH LEVELOCK® MOUNT BY MAGMA®
$172.99
This 20" x 12-¾" table and mount features an engraved MAGMA® logo and handy ruler, increasing visibility when measuring the day’s catch. Grooved sides and a slotted table back provide overboard drainage during cleaning or prep.
03
CATALINA II CLASSIC GAS GRILL
$626.99
The new Catalina II Gas Grill is versatile, portable, and perfect for feeding a large crew. Serves 6-8 people.
04
25FT FSH BOW SHADE KIT
$535.99
The 25FT FSH Bow Shade Kit provides complete coverage of the cockpit. Featuring adjustable shade poles allowing you to adjust the shade as desired. The shade poles store within the gunwales and each kit comes with storage sleeves to easily store and protect the kit.
05
STERN SWIM UP SEAT KIT
$757.99
Swim Up Seat Kit includes two removable seats that attach to the factory provided stern seat brackets under the platform, sitting below the water's surface, providing comfortable in-water seating.
Available in warm and cool tones to match your boats interior on select models.
06
INFLATABLE PADDLE BOARD
$807.99
This 11' 6" Yamaha branded inflatable paddleboard kit features a 6" premium drop stitch construction. Kit includes board, pump, paddle, and storage case.
