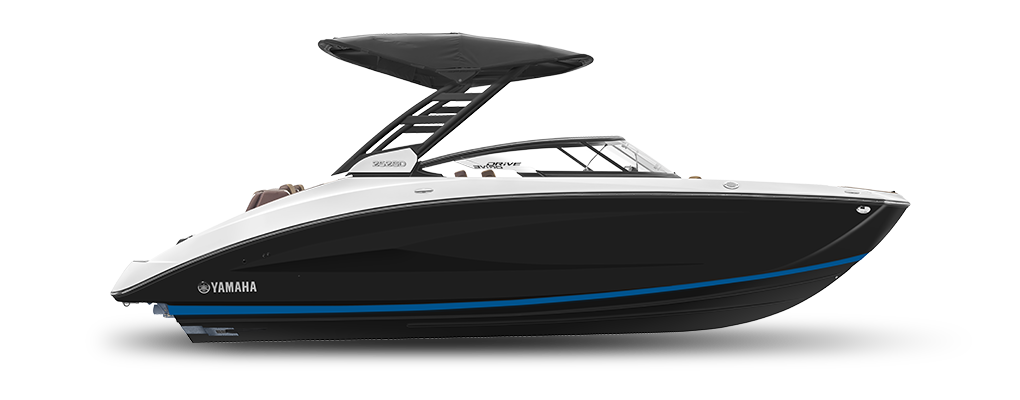

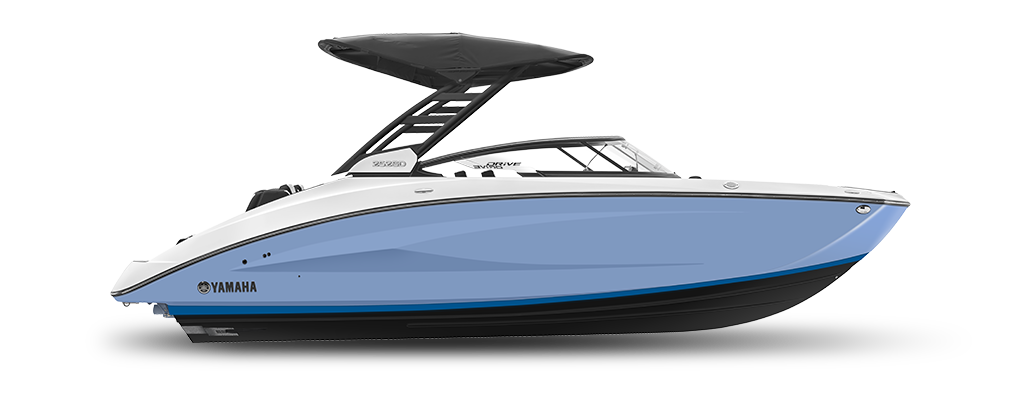

252SD Full Specifications
Length | 24' 6" |
---|---|
Weight | 4,599 LBS |
Beam | 8' 6" |
Draft | 19" |
Dead Rise | 20° |
In-Water Height (Bridge Clearance) | 8' 1" |
Seating Capacity/Weight Capacity | 12/2,600 LBS |
Storage Capacity | 750 GAL |
Snap-in Teak-style Marine Mat | |
---|---|
Ski Locker | |
Removable Dinette Table with Pedestal | Mount at Stern |
Bow Filler Inserts for Multiple Seating Configurations | |
Hinged Seat Cushions | |
Tilt Steering | |
Upgraded Steering Wheel | |
Upgraded Upholstery | |
Adjustable Captain's Chair with Flip-up Bolster | |
Passenger-side Captain's Chair | |
Portside Entertainment Area | |
Glove Box | With Lockable |
Walk-through Bow Door | |
Integrated Removable Cooler | |
Enclosed Head Compartment | w/ Wardrobe Storage Features, Upholstered Interior & Light |
Galley with Stow-in-Place Table and Storage | |
Docking Lights | |
Chil-Cool Touch Technology® vinyl | (Black Only) |
Courtesy Deck Lighting | |
Dedicated Anchor and Rope Locker | |
Bow Reboarding Ladder | |
Upgraded Aluminum Handles & Accents | |
Cockpit Drainage System (CDS) | |
LED Accent Lighting | |
Courtesy Tower Lighting | |
Integrated Drink Holders | Chrome |
Integrated Swim Platform | |
---|---|
Upholstered Cushioned Seats | |
Upholstered Cushioned Backrests | Articulating |
12-volt outlet | |
Stainless Steel Telescopic Reboarding Ladder | |
Dinette Table Mount | |
Marine-Grade Mat | |
Stern (Wet) Storage | |
Freshwater Shower | |
Swim-up Seating |

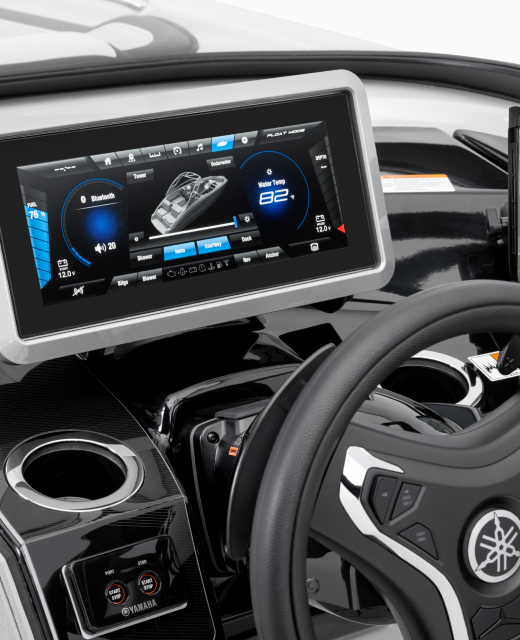

Connext with Touchscreen | 12.3" display w/ maps & joystick |
---|---|
Custom Fit Smartphone Holder | |
Yamaha Drive Control | |
Boat Wellness Function Display | in Connext with Touchscreen |
Throttle by Wire Technology | |
Push Button Start/Stop | |
Helm Switch Panels | Blue LED Lit |
Marine Stereo | |
Wireless Charging Points | Helm(1) |
Custom Tuned Wet Sounds Audio System | |
Bluetooth Capability | |
USB Charge Ports | 1 |
Underwater Lights | |
USB/AUX Input | |
12V Outlet | |
Marine Speakers | 7 Wet Sounds |
Stern Stereo Remote | |
Stern Speakers | |
3 position "No Wake Mode™" Control | |
Cruise Assist | |
Depth Finder | |
Water Temperature | |
Electronic Speedometer | |
Fuel Management System | |
Dual Battery Setup | |
Electronic Power Steering (EPS) | |
Rack & Pinion Steering | |
Quiet Cruise Technology | |
Articulating Keel System | |
DRiVE X |
Yamaha Marine Engine | Twin 4-cylinder, 4-stroke, 1.9 Liter High Output Yamaha Marine Engines |
---|---|
Displacement (per engine) | 1898cc |
Fuel Capacity | 75 GAL |
155 MM High-Pressure Pump | |
Pump Clean-out Ports | |
Oil Capacity per Engine | 3.7L |
3-Blade, Stainless Steel Impeller | |
Saltwater Corrosion Resistant Driveline |
Color | White,Black |
---|---|
Stainless Steel Bow Rails | |
Stainless Steel Cleats | 7 Pop-up |
Tow Hook | |
Bimini™ Top | Extended |
Aluminum Folding Wakeboard Tower with Tow Hook | |
Premium Windshield Frame | |
Wakeboard Racks | Optional |
Windshield Mirror |
Painted Trailer with Swing-away Tongue | |
---|---|
Galvanized Trailer with Swing-away Tongue | Optional (Tandem Axle) |
Spare Tire and Mount | |
Disk Brakes | |
Chrome Wheels & Aluminum Fender Step Plates | |
Lights | |
Safety Chains | |
Adjustable Winch Stand with Strap and Hook | |
Height on Trailer | 11' |
Height on Trailer with Tower Folded | 9' 11" |
Length on Trailer | 26' 3" |
Length on Trailer with Tongue Folded | 24' 8" |
Dry Weight on Trailer | 5,802 LBS |
DRiVE X
Technology
TURNING IMAGINATION INTO REALITY
With Yamaha DRiVE X the 252SD comes alive with technology, luxury and innovative design features never seen before in its class.

DRiVE X Technology
The evolution of DRiVE, DRiVE X allows you to move your boat forward and aft, laterally, rotate on an axis or hold the boat against the dock while keeping your hands on the steering wheel. Maneuvering your boat has never been easier.

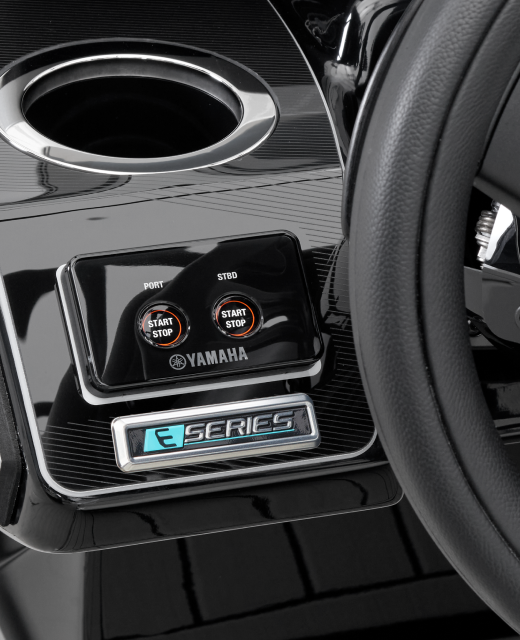

Yamaha E-Series
Features push-button start/stop, RPM engine sync, and single throttle lever pairing.

Swim Up Stern Seating
Two removable seats attached to the stern sit slightly below the water's surface, providing comfortable in-water seating.

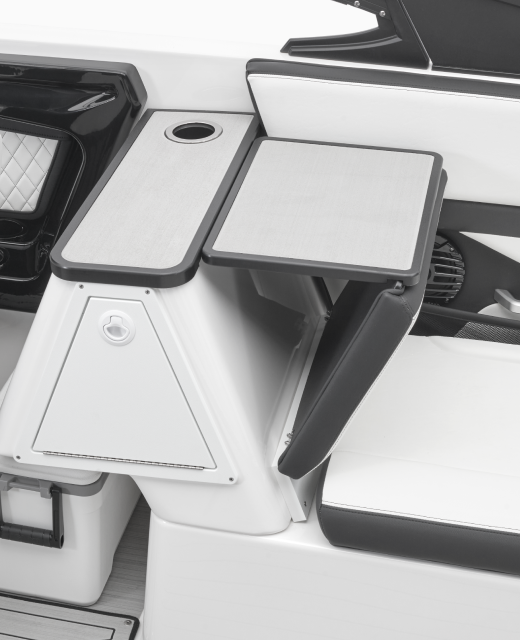

Stow Away Prep Area
Simply flip up the galley table located behind the captain's chair and you are ready to start entertaining.

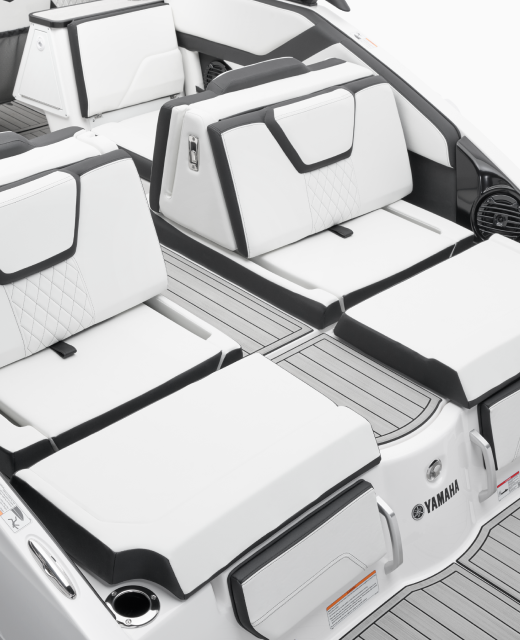

Convertible Stern Seatbacks
Can be moved forward or aft to provide versatile seating options throughout the stern and cockpit.

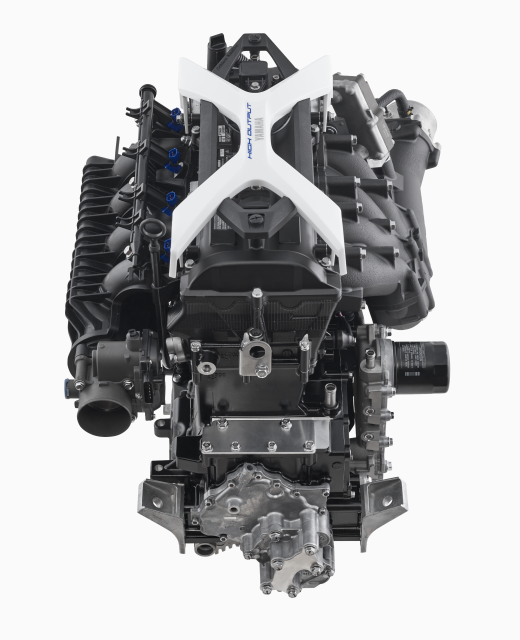

All-New Twin 1.9L High Output Yamaha Marine Engines
These twin four-stroke, four-cylinder, 16-valve High Output Yamaha marine engines provide quicker and smoother acceleration and a higher top speed.
