SX190 Full Specifications
Length | 19' 5" |
---|---|
Weight | 2,377 LBS |
Beam | 8' 2" |
Draft | 15" |
Dead Rise | 18° |
In-Water Height (Bridge Clearance) | 4' 2" |
Seating Capacity/Weight Capacity | 8/1,600 LBS |
Storage Capacity | 422 GAL |
Snap-in Teak-Style Marine-Grade Carpet | |
---|---|
Ski Locker | |
Removable Dinette Table with Pedestal | Mount at Cockpit |
Hinged Seat Cushions | |
Tilt Steering | |

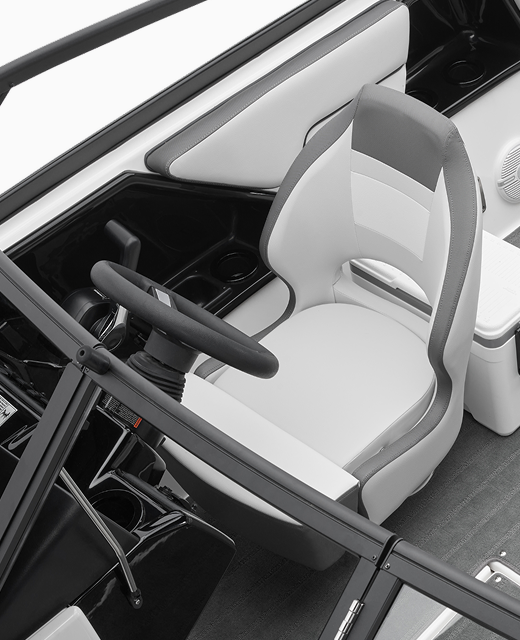

Adjustable Captain's Chair with Flip-up Bolster | |
Passenger-side Captain's Chair | |
Glove Box | |
Integrated Removable Cooler | |
Enclosed Head Compartment | N/A |
Courtesy Deck Lighting | |
Dedicated Anchor and Rope Locker | |
Cockpit Drainage System (CDS) | |
Bow Cushion On Insulated Fish Box | |
Upholstered Cushioned Backrests |
Integrated Swim Platform | |
---|---|
Upholstered Cushioned Backrests | |
Stainless Steel Telescopic Reboarding Ladder | |
Marine-Grade Mat | |
Stern (Wet) Storage | |
Integrated Drink Holders | Black |
Connext with Touchscreen | 5" display |
---|---|
Custom Fit Smartphone Holder | |
Boat Wellness Function Display | in Connext with Touchscreen |
AUX | |
Bluetooth Capability | |
12V Outlet | |
Marine Speakers | 4 Polk |
3 position "No Wake Mode™" Control | |
Cruise Assist | |
Compass | in Connext Touchscreen |
Depth Finder | |
Water Temperature | |
Electronic Speedometer | |
Fuel Management System | |
Rack & Pinion Steering | |
Quiet Cruise Technology | |
Articulating Keel System |
Yamaha Marine Engine | Single 4-cylinder, 4-stroke, 1.8 Liter High Output Yamaha Marine Engine |
---|---|
Displacement (per engine) | 1812cc |
Fuel Capacity | 40 GAL |
155 MM High-Pressure Pump | |
Pump Clean-out Ports | |
Oil Capacity per Engine | 3.7L |
3-Blade, Stainless Steel Impeller | |
Saltwater Corrosion Resistant Driveline |
Color | Sapphire,White |
---|---|
Stainless Steel Cleats | 6 |
Tow Hook | |
Bimini™ Top |
Painted Trailer with Swing-away Tongue | Single Axle |
---|---|
Galvanized Trailer with Swing-away Tongue | Optional (Single Axle) |
Disk Brakes | |
Lights | |
Safety Chains | |
Adjustable Winch Stand with Strap and Hook | |
Height on Trailer | 6' 11.5" |
Length on Trailer | 21' 2" |
Length on Trailer with Tongue Folded | 19' 5" |
Dry Weight on Trailer | 3,047 LBS |
A Perfect Welcome to the Water
Easy to own, easy to love. Innovative features and design at an affordable price.

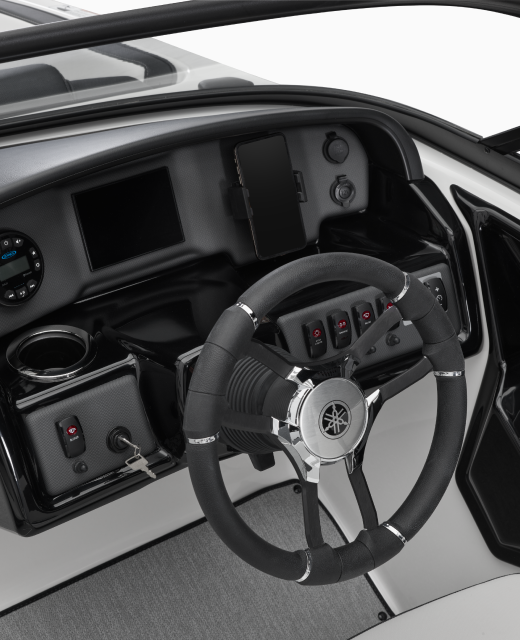

Helm Featuring Connext®
Yamaha's award winning 4.3" touchscreen display with adjustable phone holder.

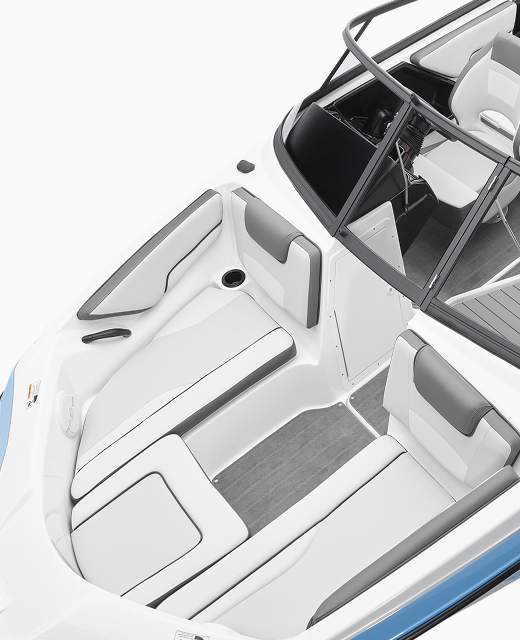

Bow Seating
Includes beverage mounts and backrest cushions for maximum comfort.

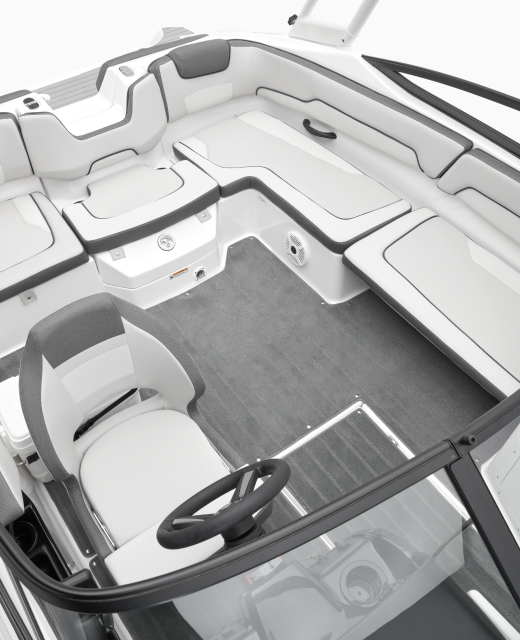

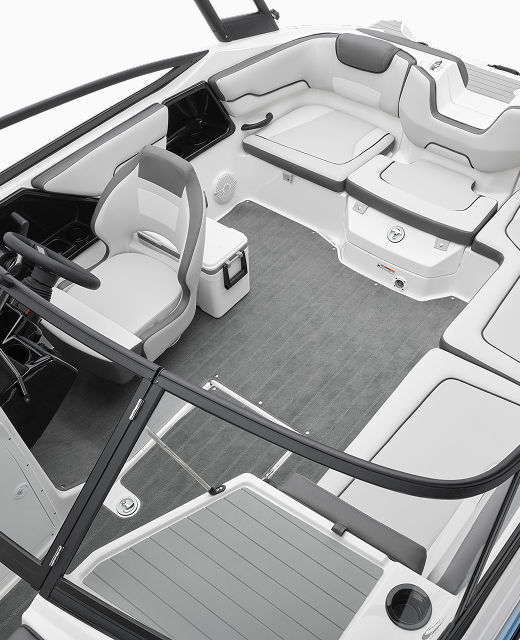

Innovative Cockpit Seating
The deck and hull design maximizes space, comfort and versatility unlike any other 19-foot boat.

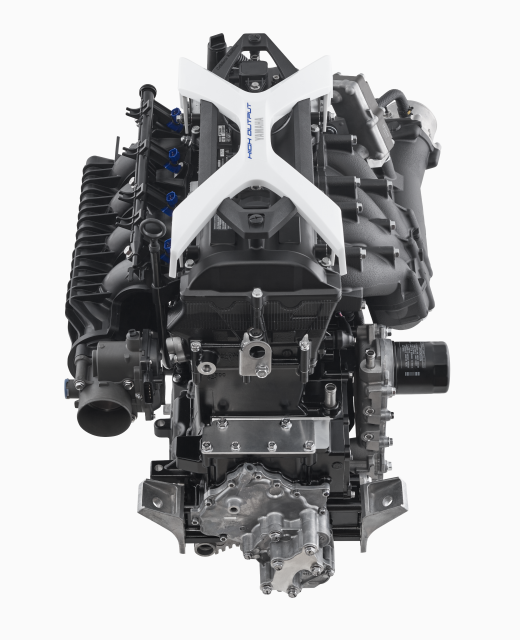

1.8 Liter High Output Yamaha Marine Engine
Yamaha Marine engines deliver class-leading performance, fuel efficiency and reliability.

Innovative Pump Cleanout Ports
Featuring a simple twist-to-lock design, Yamaha's proprietary cleanout ports provide quick access to the jet pumps.

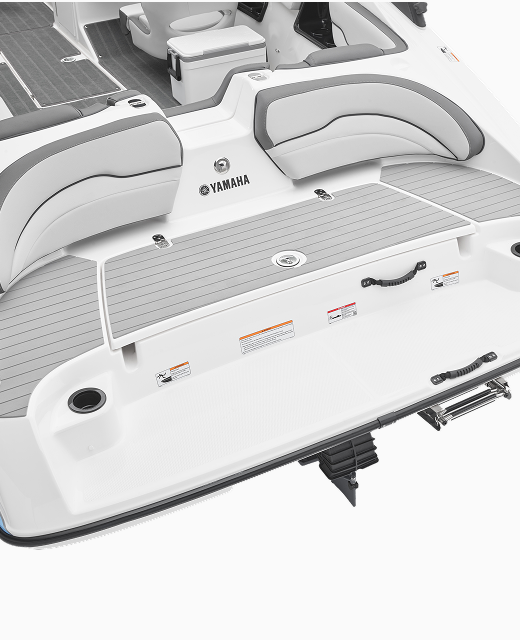

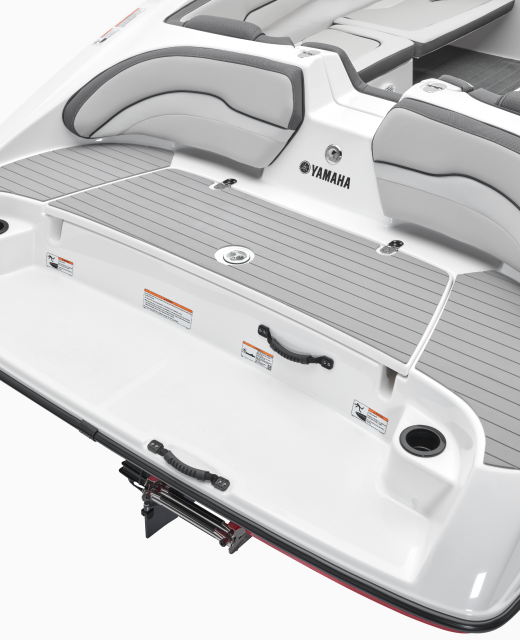

Yamaha's Signature Swim Platform
Includes beverage mounts, backrest cushions and access to the exclusive pump cleanout ports.
