222SD Full Specifications
Length | 22' |
---|---|
Weight | 4054 LBS |
Beam | 8' 6" |
Draft | 19" |
Dead Rise | 20° |
In-Water Height (Bridge Clearance) | 7' 7" |
Seating Capacity/Weight Capacity | 10/2,200 LBS |
Storage Capacity | 502 GAL |
Snap-in Teak-style Marine Mat | |
---|---|
Ski Locker | |
Removable Dinette Table with Pedestal | Mounts at Cockpit and Stern (feat. Marine Mat) |
Bow Filler Inserts for Multiple Seating Configurations | |
Hinged Seat Cushions | |
Tilt Steering | |
Upgraded Steering Wheel | |
Upgraded Upholstery | |
Adjustable Captain's Chair with Flip-up Bolster | |
Passenger-side Captain's Chair | |
Portside Entertainment Area | |
Glove Box | With Lockable |
Walk-through Bow Door | |
Integrated Removable Cooler | |
Docking Lights | |
Courtesy Deck Lighting | |
Dedicated Anchor and Rope Locker | |
Bow Reboarding Ladder | |
Upgraded Aluminum Handles & Accents | |
Cockpit Drainage System (CDS) | |
Upholstered Cushioned Backrests | w/ Storage |
Integrated Swim Platform | |
---|---|
Upholstered Cushioned Seats | |
Upholstered Cushioned Backrests | |
Stainless Steel Telescopic Reboarding Ladder | |
Dinette Table Mount | |
Marine-Grade Mat | |
Stern (Wet) Storage | |
Underwater Lights | 1 |
Integrated Drink Holders | Chrome |
DRiVE | |
---|---|
Connext with Touchscreen | 12.3" display w/ maps & joystick |
Custom Fit Smartphone Holder | |
Yamaha Drive Control | |
Boat Wellness Function Display | in Connext with Touchscreen |
Throttle by Wire Technology | |
Push Button Start/Stop | |
Helm Switch Panels | Blue LED Lit |
Marine Stereo | |
Bluetooth Capability | |
USB Charge Ports | 2 |
12V Outlet | |
Marine Speakers | 6 Wet Sounds |
Stern Stereo Remote | |
Stern Speakers | |
3 position "No Wake Mode™" Control | |
Cruise Assist | |
Compass | in Connext Touchscreen |
Depth Finder | |
Water Temperature | |
Electronic Speedometer | |
Fuel Management System | |
Dual Battery Setup | |
Electronic Power Steering (EPS) | |
Rack & Pinion Steering | |
Quiet Cruise Technology | |
Articulating Keel System |
Yamaha Marine Engine | Twin 4-cylinder, 4-stroke, 1.8 Liter High Output Yamaha Marine Engines |
---|---|
Displacement (per engine) | 1812cc |
Fuel Capacity | 70 GAL |
155 MM High-Pressure Pump | |
Pump Clean-out Ports | |
Oil Capacity per Engine | 3.7L |
3-Blade, Stainless Steel Impeller | |
Saltwater Corrosion Resistant Driveline |
Color | ,Black |
---|---|
Stainless Steel Bow Rails | |
Stainless Steel Cleats | 6 Pop-up |
Tow Hook | |
Bimini™ Top | |
Aluminum Folding Wakeboard Tower | |
Wakeboard Racks | Optional |
Windshield Mirror |
Painted Trailer with Swing-away Tongue | |
---|---|
Galvanized Trailer with Swing-away Tongue | Optional (Tandem Axle) |
Spare Tire and Mount | |
Disk Brakes | |
Chrome Wheels & Aluminum Fender Step Plates | |
Lights | |
Safety Chains | |
Adjustable Winch Stand with Strap and Hook | |
Height on Trailer | 11' |
Height on Trailer with Tower Folded | 9' 9" |
Length on Trailer | 22' 5" |
Length on Trailer with Tongue Folded | 22' |
Dry Weight on Trailer | 5254 LBS |

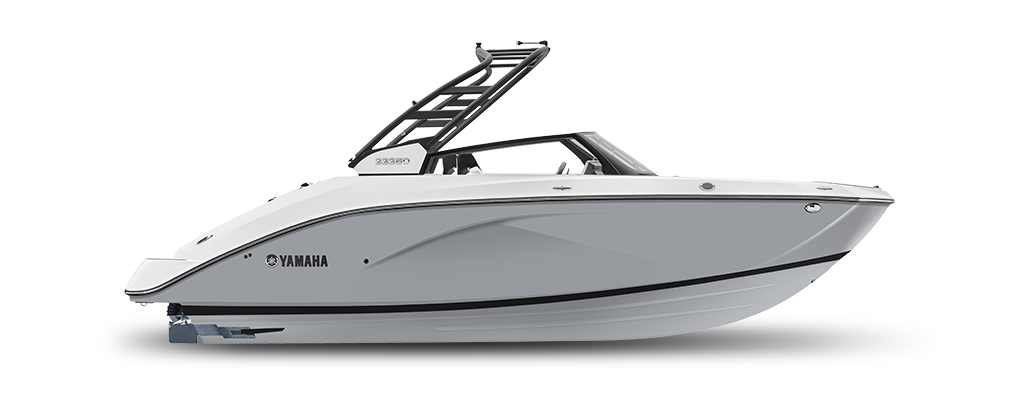

22 Feet of Awesome
From award winning handling technology to Yamaha's most premium feature set, the 222SD is not just a class leader, it's in a class all of its own.

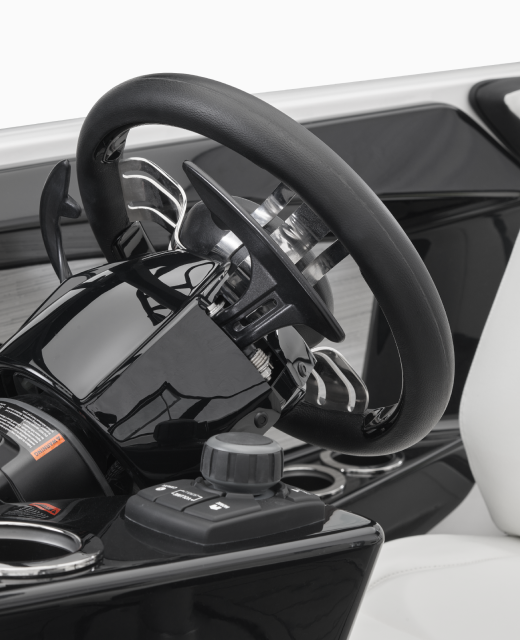

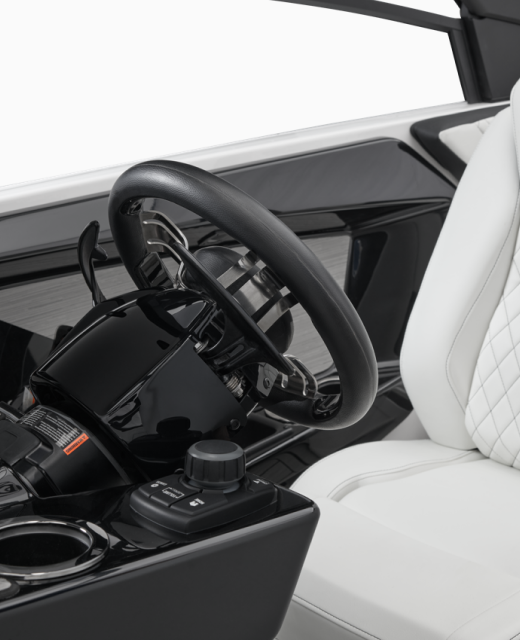

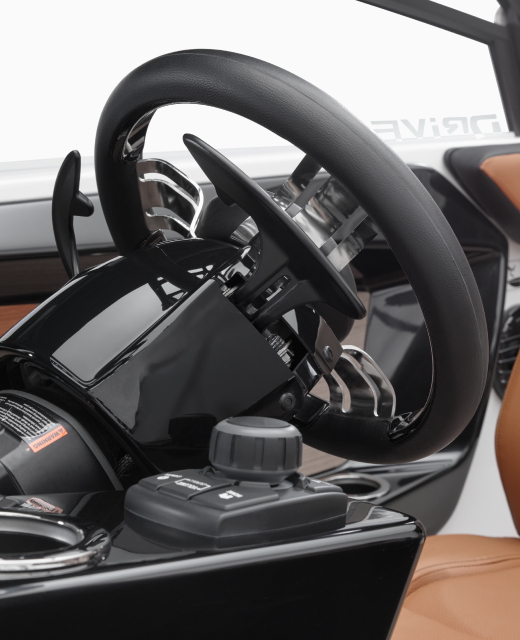

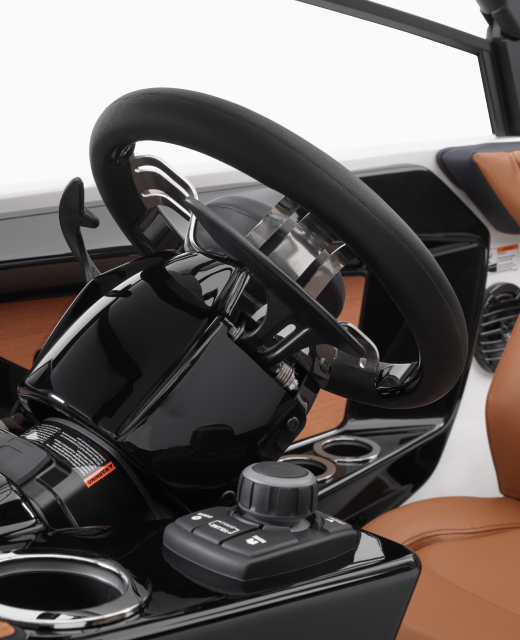

DRiVE Technology
Yamaha's award winning DRiVE technology for enhanced low-speed handling and maneuverability is an industry first.

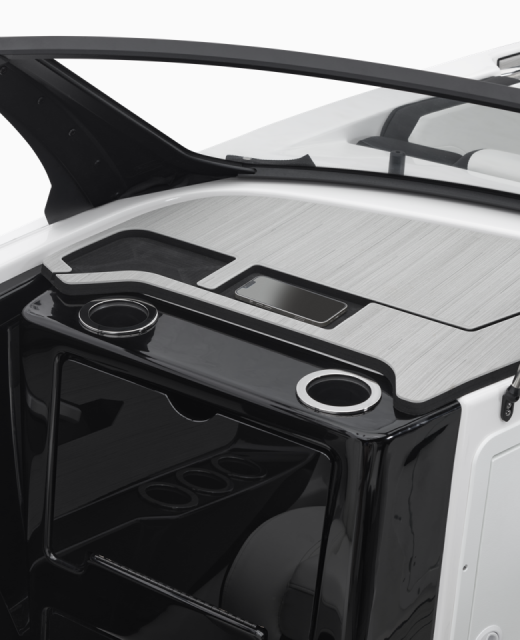

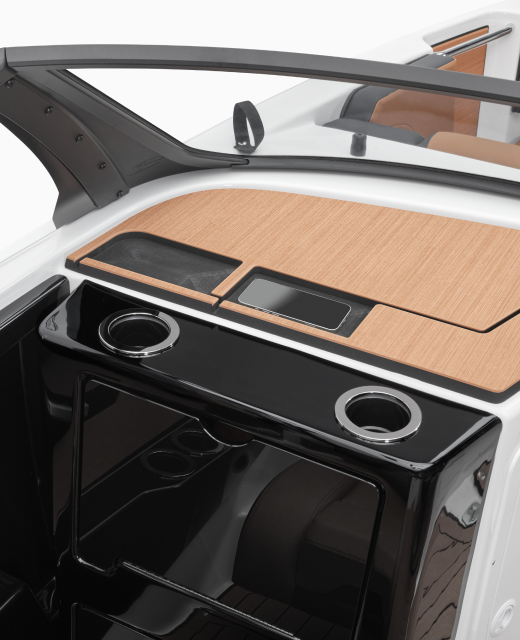

NEW WIRELESS CHARGING
New for Yamaha boats is a smartphone holder with wireless charging at the helm and a wireless charging pad located portside.

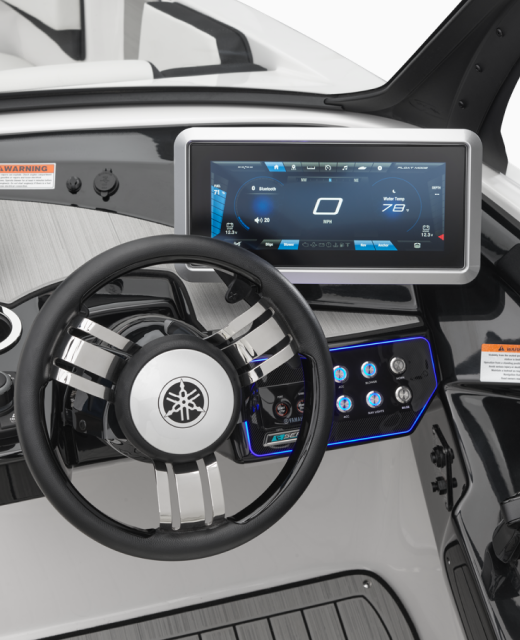

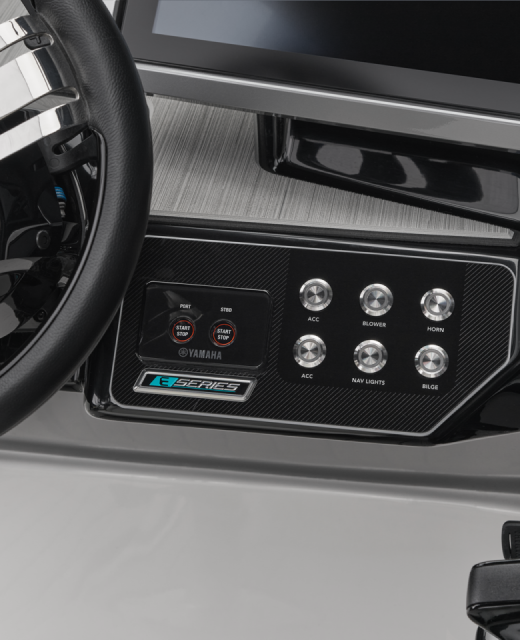

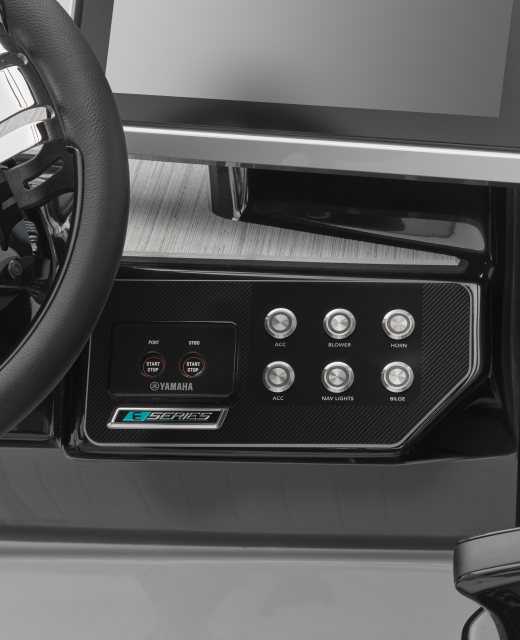

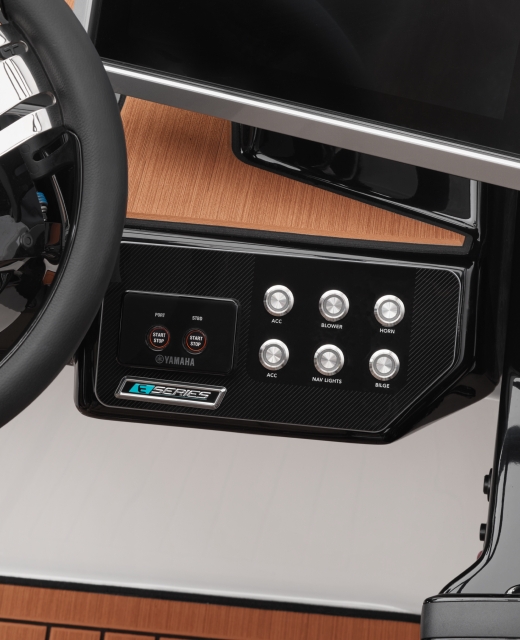

Yamaha E-Series
Features push-button start/stop, RPM engine sync, and single throttle lever pairing.

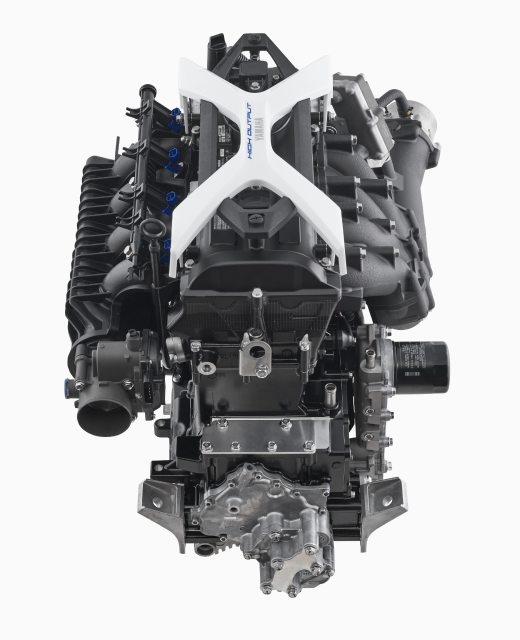

Twin 1.8L Yamaha Marine Engines
Twin normally-aspirated 1.8L engines are powerful, compact and reliable.

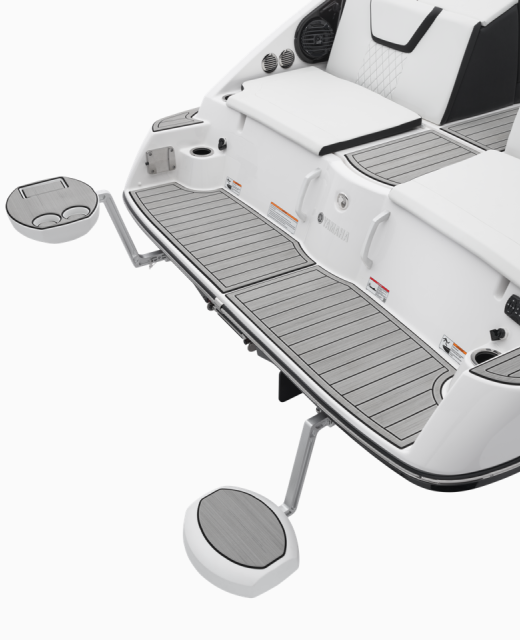

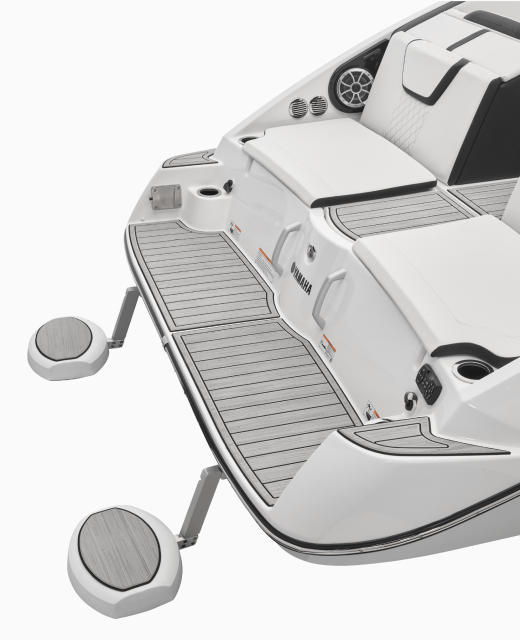

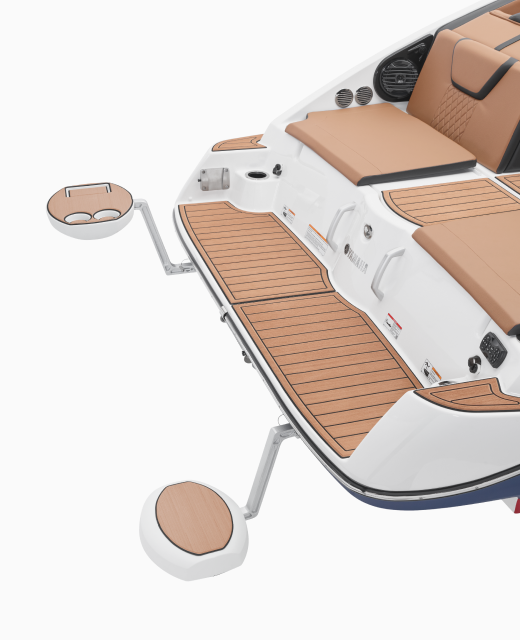

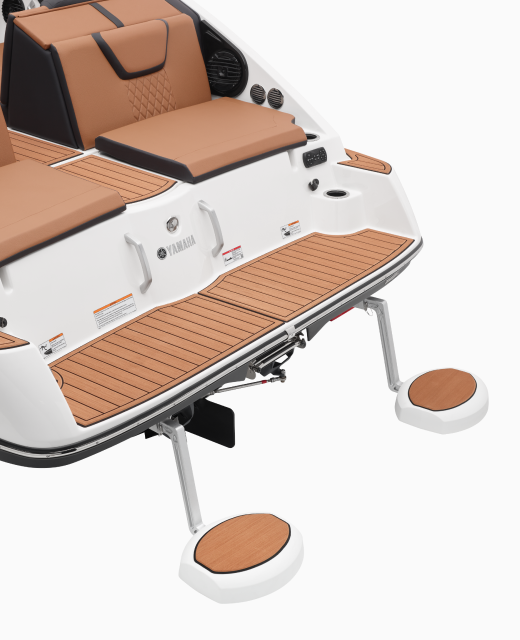

NEW SWIM UP SEATING
First introduced on the 27-foot Series - At anchor, two removable seats can be attached to the stern, providing comfortable in-water seating. All 22-foot runabouts come standard with mounts for optional swim-up seats (sold separately).

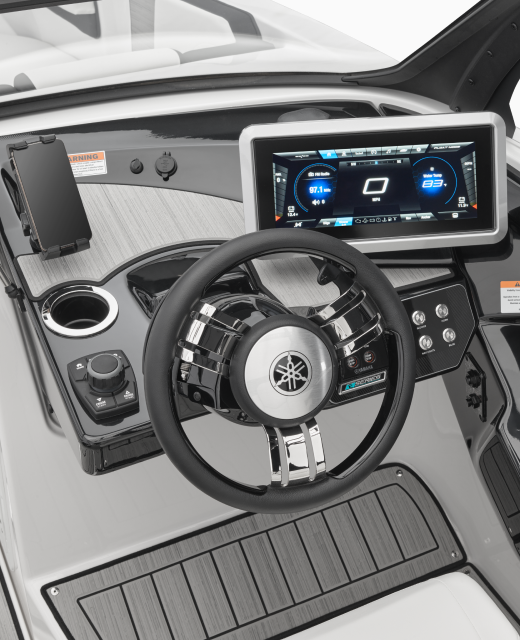

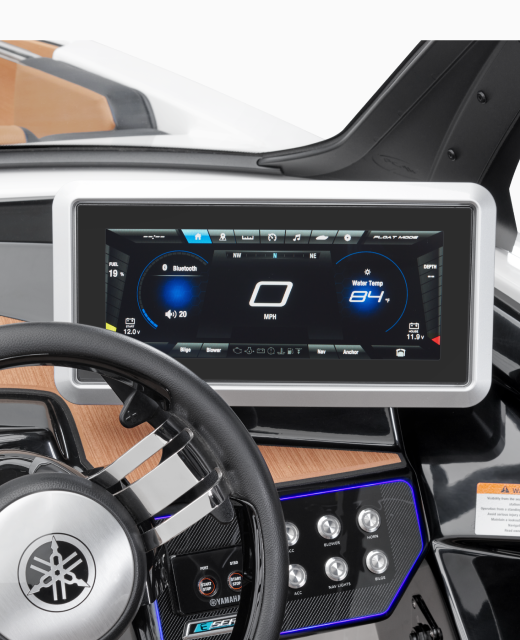

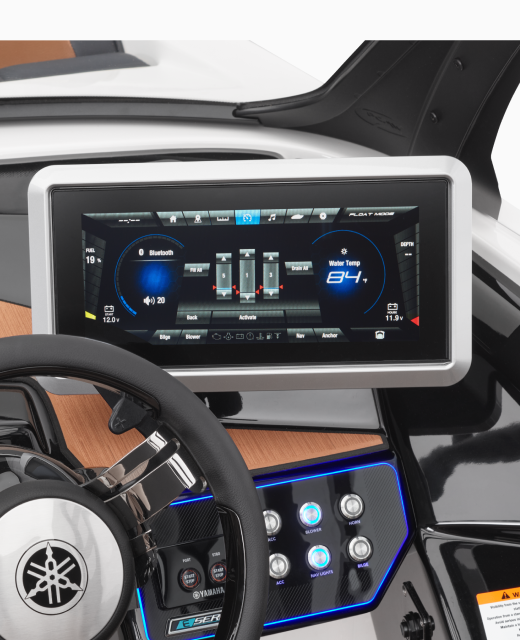

MINIMALISTIC HELM DESIGN WITH CONNEXT
Features 12.3-inch multi-color Connext touchscreen that is the hub for the entertainment functions, GPS mapping, and relevant boat system data when underway.
