Center Console Boats

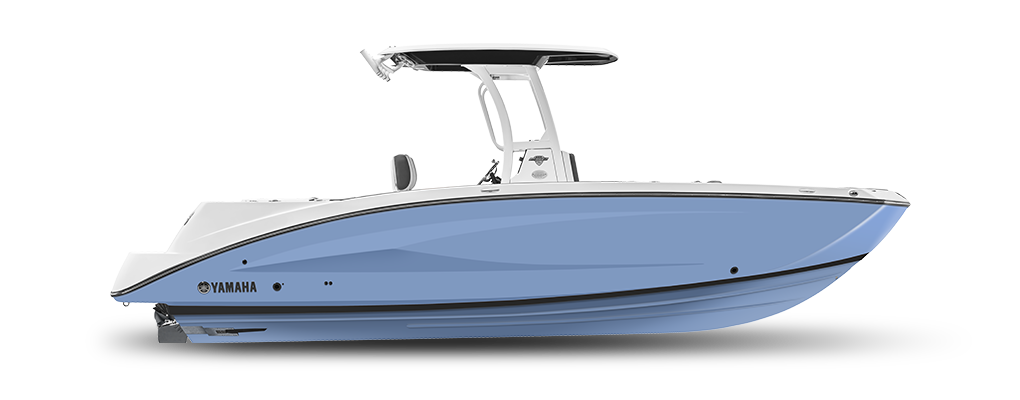

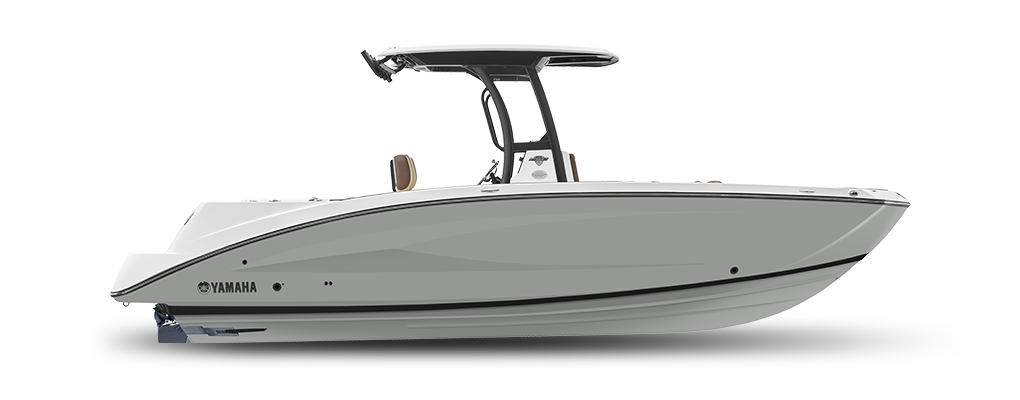

255 FSH Sport E
255 FSH Sport E Full Specifications
Length | 24'6" |
---|---|
Weight | 4,835 LBS |
Beam | 8'6" |
Draft | 22" |
Dead Rise | 20° |
In-Water Height (Bridge Clearance) | 9'2" |
Seating Capacity/Weight Capacity | 12/2,700 LBS |
Storage Capacity | 543 GAL |
Removable Dinette Table with Pedestal | N/A |
---|---|
Bow Filler Inserts for Multiple Seating Configurations | |
Integrated Drink Holders | 2 Chrome |
Tilt Steering | |
Upgraded Upholstery | |
Glove Box | |
Enclosed Head Compartment | N/A |
Dedicated Anchor and Rope Locker | |
Cup Holders | Chrome |
Insulated Fish Box | |

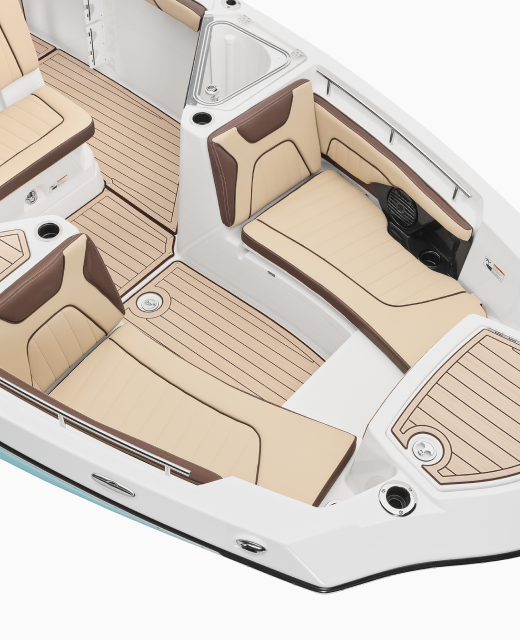

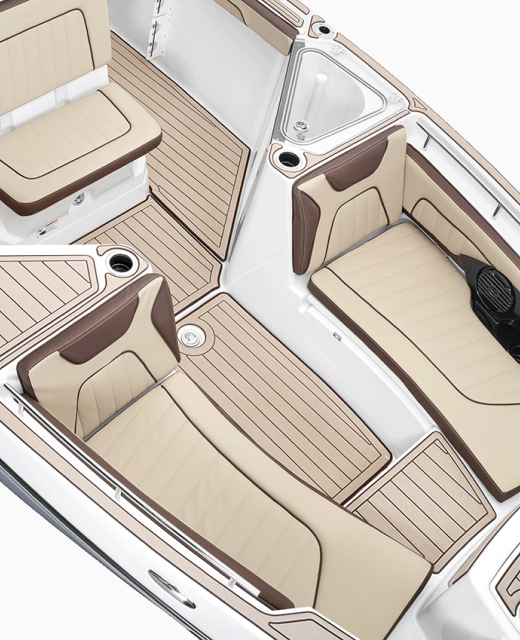

Upholstered Bow Seating with Storage | |
Bow Filler Platform/Table | |
Bow Cushion On Insulated Fish Box | |
Storage Pod | |
Portside Transparent Livewell/Cooler | |
Integrated Storage Pod Rod/Cup Holder | N/A |
In Floor Storage w/ Dedicated Space for 5-Gallon Bucket | |
Front Console Seat | |
Lockable Console Compartment/Changing Area with Light | |
Courtesy Lights | 2 |
Spreader lights (Hardtop) | 2 |
Map lights red (Hardtop) | 2 |
Glass Windshield | |
Fixed Phone Holder | |
T-top Glove Box | |
Lockable Helm Glove Box | |
Stainless Steel Steering Wheel | w/ knob |
Side Console Rod Storage | 6 |
Gunwale Rod Storage | 6 |
Horizontal Rod Storage | 8 |
T-Top Rod Holders | 5 |
Under-gunwale Gaff/Brush Storage | 2 |
Leaning Post | Upgraded w/ Flip-up Bolster |
Cooler w/ Storage Under Leaning Post | |
Jump Seats | Folding w/ removable backrests |
Gunwale Padding | (optional) |
Slip-Resistant/Easy-Clean Floor | |
Snap-in Teak Style Marine Mat Flooring | |
Stainless Steel Corrosion Resistant Hardware |

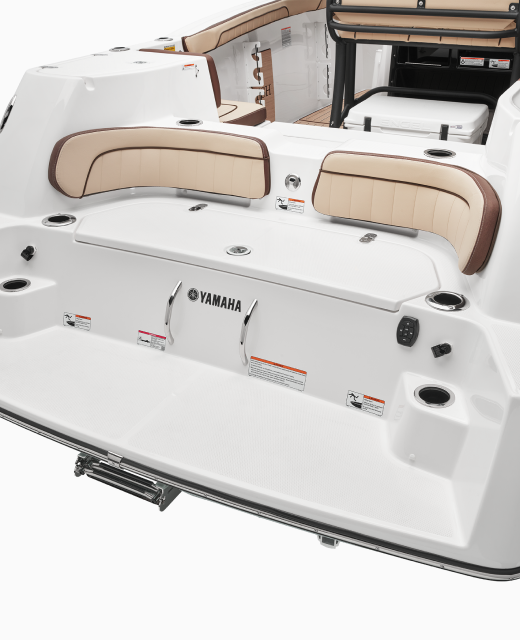

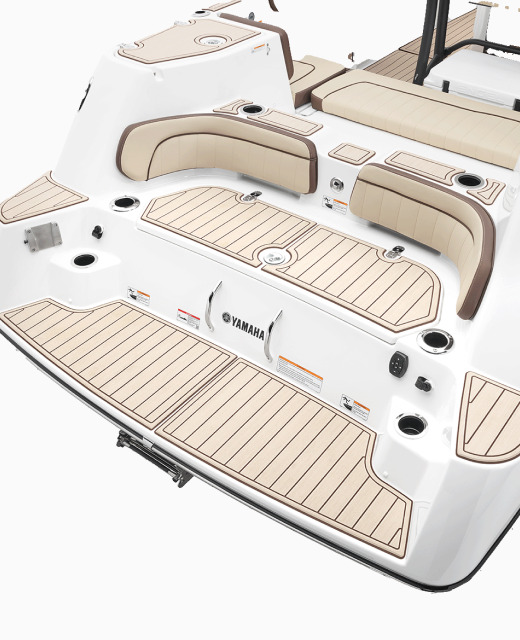

Integrated Swim Platform | |
---|---|
Upholstered Cushioned Backrests | Upgraded Upholstery |
12-volt Outlet | |
Stainless Steel Telescopic Reboarding Ladder | |
Stern (Wet) Storage | |
Table Mount / Table | |
Pod drop in "tackle tray" | |
Underwater Lights | 2 |
Connext with Touchscreen | 7" Touchscreen Display |
---|---|
Yamaha Drive Control | |
Throttle by Wire Technology | |
Push Button Start/Stop | |
USB Charge Ports | 1 |
12V Outlet | |
Marine Speakers | Wetsounds Speakers (6) |
Stern Stereo Remote | |
3 position "No Wake Mode™" Control | |
Cruise Assist | |
Depth Finder | |
Water Temperature | |
Fuel Management System | |
Dual Battery Setup | |
Rack & Pinion Steering | |
Quiet Cruise Technology | |
Articulating Keel System | |
Simrad Electronics | 12" Touchscreen Display |
Marine Stereo with Bluetooth, USB & AUX | Enovation |
Compass (in-dash, analog) | |
Aerated Livewell | 30 GAL |
Electric Raw Water Washdown System with 4.5gph | |
Custom Trolling Motor Mount | |
Through-hull Transducer | |
Hour Meter | |
Warnings (Voltage, Fuel, Overheat) | |
Reverse RPM Control |
Yamaha Marine Engine | Twin 1.8 Liter, Super Vortex High Output Yamaha Marine Engines |
---|---|
Displacement (per engine) | 1812cc |
Fuel Capacity | 111 GAL |
160 MM High-Pressure Pump | |
Pump Clean-out Ports | |
Oil Capacity per Engine | 5.3L |
3-Blade, Stainless Steel Impeller | |
Saltwater Corrosion Resistant Driveline |

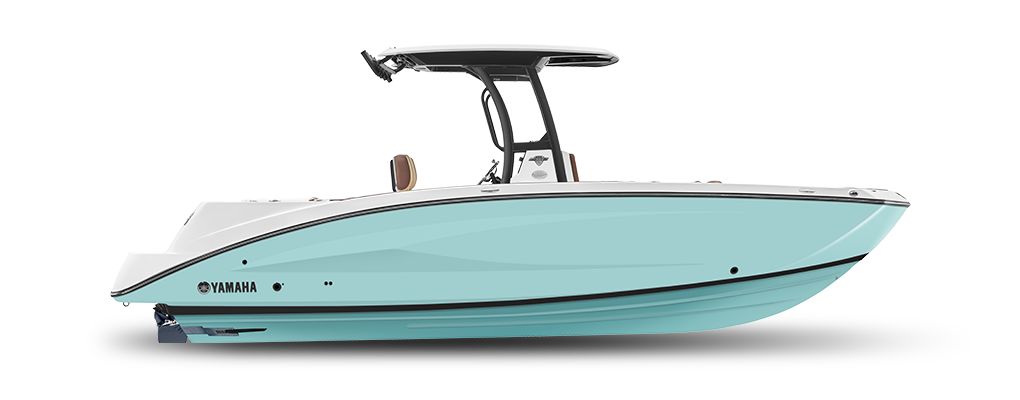

Color | Black,Teal |
---|---|
Tow Hook | |
Stainless Steel Rub Rail | |
Flush Mount Pop-up Cleats | Chrome Plated Pop-up (6) |
Stainless Steel Horn on Deck Bow | |
Stainless Steel Nav Lights on Deck | |
Outrigger-ready Hard T-Top with Rod Holders (5) |
Painted Trailer with Swing-away Tongue | Tandem Axle |
---|---|
Galvanized Trailer with Swing-away Tongue | N/A |
Aluminum Trailer with Swing-away Tongue | OPTIONAL (Tandem Axle) |
Disk Brakes | |
Lights | |
Safety Chains | |
Adjustable Winch Stand with Strap and Hook | |
Height on Trailer | 117" |
Height on Trailer with Tower Folded | - |
Length on Trailer | 315" |
Length on Trailer with Tongue Folded | 296" |
Dry Weight on Trailer | 6,025 LBS |
Power Your Passion
With its twin 1.8L supercharged engines, and innovative all new center console design, the 255 FSH Sport E is built for those who dream big.

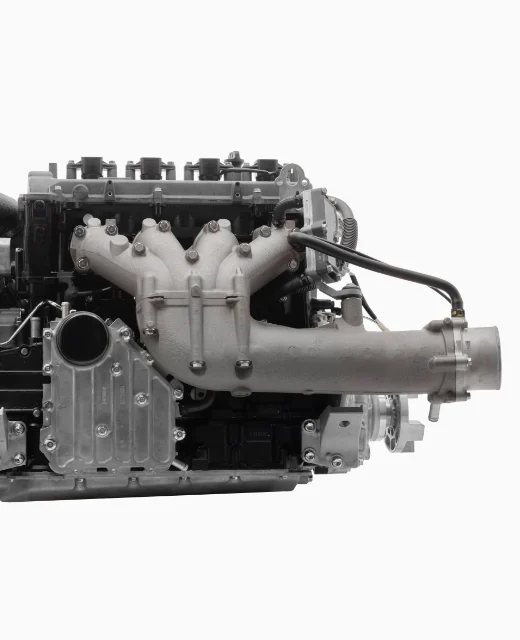

Twin 1.8L Yamaha SVHO Engines
Supercharged and intercooled, Yamaha's SVHO engines produces 500hp channeled through Yamaha's renowned Jet Propulsion system.

Spacious Helm Layout
Featuring 7-inch Connext 3.0 touchscreen and 12-inch Simrad™ electronics, glass windshield, stainless steel sports steering wheel, and locking glove box.

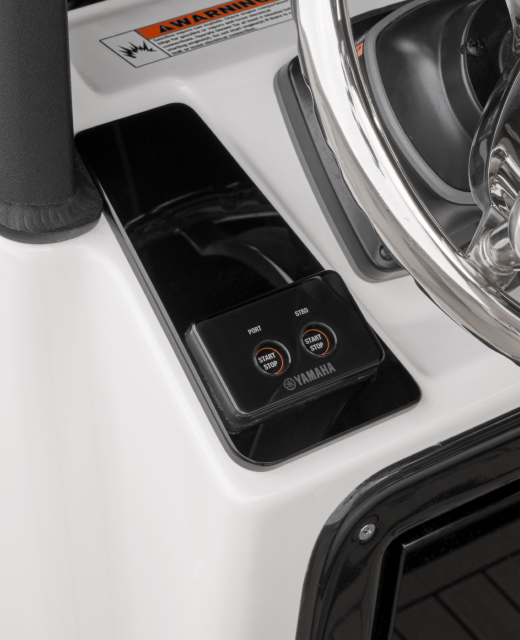

Yamaha E-Series
Features push-button start/stop, RPM engine sync, and single throttle lever pairing.

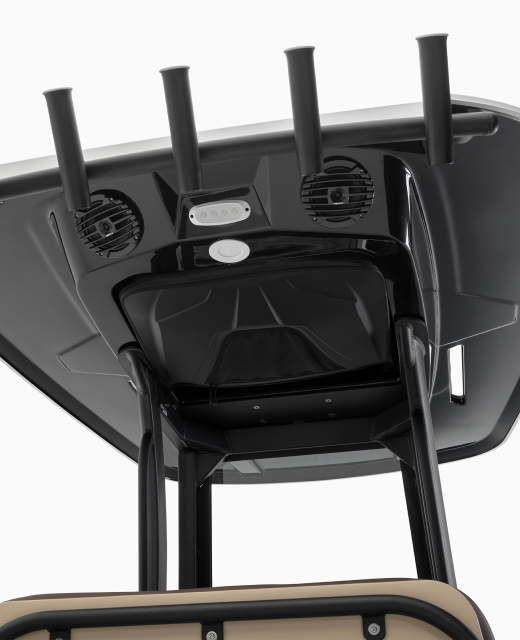

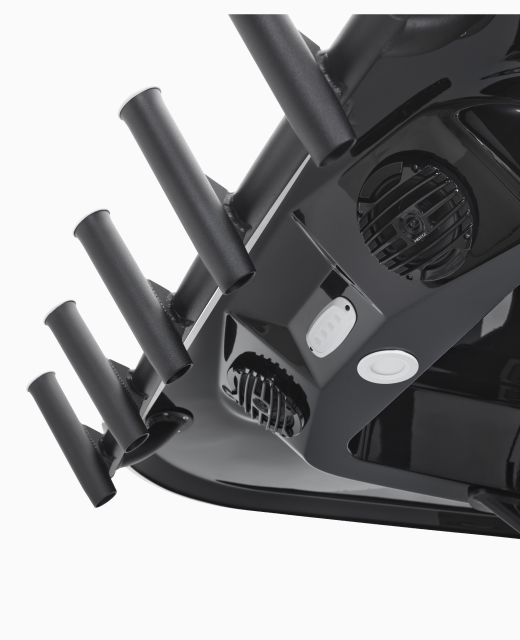

Hardtop Tower
Finished fiberglass hard top with integrated stereo speakers and LED lighting.

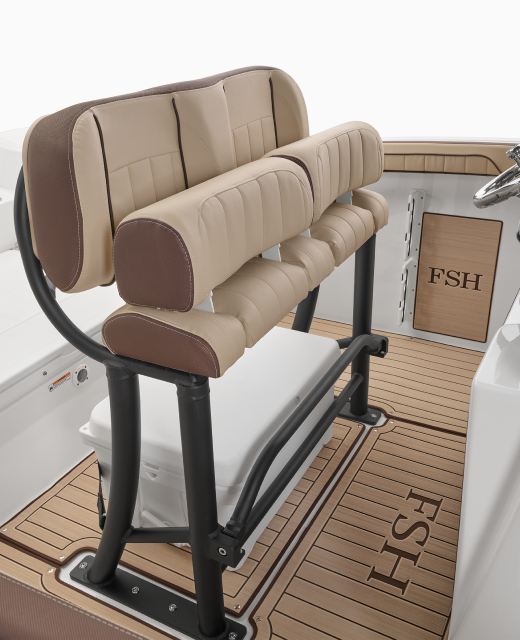

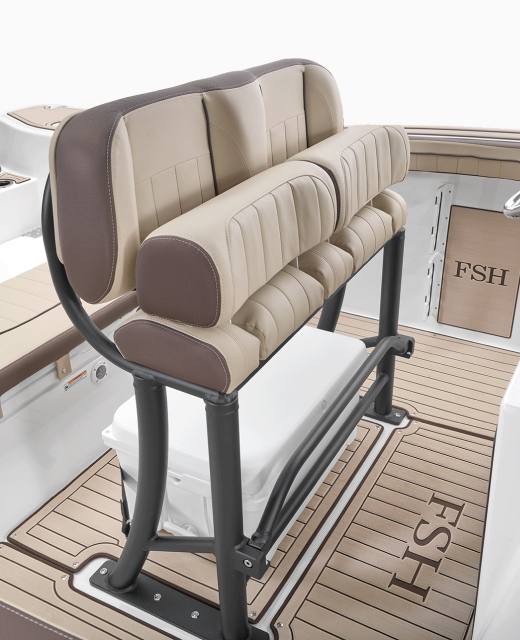

Custom Leaning Post
Completing the helm is comfortable leaning post seating for two with multiple driving options.

Versatile Cockpit with Livewell
Features a transparent live bait well located portside and a large storage pod topped with padded marine mat adjacent on the starboard side.
