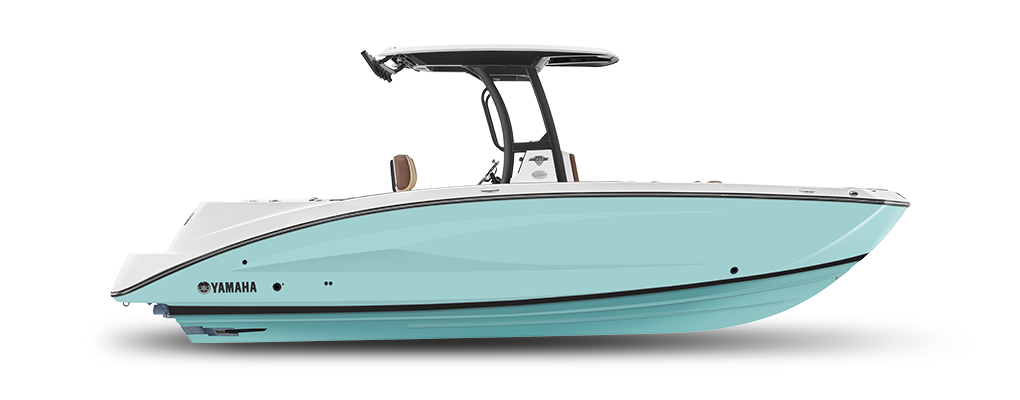

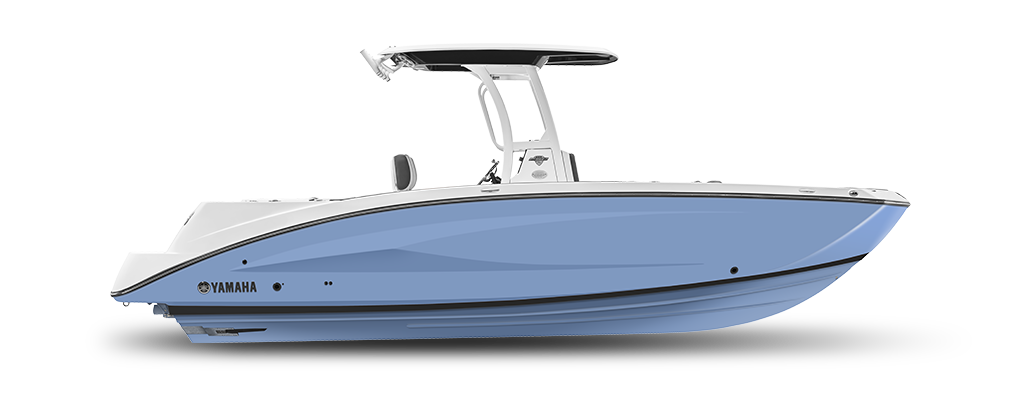

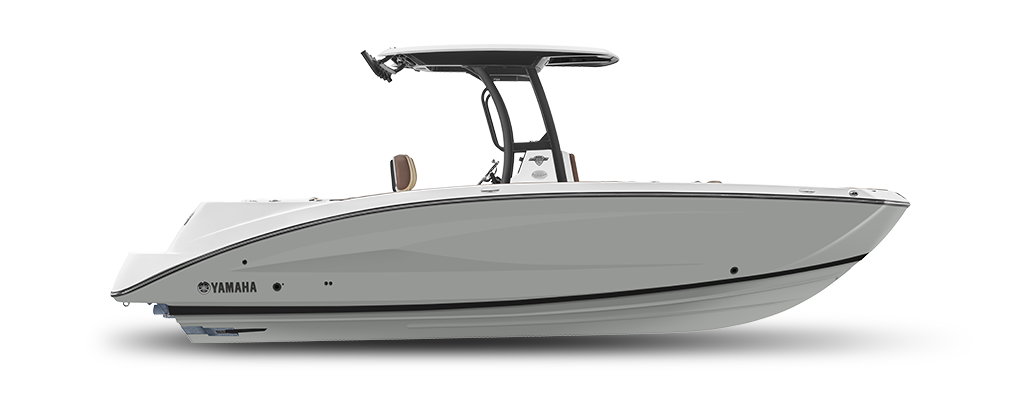

![Mist Gray 255 FSH Sport H_Profile-A.png](/globalassets/media/my24/boats/5_multi-use-images/boat-profiles-png/profiles-255fsh-sport-h/255-fsh-sport-h_profile-a.png)

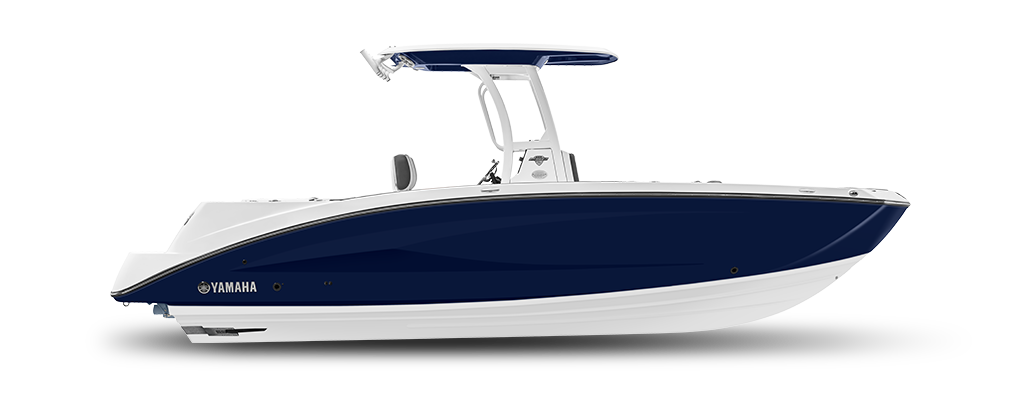

![Powder Blue 255 FSH Sport H_Profile-B.png](/globalassets/media/my24/boats/5_multi-use-images/boat-profiles-png/profiles-255fsh-sport-h/255-fsh-sport-h_profile-b.png)
255 FSH Sport H Full Specifications
Length | 24' 6" |
---|---|
Weight | 4,835 LBS |
Beam | 8' 6" |
Draft | 22" |
Dead Rise | 20° |
In-Water Height (Bridge Clearance) | 9' 2" |
Seating Capacity/Weight Capacity | 12/2,700 LBS |
Storage Capacity | 543 GAL |
Tilt Steering | |
---|---|
Upgraded Upholstery | |
Dedicated Anchor and Rope Locker | |
Cup Holders | Chrome |
Insulated Fish Box | |

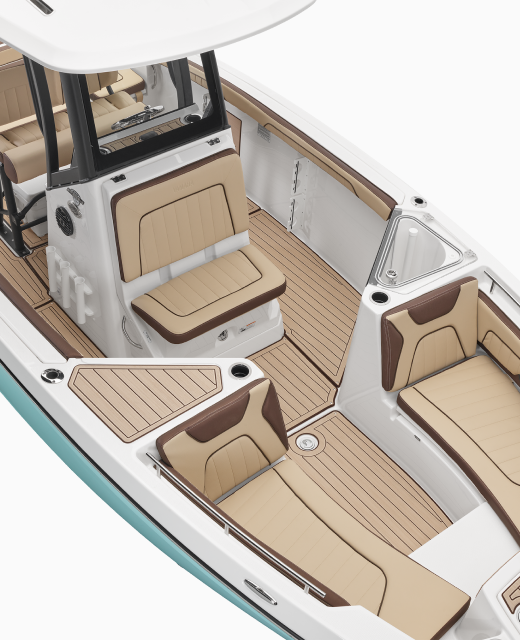

Upholstered Bow Seating with Storage | |
Bow Filler Platform/Table | |
Storage Pod | w/ Plano tackle boxes |
Portside Transparent Livewell/Cooler | |
In Floor Storage w/ Dedicated Space for 5-Gallon Bucket | |
Front Console Seat | |
Lockable Console Compartment/Changing Area with Light | w/ curtain |
Courtesy Lights | 2 |
Spreader lights (Hardtop) | 1 |
Map lights red (Hardtop) | 1 |
Glass Windshield | |
Fixed Phone Holder | w/ wireless charging |
Lockable Helm Glove Box | |
Stainless Steel Steering Wheel | w/ knob |
Side Console Rod Storage | 6 |
Gunwale Rod Storage | 6 |
Horizontal Rod Storage | 8 |
T-Top Rod Holders | 5 |
Leaning Post | Upgraded w/ Flip-up Bolster |
Cooler w/ Storage Under Leaning Post | |
Jump Seats | Folding w/ removable backrests |
Gunwale Padding | Upholstered |
Slip-Resistant/Easy-Clean Floor | |
Snap-in Teak Style Marine Mat Flooring | |
Stainless Steel Corrosion Resistant Hardware |
Integrated Swim Platform | |
---|---|
Upholstered Cushioned Backrests | Upgraded Upholstery |
Stainless Steel Telescopic Reboarding Ladder | |
Stern (Wet) Storage | |
Stern Livewell | 30 GAL Aerated |
Table Mount / Table | |
Pod drop in "tackle tray" | |
Integrated Drink Holders | 2 Chrome |
Helm Master EX | |
---|---|
Connext with Touchscreen | 7" Touchscreen Display |
Yamaha Drive Control | |
Throttle by Wire Technology | |
Push Button Start/Stop | |
Marine Stereo | |
12V Outlet | |
Marine Speakers | Wetsounds Speakers (6) |
Stern Stereo Remote | |
3 position "No Wake Mode™" Control | |
Cruise Assist | |
Depth Finder | |
Water Temperature | |
Fuel Management System | |
Dual Battery Setup | |
Rack & Pinion Steering | |
Quiet Cruise Technology | |
Articulating Keel System | |
Simrad Electronics | 12" Touchscreen Display |
Compass (in-dash, analog) | |
Electric Raw Water Washdown System with 4.5gph | |
Fresh Water Wash Down System | 8 GAL |
Custom Trolling Motor Mount | |
Through-hull Transducer | |
Hour Meter | |
Warnings (Voltage, Fuel, Overheat) | |
Reverse RPM Control |
Yamaha Marine Engine | Twin Supercharged 4-cylinder, 4-stroke, Super Vortex High Output Yamaha Marine Engines |
---|---|
Displacement (per engine) | 1812cc |
Fuel Capacity | 111 GAL |
160 MM High-Pressure Pump | |
Pump Clean-out Ports | |
Oil Capacity per Engine | 3.7L |
3-Blade, Stainless Steel Impeller | |
Saltwater Corrosion Resistant Driveline |
Color | Mist Gray,Powder Blue |
---|---|
Tow Hook | |
Stainless Steel Rub Rail | |
Flush Mount Pop-up Cleats | Chrome Plated Pop-up (6) |
Stainless Steel Horn on Deck Bow | |
Stainless Steel Nav Lights on Deck | |
Outrigger-ready Hard T-Top with Rod Holders (5) |
Painted Trailer with Swing-away Tongue | Tandem Axle |
---|---|
Galvanized Trailer with Swing-away Tongue | N/A |
Aluminum Trailer with Swing-away Tongue | OPTIONAL (Tandem Axle) |
Disk Brakes | |
Lights | |
Safety Chains | |
Adjustable Winch Stand with Strap and Hook | |
Height on Trailer | 11'5'' |
Height on Trailer with Tower Folded | - |
Length on Trailer | 26'3'' |
Length on Trailer with Tongue Folded | 24'7'' |
Dry Weight on Trailer | 6,025 LBS |
HELM MASTER EX
ALL NEW 255 FSH SPORT H
New for 2024 is the 255 FSH Sport H featuring Yamaha's Helm Master® EX joystick control. With this innovative addition, you can now experience seamless and precise low-speed maneuvering like never before.
![Yamaha 2021 255 fsh sport e feature svho marine engine](/globalassets/z-old/_boats/all-boats/center-console-boats/255-fsh-sport-e-series/2.-features-gallery/yamaha-boats-2021-255-fsh-sport-e-feature-svho-yamaha-marine-engine.jpg)

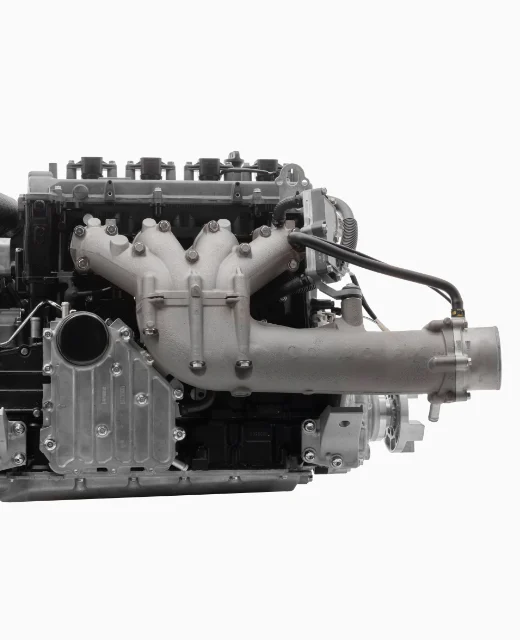

Twin 1.8L Yamaha SVHO Engines
Supercharged and intercooled, Yamaha's SVHO engines produces 500hp channeled through Yamaha's renowned Jet Propulsion system.
![255 FSH Sport H-SPACIOUS HELM LAYOUT.png](/globalassets/media/my24/boats/3_pdps/center-console-fsh/255-fsh-sport-h/features-255-fsh-sport-h/255-fsh-sport-h-spacious-helm-layout.png)

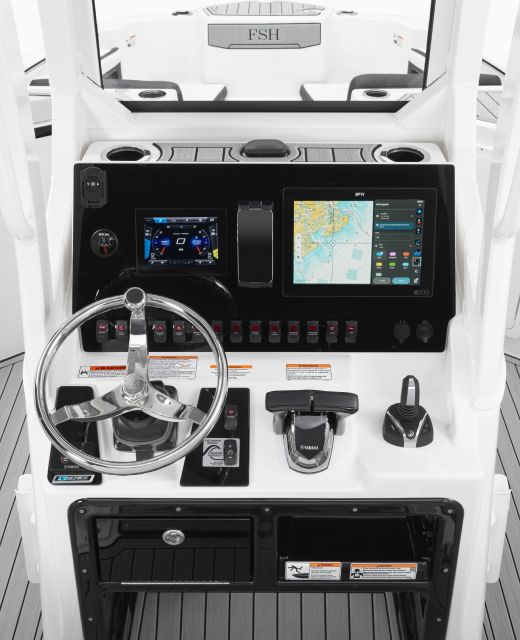

Helm Master EX Technology
Yamaha’s new 255 FSH Sport H adds Yamaha's Helm Master® EX joystick control for smooth, precise low-speed maneuvering. Helm Master EX allows the driver to move the boat forward, reverse, laterally, and rotationally with just one hand on the joystick.
![255 FSH Sport H-YAMAHA E-SERIES.png](/globalassets/media/my24/boats/3_pdps/center-console-fsh/255-fsh-sport-h/features-255-fsh-sport-h/255-fsh-sport-h-yamaha-e-series.png)

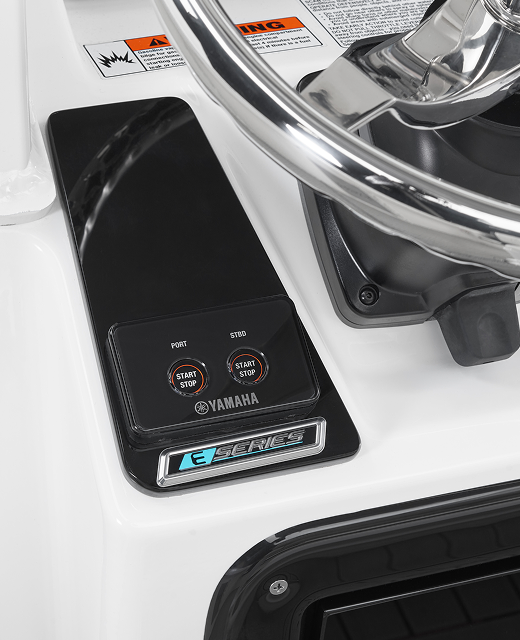

Yamaha E-Series
Features push-button start/stop, RPM engine sync, and single throttle lever pairing.
![255 FSH Sport H-HARDTOP TOWER.png](/globalassets/media/my24/boats/3_pdps/center-console-fsh/255-fsh-sport-h/features-255-fsh-sport-h/255-fsh-sport-h-hardtop-tower.png)

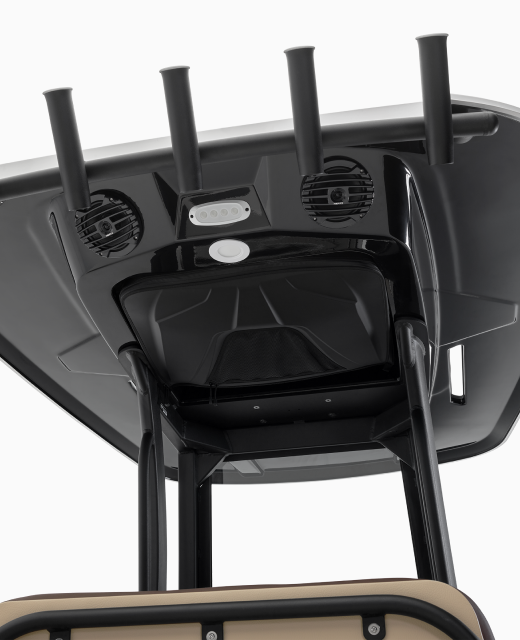

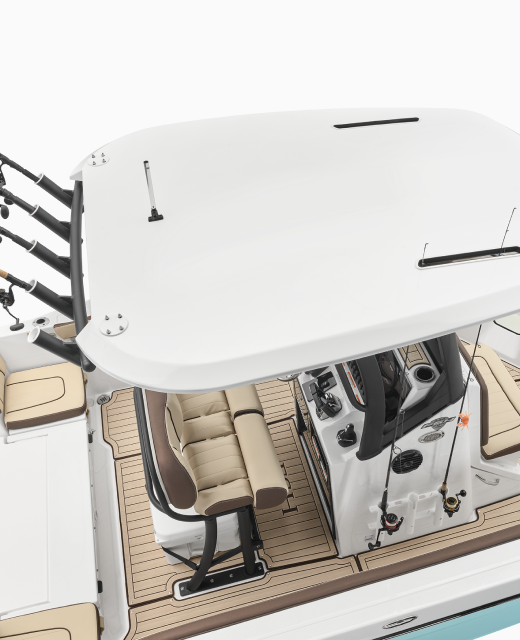

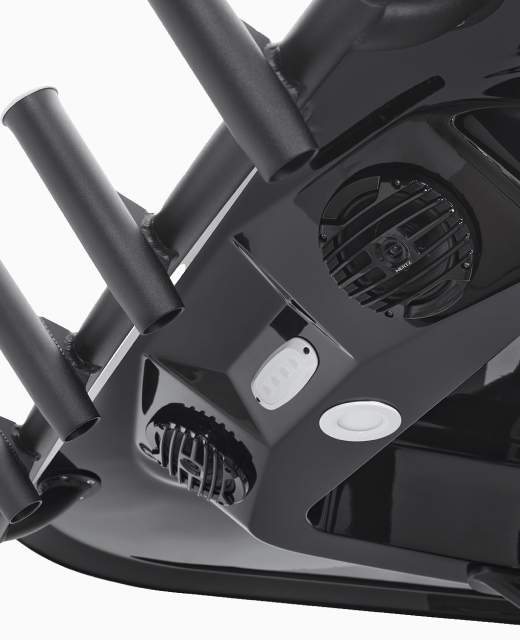

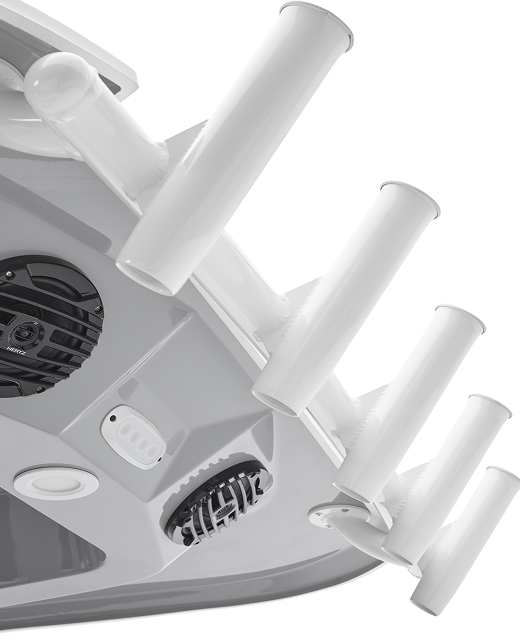

Hardtop Tower
Finished fiberglass hard top with integrated stereo speakers and LED lighting.
![255 FSH Sport H-CUSTOM LEANING POST.png](/globalassets/media/my24/boats/3_pdps/center-console-fsh/255-fsh-sport-h/features-255-fsh-sport-h/255-fsh-sport-h-custom-leaning-post.png)

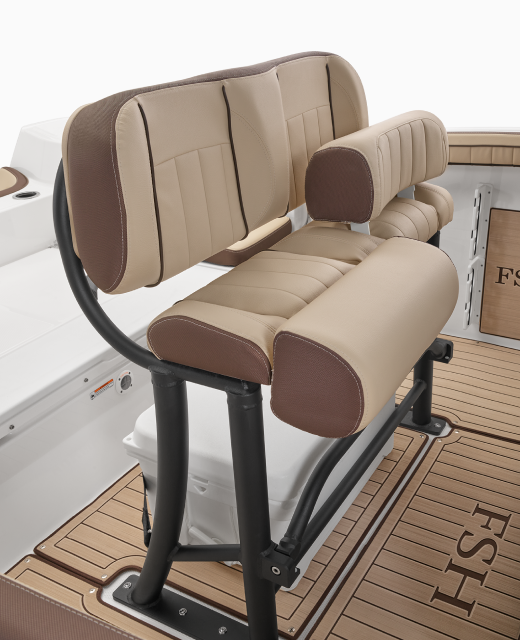

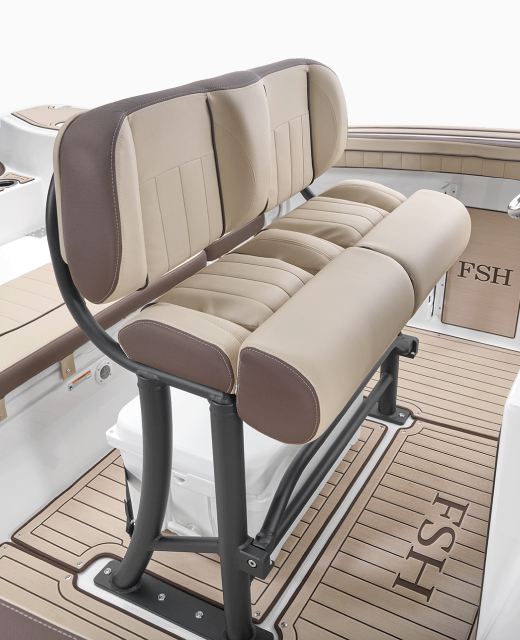

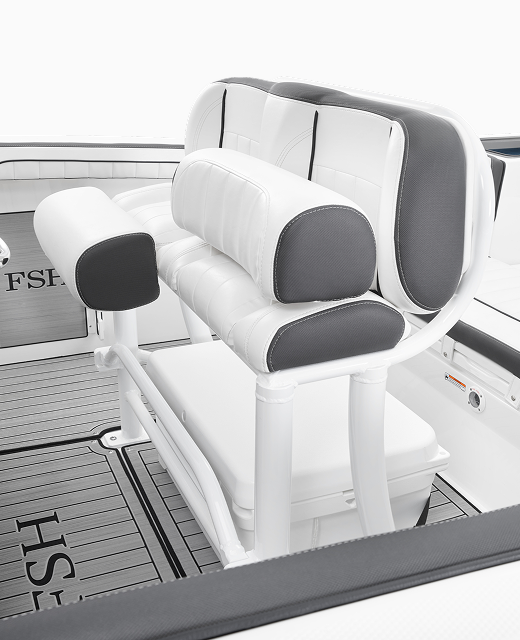

Custom Leaning Post
Completing the helm is comfortable leaning post seating for two with multiple driving options.
![255 FSH Sport H-EXTENDED BOW SEATING.png](/globalassets/media/my24/boats/3_pdps/center-console-fsh/255-fsh-sport-h/features-255-fsh-sport-h/255-fsh-sport-h-extended-bow-seating.png)

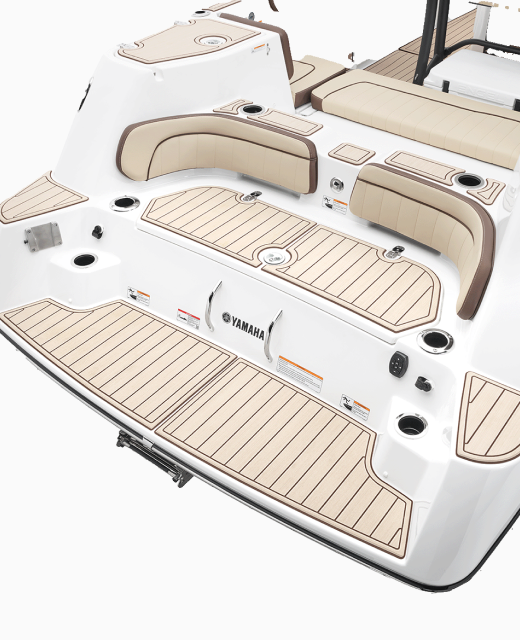

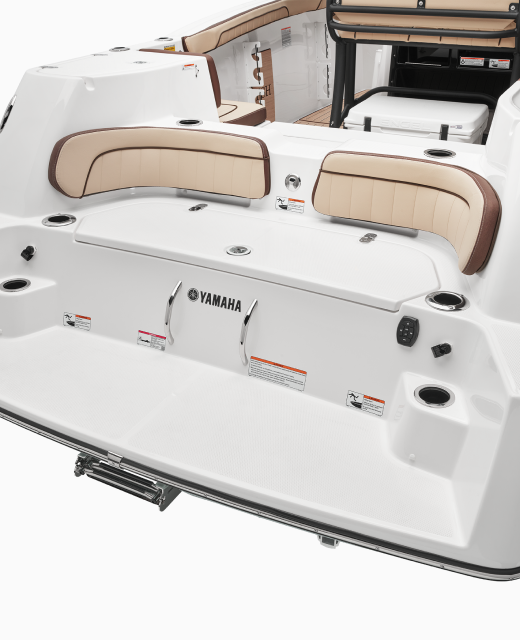

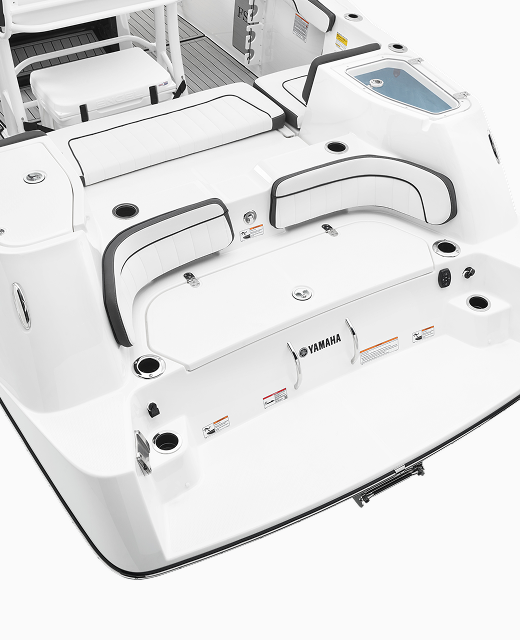

Yamaha's Signature Swim Platform
Includes beverage mounts, backrest cushions and access to the exclusive pump cleanout ports.
