255XE Seating Chart Area Guide
Download255XE Full Specifications
Length | 24' 6" |
---|---|
Weight (lbs) | 4,506 |
Beam | 8' 6" |
Draft | 19" |
Dead Rise | 20° |
In-Water Height (Bridge Clearance) | 8' 1" |
Fuel Tank Capacity (gal) | 75 |
Seating Capacity/Weight Capacity | 12 |
Storage Capacity (gal) | 613 |
Height on Trailer | 11' |
Height on Trailer with Tower Folded | 9'11" |
Length on Trailer | 26'3" |
Length on Trailer with Tongue Folded | 24'8" |
Dry Weight on Trailer (lbs) | 5870 |
Yamaha Marine Engine | Twin Supercharged 4-cylinder, 4-stroke, Super Vortex High Output Yamaha Marine Engines |
Snap-In Custom Cut Marine-Grade Mat | |
---|---|
Ski Locker | |
Removable Dinette Table with Pedestal | Mount at Stern |
Bow Filler Inserts for Multiple Seating Configurations | |
Hinged Seat Cushions | |
Tilt Steering | |
Upgraded Steering Wheel | |
Upgraded Upholstery | |
Chil-Cool Vinyl Upholstery | |
Adjustable Captain's chair with Flip-Up Bolster | |
Passenger-side Captain's Chair | |
Portside Entertainment Area | |
Lockable Passenger Side Glove Box | |
Walk-through Bow Door | |
Integrated Removable Cooler | |
Enclosed Head Compartment | w/ Wardrobe Storage Features, Upholstered Interior & Light |
Galley with Stow-in-Place Table and Storage | |
Docking Lights | |
Courtesy Deck Lighting | |
Courtesy Tower Lighting | |
Dedicated Anchor and Rope Locker | |
Bow Reboarding Ladder | |
Upgraded Aluminum Handles & Accents | |
Cockpit Drainage System (CDS) | |
LED Accent Lighting |
Integrated Swim Platform | |
---|---|
Upholstered Cushioned Seats | |
Upholstered Cushioned Backrests | Articulating |
12-volt Outlet | |
Stainless Steel Telescopic Reboarding Ladder | |
Dinette Table Mount | |
Custom Cut Marine-Grade Mat | |
Stern (Wet) Storage |
Connext Screen (in) | 12.3 |
---|---|
Display w/ Maps | |
Yamaha E-Series Features | |
Drive-By-Wire Technology | |
Helm Switch Panels | Blue LED Lit |
Wireless Charging Points | 1 |
Marine Speakers | (7) Premium Hertz Speakers |
Tower Speakers | (2) Sport Grill Hertz |
Stern Stereo Remote | |
Stern Speakers | |
3 position "No Wake Mode™" Control | |
Cruise Assist | |
Battery Setup | Dual |
Rack & Pinion Steering | |
Quiet Cruise Technology | |
Integrated Ballast System | |
Toe-in Jet Nozzle Position | |
Integrated Electric WakeBooster | |
Articulating Keel System | |
Underwater Light |
Displacement (per engine) | 1812cc |
---|---|
Fuel Capacity | 75 GAL |
Recommended Fuel | Premium Unleaded |
160 MM High-Pressure Pump | |
Pump Clean-out Ports | |
Oil Capacity per Engine (L) | 3.7 |
Stainless Steel Bow Rails | |
---|---|
Stainless Steel Pop-Up Cleats | 7 |
Tow Hook | |
BiminiTM Top | Extended |
Premium Windshield Frame | |
Aluminum Folding Wakeboard Tower with Tow Hook | |
Wakeboard Racks | |
Windshield Mirror | Billet Aluminum |
Yamaha Wake-enhancing Hull |
Painted Trailer with Swing-away Tongue | |
---|---|
Galvanized Trailer with Swing-away Tongue | Optional (Tandem Axle) |
Spare Tire and Mount | |
Height on Trailer | 11' |
Height on Trailer with Tower Folded | 9'11" |
Length on Trailer | 26'3" |
Length on Trailer with Tongue Folded | 24'8" |
Dry Weight on Trailer (lbs) | 5870 |

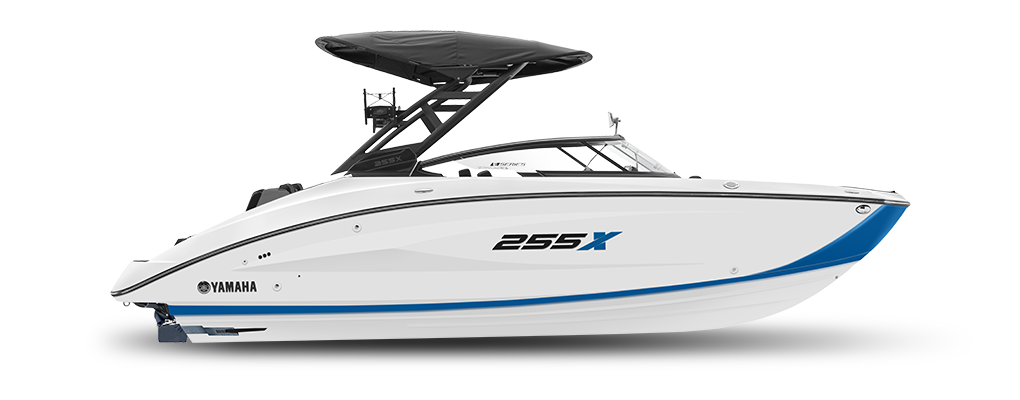

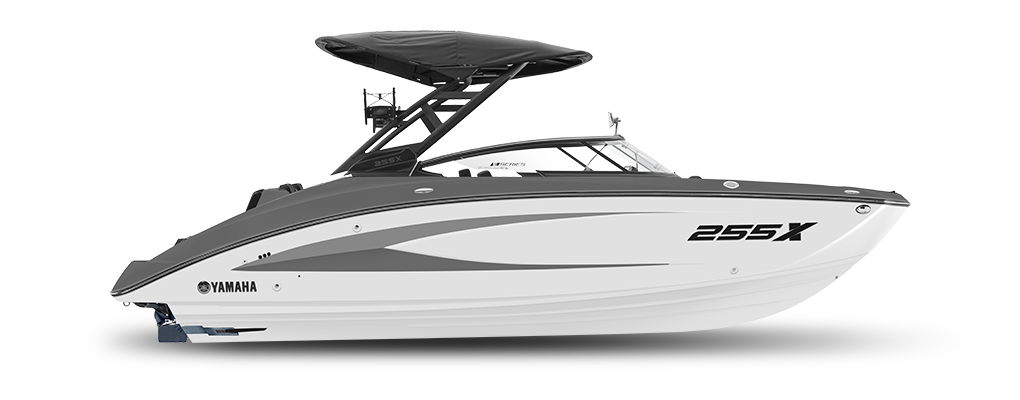

Unleashed Power, Wake Technology, and Style
The 255XE, with a combined 500 horsepower, showcases advanced technology for exceptional wakesurf performance and combines it with sleek, stylish design.

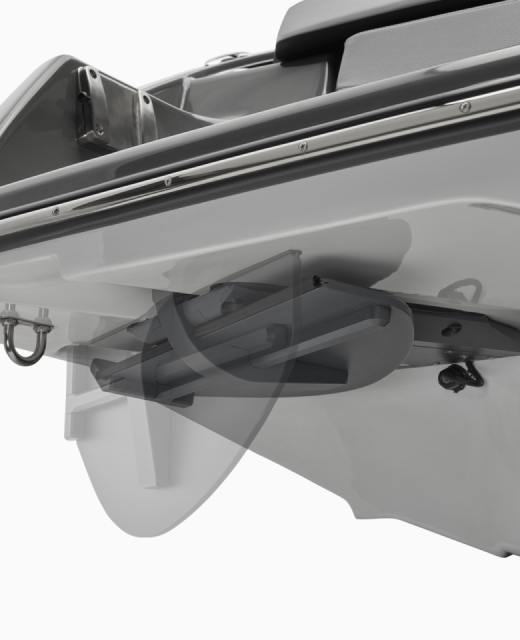

Integrated WakeBooster®
With the push of a button on the Connext® Touchscreen, the integrated WakeBoosters® can be deployed on either side of the boat, creating adrenaline-pumping wakes for wakesurfing.

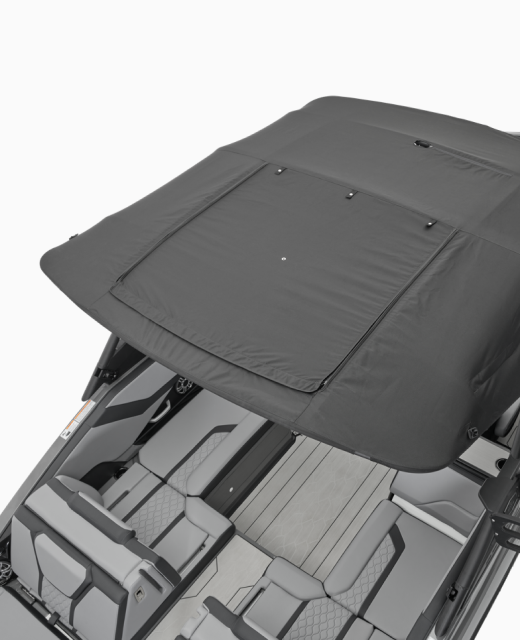

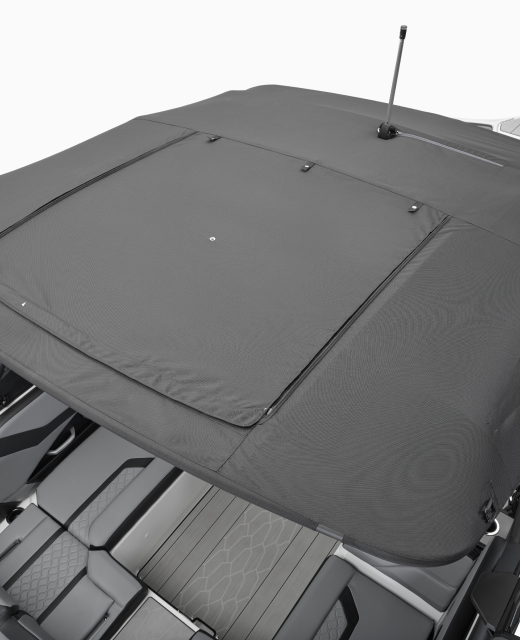

Extended Bimini Top
Enjoy the comfort and protection provided by the premium Bimini top that offers ample shade from the sun, helping to keep you cool on hot days, and provides shelter from unexpected inclement weather.

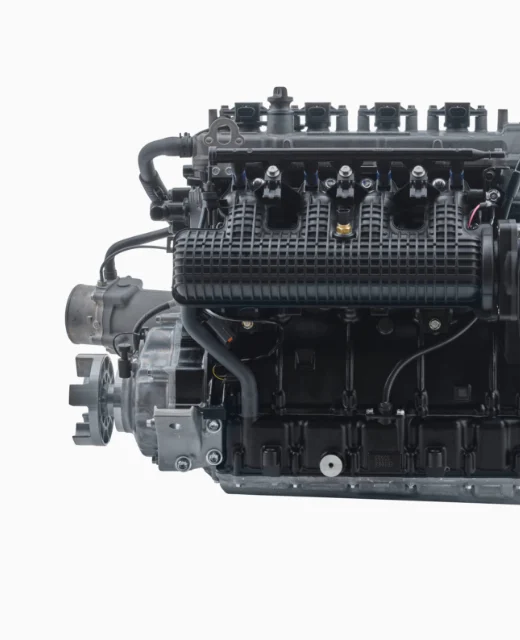

Twin Supercharged 1.8L Marine Engines
Supercharged and intercooled, Yamaha's SVHO engines deliver a combined 500 horsepower, channeled through Yamaha's renowned Jet Propulsion system for unmatched performance.

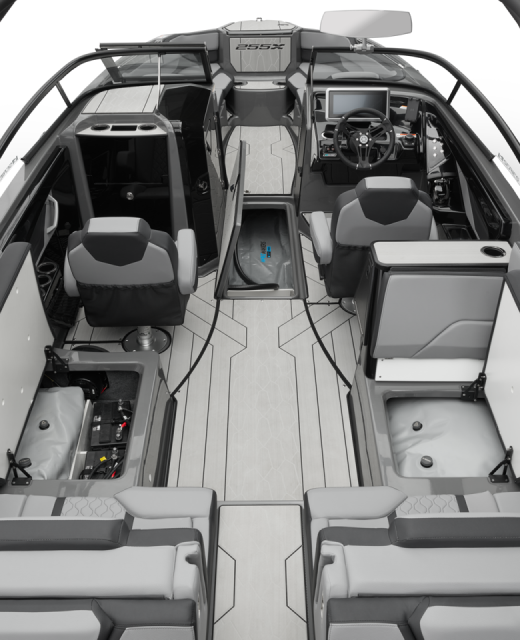

Factory-Installed Ballast System
The 255XE comes equipped with a 1,600 lbs triple ballast system, an oversized billet aluminum rear view mirror, and a premium sound system specifically designed to enhance your towing experience.

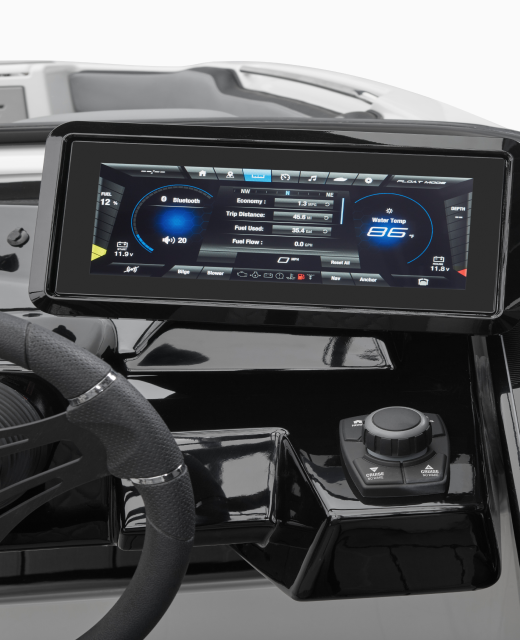

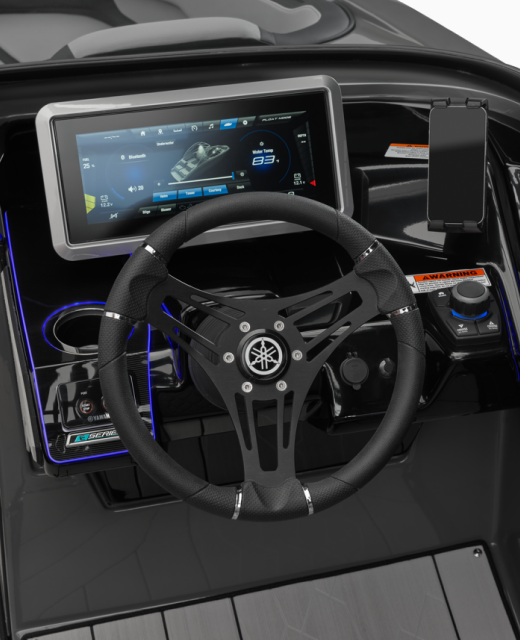

12.3'' Connext® Touchscreen
The 255XE features a cutting-edge Connext touchscreen, the largest that Yamaha offers, seamlessly integrated into its minimalistic, floating helm design.

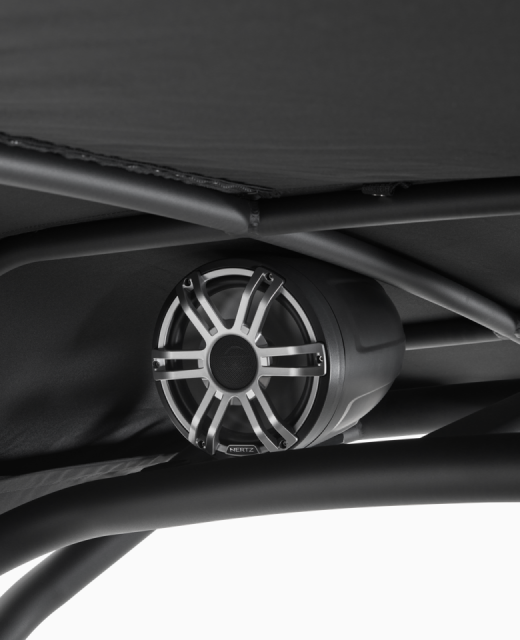

Premium Stereo System
Enjoy high-fidelity sound with a custom-tuned stereo system featuring a sound bar, dual amplifiers, and a subwoofer for immersive audio on the water.
