AR250 Full Specifications
| Length | 24'6" |
|---|---|
| Dry Weight (lbs) | 4021 |
| Beam | 8'6" |
| Draft | 19" |
| Dead Rise | 20° |
| In-Water Height (Bridge Clearance) | 8'1" |
| Fuel Tank Capacity (gal) | 75 Gal |
| Seating Capacity (people) | 12 |
| Weight Capacity (lbs) | 2600 |
| Storage Capacity (gal) | 731 |
| Height on Trailer | 11' |
| Height on Trailer with Tower Folded | 9'3" |
| Length on Trailer | 26'3" |
| Length on Trailer with Tongue Folded | 24'8" |
| Dry Weight on Trailer (lbs) | 5224 |
| BoatWaterCapacityshowersink | No |
| BoatWeight | 4021 |
| Water Tank Capacity (gal) | No |
| Snap-in Marine-Grade Woven Floor Mat | |
|---|---|
| Ski Locker | |
| Removable Dinette Table with Pedestal | No |
| Bow Filler Inserts for Multiple Seating Configurations | |
| Hinged Seat Cushions | |
| Tilt Steering | |
| Adjustable Captain's Chair with Flip-up Bolster | |
| Passenger-side Captain's Chair | |
| Portside Entertainment Area | |
| Lockable Passenger Side Glove Box | |
| Walk-through Bow Door | |
| Integrated Removable Cooler | |
| Head Compartment | With light |
| Courtesy Deck Lighting | |
| Dedicated Anchor and Rope Locker | |
| Bow Reboarding Ladder | |
| Upgraded Aluminum Handles & Accents | |
| Cockpit Drainage System (CDS) |
| Upholstered Cushioned Backrests | Yes |
|---|---|
| 12-volt Outlet | |
| Stainless Steel Telescopic Reboarding Ladder | |
| Factory Installed Swim-up Seat Bracket | |
| Dinette Table Mount | Mounts at cockpit and stern |
| Freshwater Shower | No |
| Integrated Swim Platform | Yes |
| Marine Stereo | Yes |
| Marine-Grade Mat | Yes |

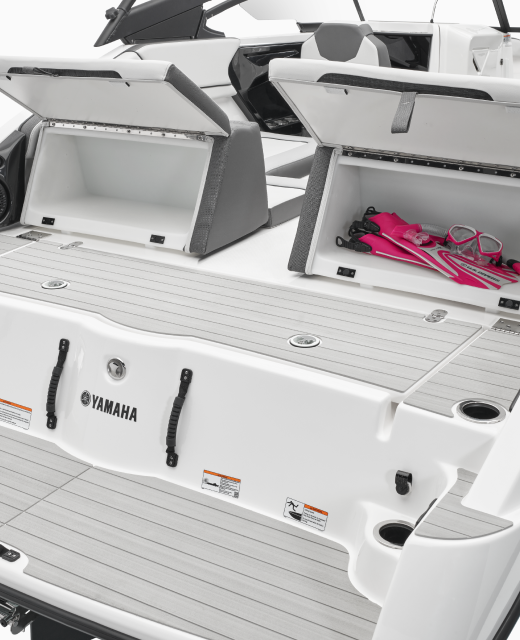

| Stern (Wet) Storage | Yes |
| Stern Filler Cushions | No |
| Swim-up Seat Accessory Included | No |
| Underwater Light | No |
| Upholstered Cushioned Seats | No |
| Integrated Swim-up Seat | No |
| Disk Brakes | Yes |
| Helm Connext Screen (in) | 7 |
|---|---|
| MFD w/ Maps | |
| Wireless Charging Points | Yes |
| Marine Speakers | 6 Polk |
| Battery Setup | Dual |
| Articulating Keel System | |
| 3 position "No Wake Mode™" Control | Yes |
| Boat Wellness Function Display | Yes |

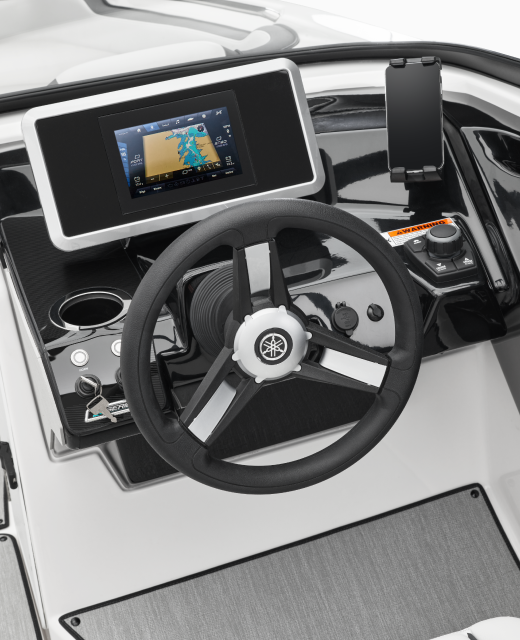

| Connext Screen (in) | 7" Display with Maps & Joystick |
| Connext with Touchscreen | 7" dipslay w/ maps & joystick |
| Cruise Assist | Yes |
| DRiVE | No |
| DRiVE X | No |
| Depth Finder | Yes |
| Drive Control | No |
| Drive-By-Wire Technology | No |
| Electronic Speedometer | Yes |
| Enclosed Head Compartment | With light |
| Helm Switch Panels | No |
| Integrated Ballast System | No |
| Integrated Electric WakeBooster | No |
| Quiet Cruise Technology | Yes |
| Rack & Pinion Steering | Yes |
| Stern Speakers | Yes |
| Stern Stereo Remote | Yes |
| Toe-in Jet Nozzle Position | No |
| Helm Master EX | No |
| Helm Master™ | No |
| Yamaha Marine Engine | Twin 4-cylinder, 4-stroke, 1.9 Liter High Output Yamaha Marine Engines |
|---|---|
| Displacement | 3796CC |
| Recommended Fuel | Unleaded Gasoline (Minimum Pump Octane 87) |
| 155 MM High-Pressure Pump | |
| Pump Clean-out Ports | |
| Oil Capacity per Engine (L) | 3.7 |
| Fuel Management System | Yes |
| Bow Rails | |
|---|---|
| Stainless Steel Pop-up Cleats | 7 |
| Tow Hook | |
| BiminiTM Top | |
| Aluminum Folding Wakeboard Tower with Tow Hook | |
| Windshield Mirror | |
| Bimini™ Top | Yes |
| Color | Utopia Blue / Dolphin Gray |
| Hard Top with Panoramic Tinted Skylights | No |
| Premium Windshield Frame | No |
| Stainless Steel Bow Rails | Yes |
| Stainless Steel Cleats | 7 Pop-up |
| Wakeboard Racks | Optional |
| Hard Top | No |
| Painted Trailer with Swing-away Tongue | |
|---|---|
| Galvanized Trailer with Swing-away Tongue | Tandem Axle Optional |
| Spare Tire and Mount | |
| Lights | Yes |
Get Local Price

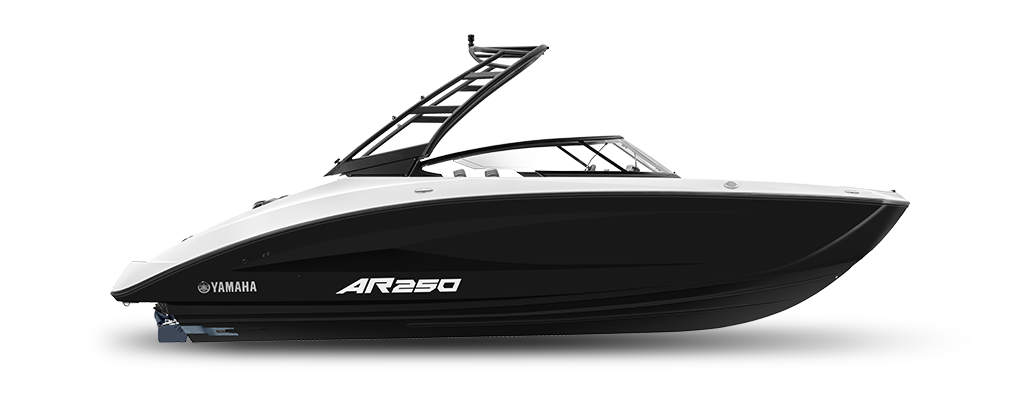

TOTAL WAKESPORTS EXCITEMENT
Experience unparalleled value for its size with the AR250. Its stylish watersports design, powered by robust 1.9L Yamaha engines, offers ample space, storage, and features for the active family to maximize their time on the water.

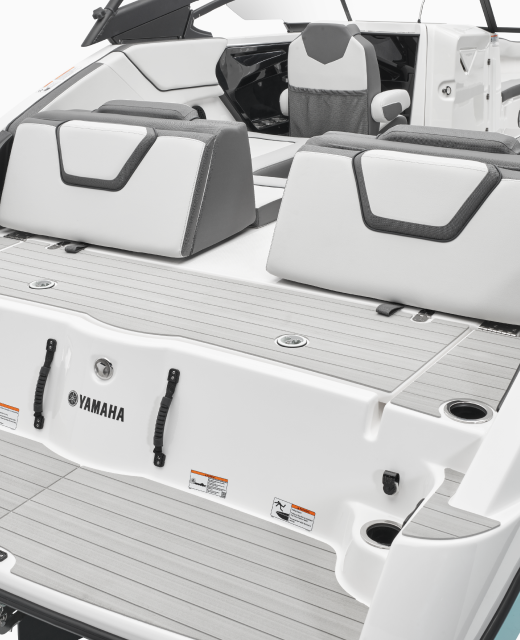

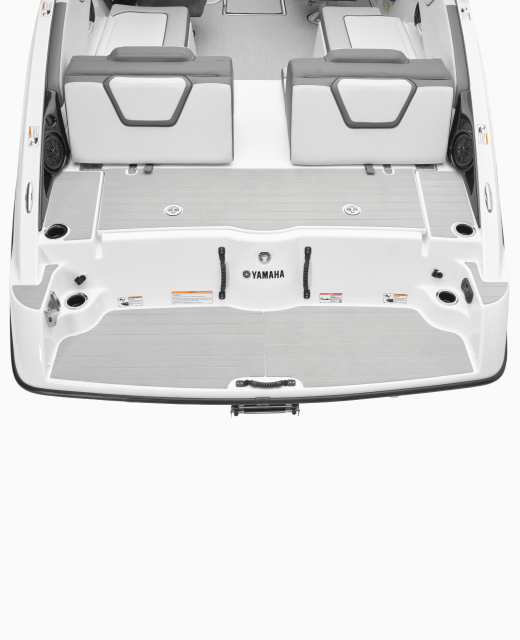

Signature Swim Platform
This signature swim platform features plush rear-facing lounge seating, providing ample room to stretch out. It also includes quick access to the patented clean-out ports, allowing you to clear debris from the jet pump while staying dry.

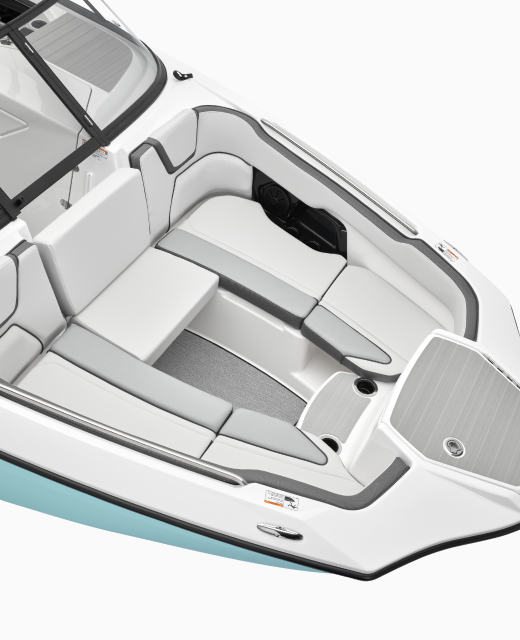

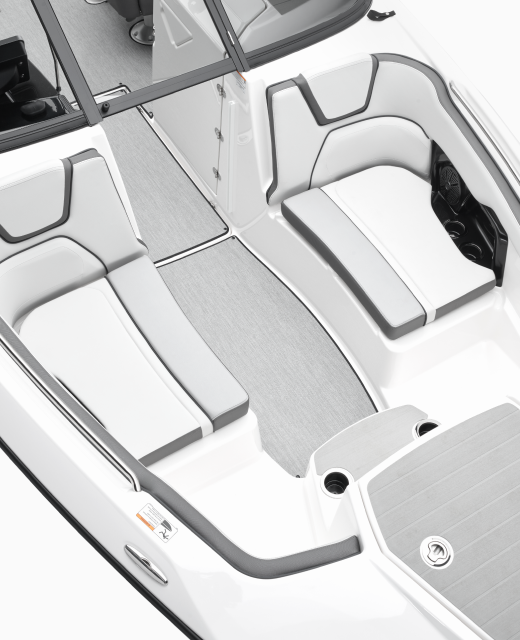

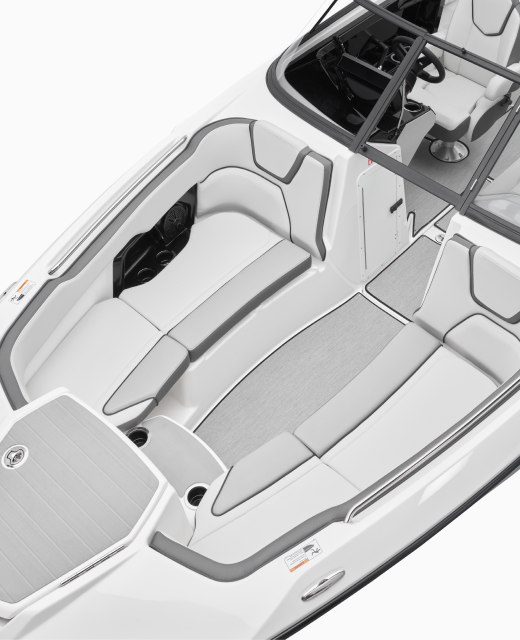

Bow Seating
The innovative deck design maximizes space for lounging, ensuring comfort and versatility. With bow filler cushions, you can transform the area into a spacious lounge, perfect for relaxing and soaking up the sun.

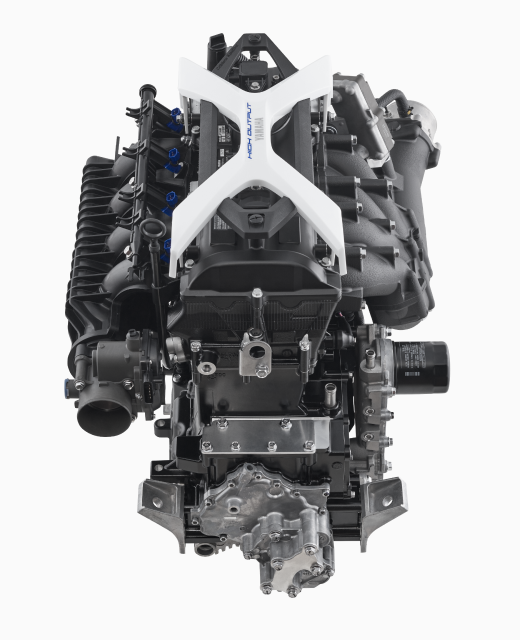

TWIN 1.9L HIGH OUTPUT YAMAHA MARINE ENGINES
These twin four-stroke, four-cylinder, 16-valve High Output Yamaha marine engines deliver smooth acceleration and impressive top speed, providing excellent towing power for all your watersports activities.

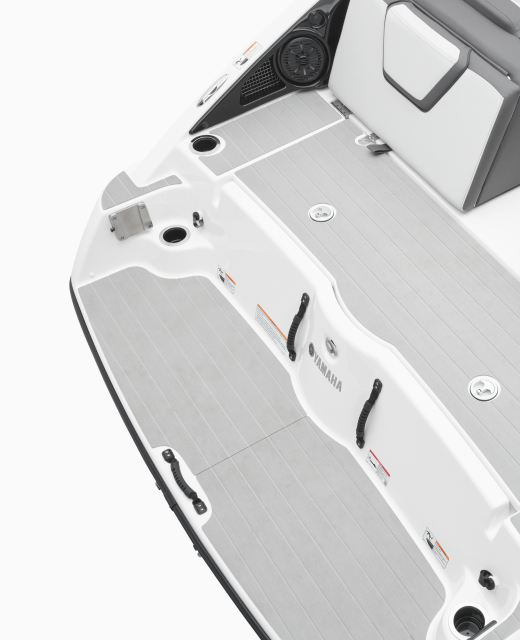

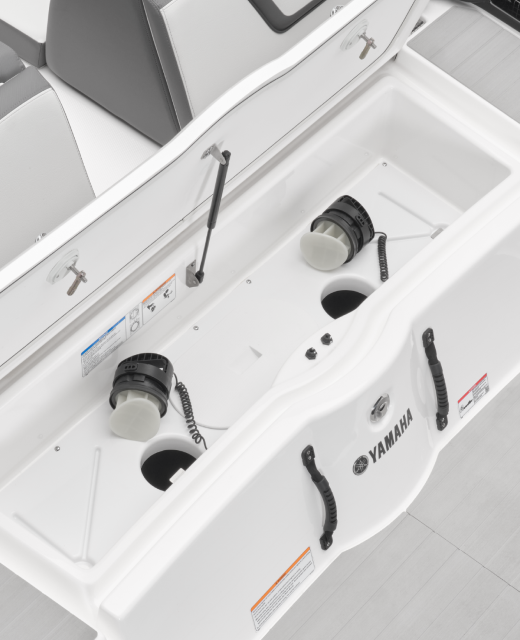

Jet Pump Clean-out Port
Yamaha's patented jet pump cleanout port is designed for easy debris clearing without getting wet.

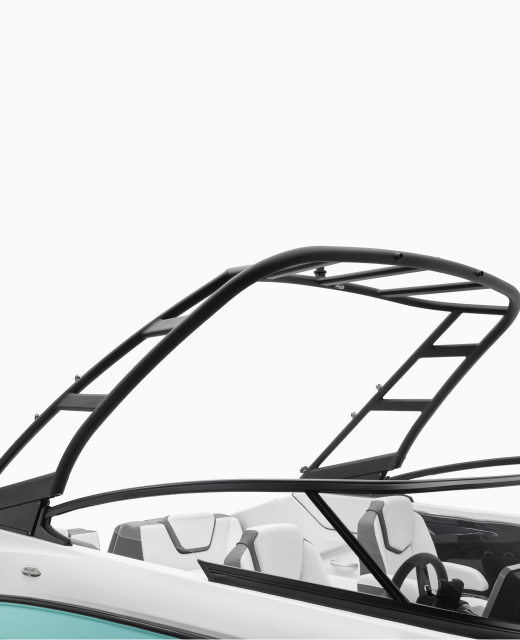

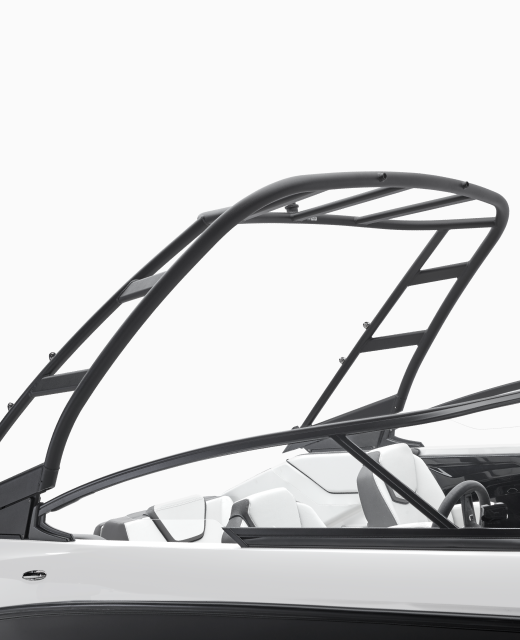

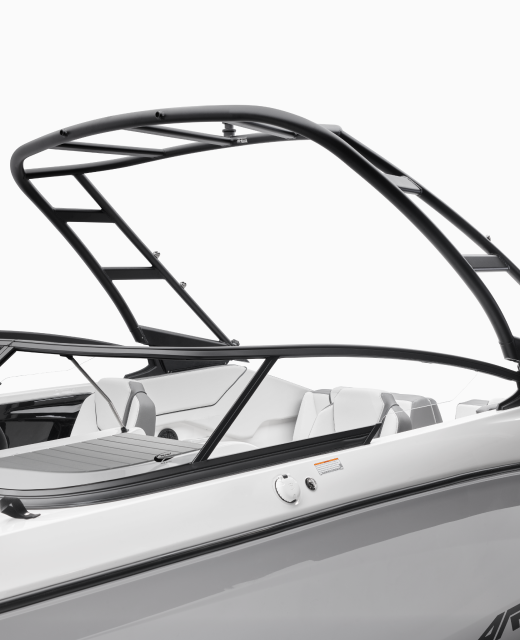

Watersports Tower
The forward-swept aluminum tower is perfect for all watersports fun. It's also an excellent spot to mount speakers and board racks, enhancing your overall experience on the water.

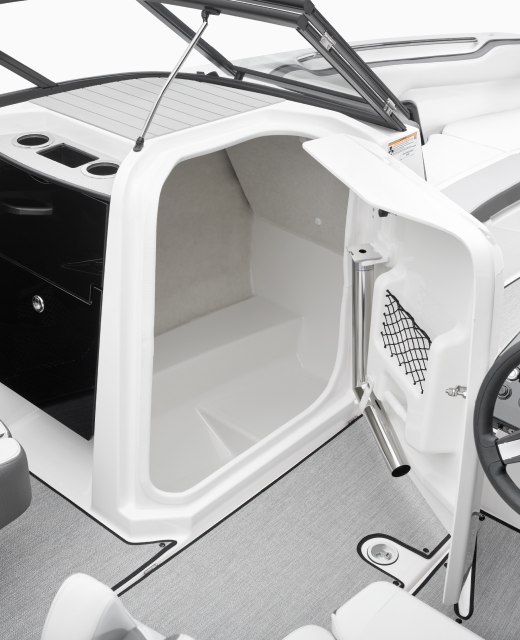

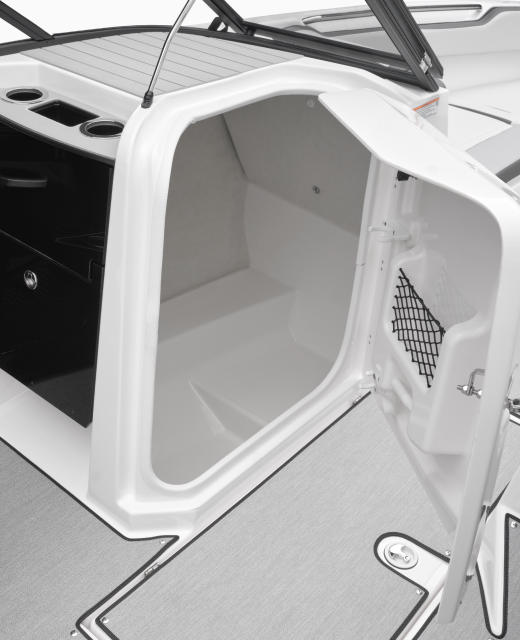

Portside Storage
The deck and hull design maximizes space, offering a spacious, comfortable, and versatile storage area. Perfect for stowing gear, this compartment ensures you have plenty of room for all your gear.
