AR195 Full Specifications
Length | 19' 5" |
---|---|
Weight | 2,500 LBS |
Beam | 8' 2" |
Draft | 15" |
Dead Rise | 18° |
In-Water Height (Bridge Clearance) | 7' 6" |
Seating Capacity/Weight Capacity | 8/1,600 LBS |
Storage Capacity | 422 GAL |
Snap-in Marine-Grade Woven Floor Mat | |
---|---|
Ski Locker | |
Removable Dinette Table with Pedestal | Mount at Cockpit |
Bow Filler Inserts for Multiple Seating Configurations | |
Hinged Seat Cushions | |
Tilt Steering | |
Adjustable Captain's Chair with Flip-up Bolster | |
Glove Box | |
Integrated Removable Cooler | |
Courtesy Deck Lighting | |
Dedicated Anchor and Rope Locker | |
Upgraded Aluminum Handles & Accents | |
Cockpit Drainage System (CDS) | |
Integrated Drink Holders | Chrome |

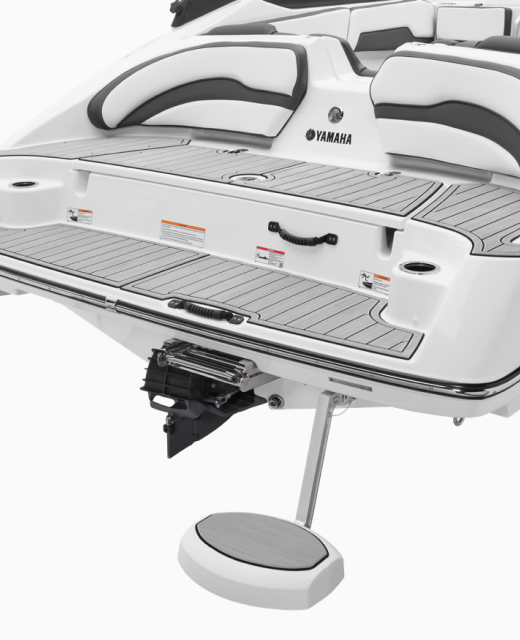

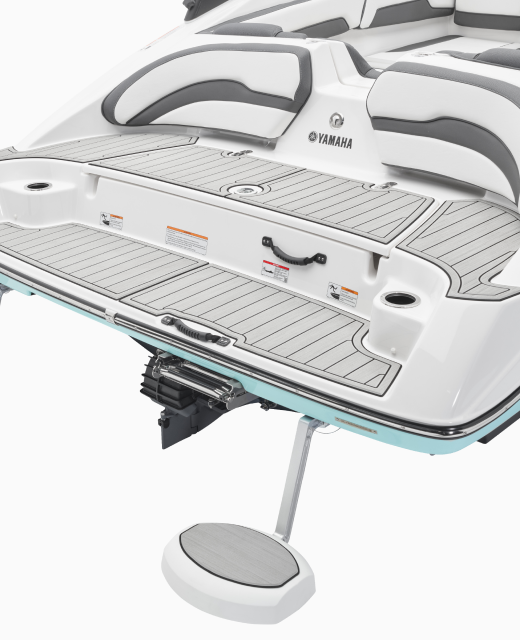

Integrated Swim Platform | |
---|---|
Upholstered Cushioned Backrests | |
Stainless Steel Telescopic Reboarding Ladder | |
Marine-Grade Mat | |
Stern (Wet) Storage |
Connext with Touchscreen | 5" display |
---|---|
Custom Fit Smartphone Holder | |
Boat Wellness Function Display | in Connext with Touchscreen |
Marine Stereo | Jensen |
AUX | |
Bluetooth Capability | |
12V Outlet | |
Marine Speakers | 4 Polk |
3 position "No Wake Mode™" Control | |
Cruise Assist | |
Compass | in Connext Touchscreen |
Depth Finder | |
Water Temperature | |
Electronic Speedometer | |
Fuel Management System | |
Rack & Pinion Steering | |
Quiet Cruise Technology | |
Articulating Keel System |
Yamaha Marine Engine | Single Supercharged 4-cylinder, 4-stroke, Super Vortex High Output Yamaha Marine Engine |
---|---|
Displacement (per engine) | 1812cc |
Fuel Capacity | 40 GAL |
160 MM High-Pressure Pump | |
Pump Clean-out Ports | |
Oil Capacity per Engine | 3.7L |
3-Blade, Stainless Steel Impeller | |
Saltwater Corrosion Resistant Driveline |
Color | Maple Red,Space Blue |
---|---|
Stainless Steel Cleats | 6 Pop-up |
Tow Hook | |
Bimini™ Top | |
Aluminum Folding Wakeboard Tower with Tow Hook | |
Wakeboard Racks | Optional |
Windshield Mirror |
Painted Trailer with Swing-away Tongue | Single Axle |
---|---|
Galvanized Trailer with Swing-away Tongue | Optional (Single Axle) |
Disk Brakes | |
Lights | |
Safety Chains | |
Adjustable Winch Stand with Strap and Hook | |
Height on Trailer | 10' 2" |
Height on Trailer with Tower Folded | 6' 11.5" |
Length on Trailer | 21' 2" |
Length on Trailer with Tongue Folded | 19' 5" |
Dry Weight on Trailer | 3,170 LBS |
Watersports Equipped Family Speedster
With its supercharged engine, innovative design and watersports features, the AR195 is ready for anything you throw at it.

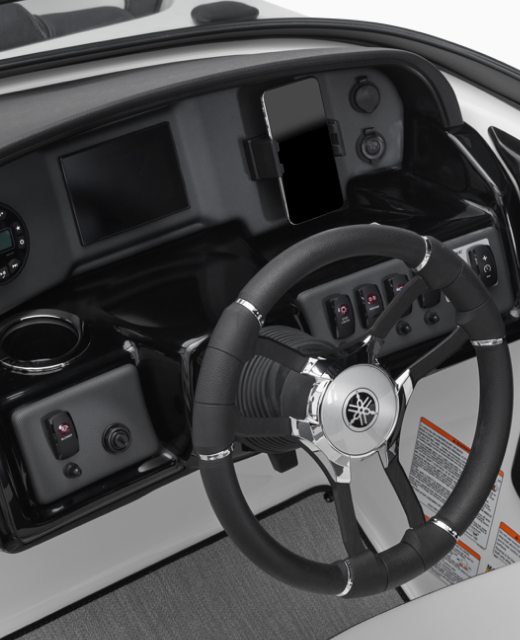

Helm Featuring Connext®
Yamaha's award winning 5" touchscreen display with adjustable phone holder.

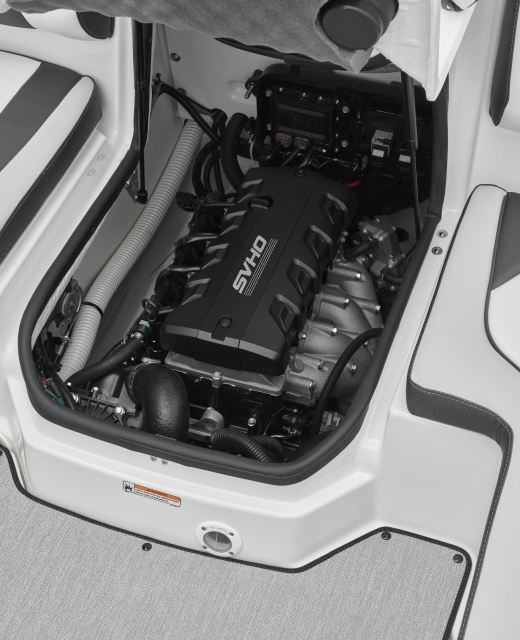

SVHO Yamaha Marine Engine
Super Vortex High Output Marine engine delivers more power and torque than any Boat before it.

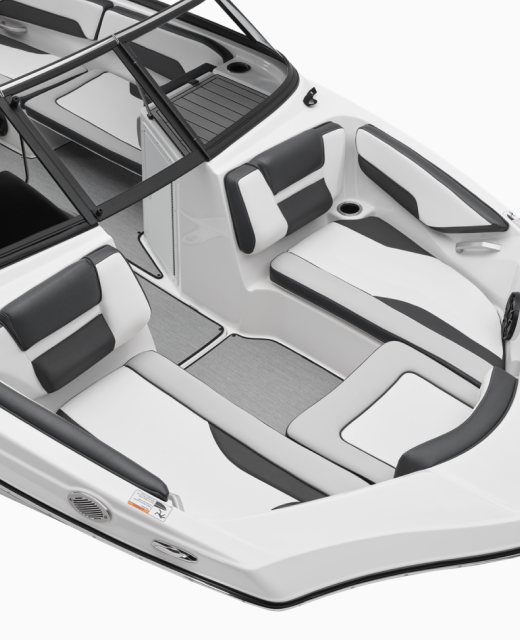

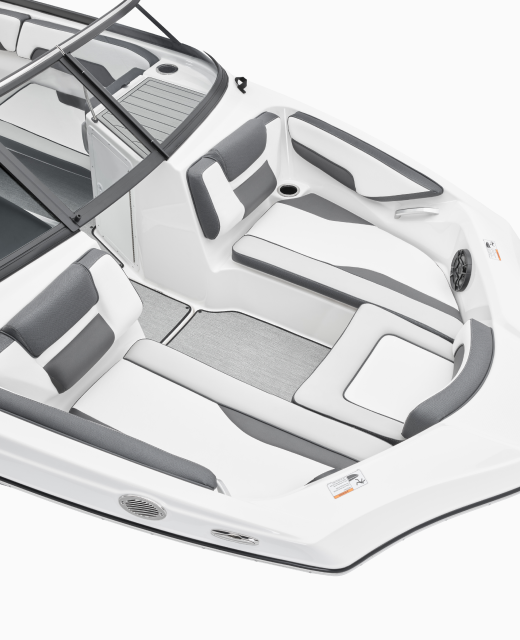

Bow Seating
Includes beverage mounts and backrest cushions for maximum comfort.

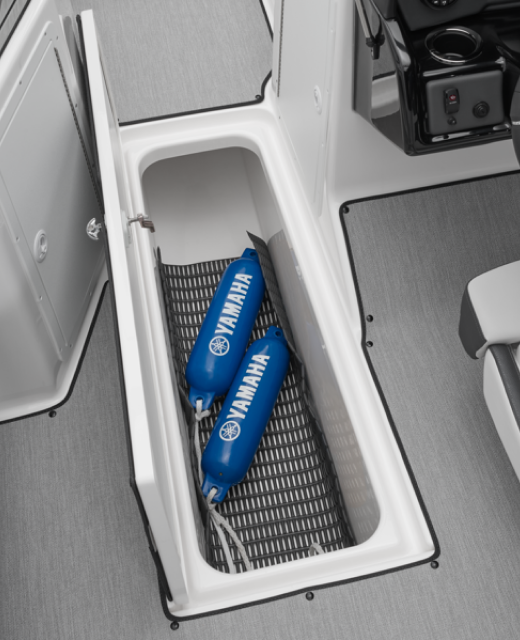

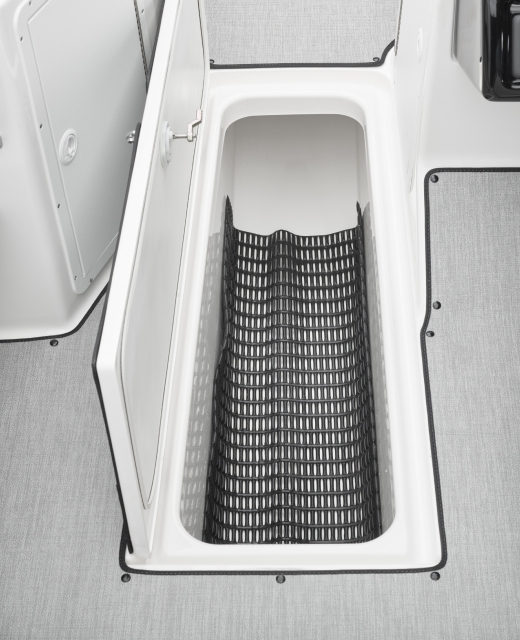

In-Floor Storage
Oversized, in-floor storage compartment accommodates wakeboards and extra gear.

Innovative Cockpit Seating
The deck and hull design maximizes space, comfort and versatility unlike any other 19-foot boat.

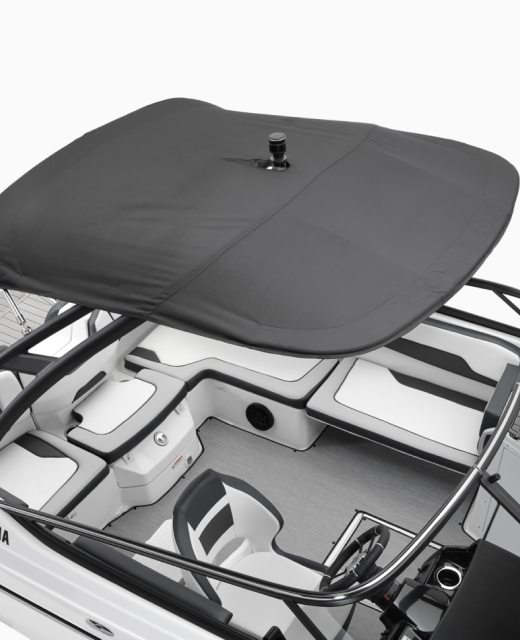

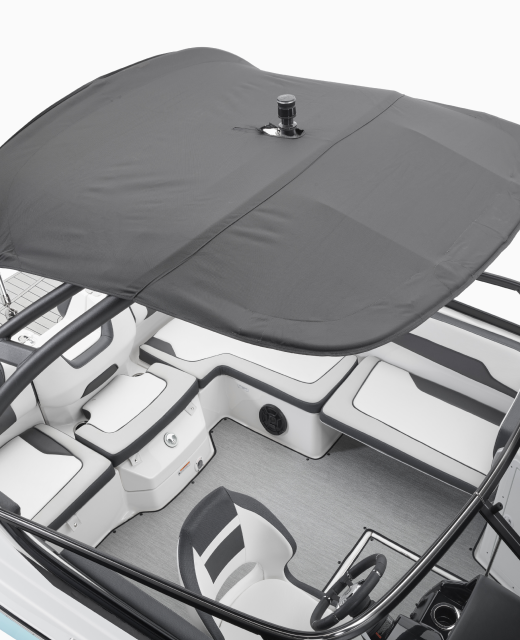

Tower and Bimini™ Top
The forward-swept aluminum tower is perfect for all watersports fun and comes standard with a Bimini™ Top.
