SX220 Full Specifications
Length | 22' |
---|---|
Weight | 3,457 LBS |
Beam | 8' 6" |
Draft | 19" |
Dead Rise | 20° |
In-Water Height (Bridge Clearance) | 4' 10" |

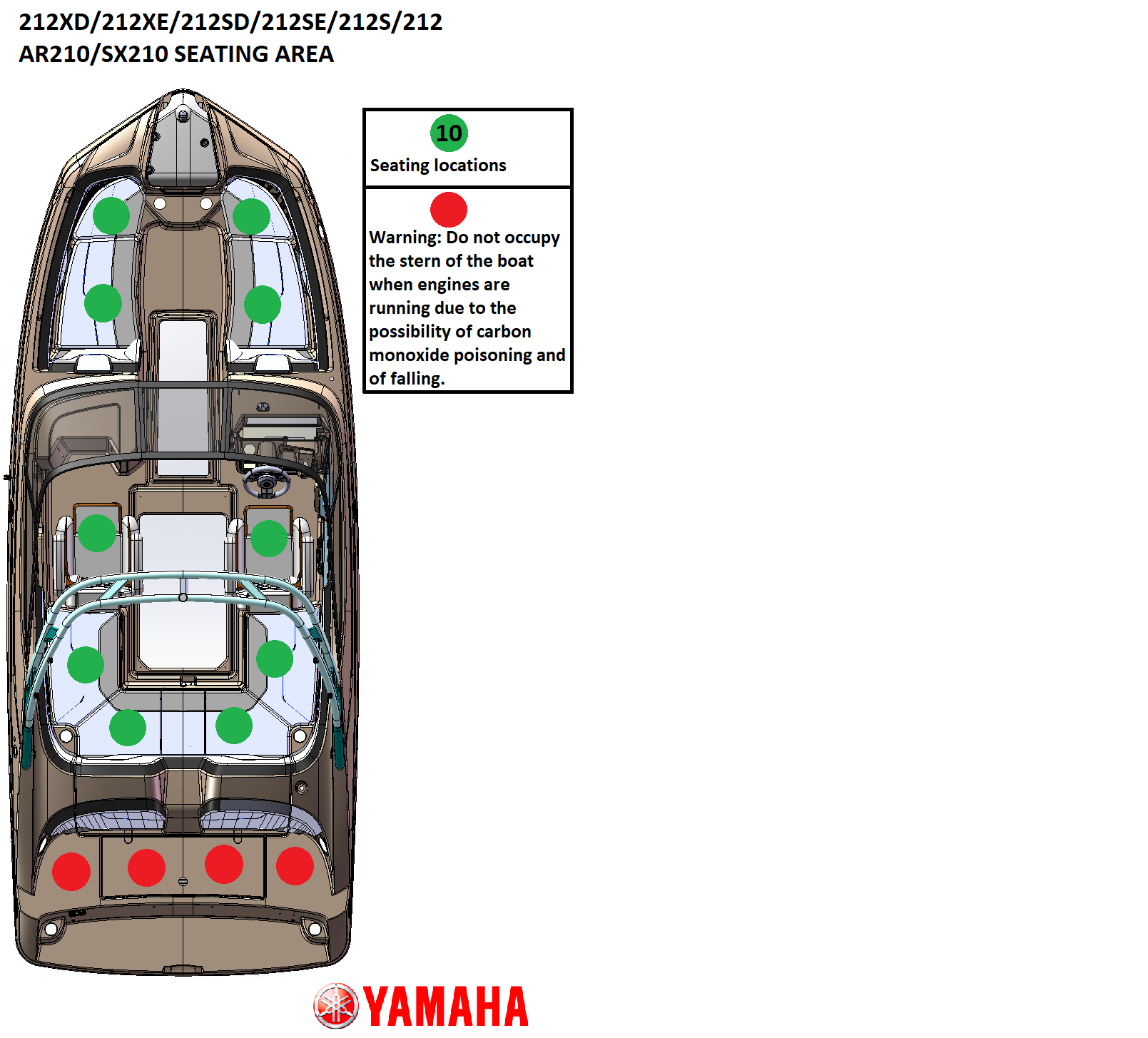

Seating Capacity/Weight Capacity | 10/2,200 LBS |
Storage Capacity | 502 GAL |
Snap-in Marine-Grade Woven Floor Mat | |
---|---|
Ski Locker | |
Removable Dinette Table with Pedestal | Mounts at Cockpit (feat. Marine Mat) |
Bow Filler Inserts for Multiple Seating Configurations | |
Hinged Seat Cushions | |
Tilt Steering | |
Adjustable Captain's Chair with Flip-up Bolster | |
Passenger-side Captain's Chair | |
Portside Entertainment Area | |
Walk-through Bow Door | |

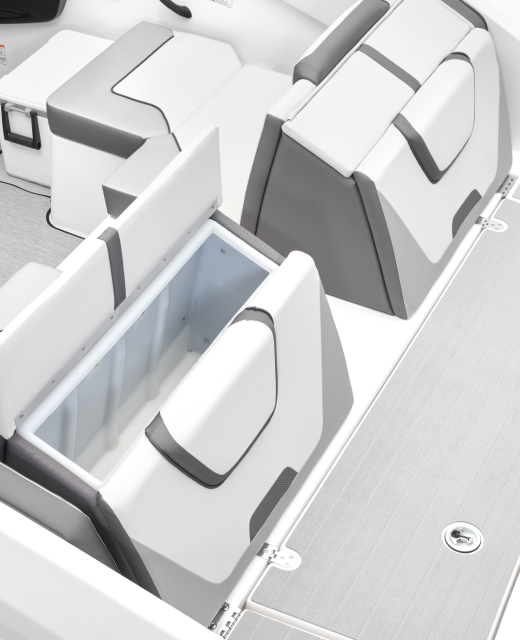

Integrated Removable Cooler | |
Courtesy Deck Lighting | |
Dedicated Anchor and Rope Locker | |
Bow Reboarding Ladder | |
Cockpit Drainage System (CDS) | |
Integrated Drink Holders | Black |
Integrated Swim Platform | |
---|---|
Upholstered Cushioned Backrests | w/ Storage |
Stainless Steel Telescopic Reboarding Ladder | |
Marine-Grade Mat | |
Stern (Wet) Storage |
Connext with Touchscreen | 5" display |
---|---|
Custom Fit Smartphone Holder | |
Boat Wellness Function Display | in Connext with Touchscreen |
Helm Switch Panels | Black |
Marine Stereo | |
Wireless Charging Points | Helm and Portside (2) |
AUX | |
Bluetooth Capability | |
USB Charge Ports | |
12V Outlet | |
Marine Speakers | 4 |
3 position "No Wake Mode™" Control | |
Cruise Assist | |
Compass | in Connext with Touchscreen |
Depth Finder | |
Water Temperature | |
Electronic Speedometer | |
Fuel Management System | |
Rack & Pinion Steering | |
Quiet Cruise Technology | |
Articulating Keel System |
Yamaha Marine Engine | Twin 3-cylinder, 4-stroke TR-1 Yamaha Marine Engines |
---|---|
Displacement (per engine) | 1049cc |
Fuel Capacity | 70 GAL |
155 MM High-Pressure Pump | |
Pump Clean-out Ports | |
Oil Capacity per Engine | 3.4L |
3-Blade, Stainless Steel Impeller | |
Saltwater Corrosion Resistant Driveline |
Color | White,Black |
---|---|
Stainless Steel Bow Rails | |
Stainless Steel Cleats | 6 Pop-up |
Tow Hook | |
Bimini™ Top | |
Windshield Mirror |
Painted Trailer with Swing-away Tongue | Tandem Axle |
---|---|
Galvanized Trailer with Swing-away Tongue | Optional (Tandem Axle) |
Spare Tire and Mount | |
Disk Brakes | |
Chrome Wheels & Aluminum Fender Step Plates | |
Lights | |
Safety Chains | |
Adjustable Winch Stand with Strap and Hook | |
Height on Trailer | 7' 10" |
Height on Trailer with Tower Folded | - |
Length on Trailer | 24' |
Length on Trailer with Tongue Folded | 22' 6" |
Dry Weight on Trailer | 4,657 LBS |
Versatility Meets Value
Featuring a spacious cockpit, generous storage and total package of features, the SX220 is a game changer in the 22-foot segment.

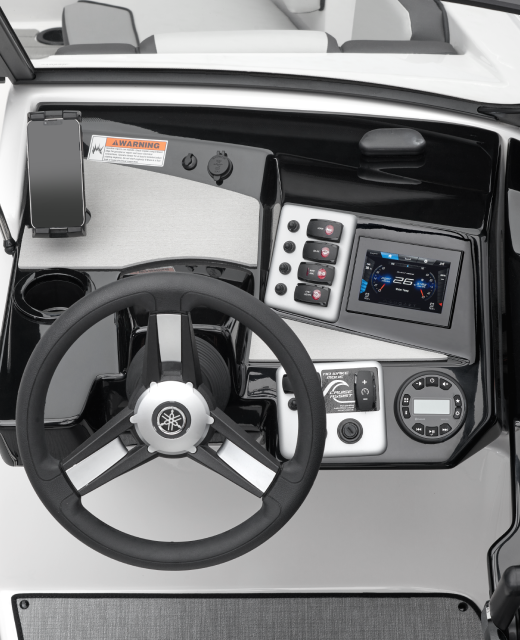

Minimalistic Helm Design With Connext
Features 5-inch multi-color Connext touchscreen that is the hub for the entertainment functions, GPS mapping, and relevant boat system data when underway.

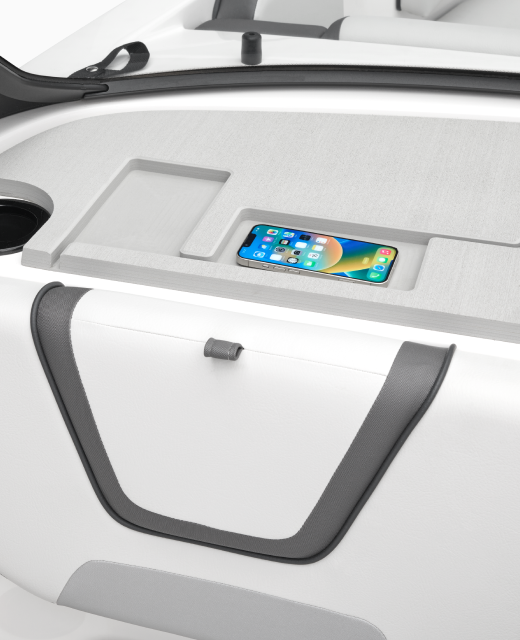

Wireless Charging
Yamaha's 22-foot Boats feature wireless charging at the helm and a wireless charging pad located portside.

IN-FLOOR STORAGE
Oversized, in-floor storage compartment accommodates wakeboards and extra gear.

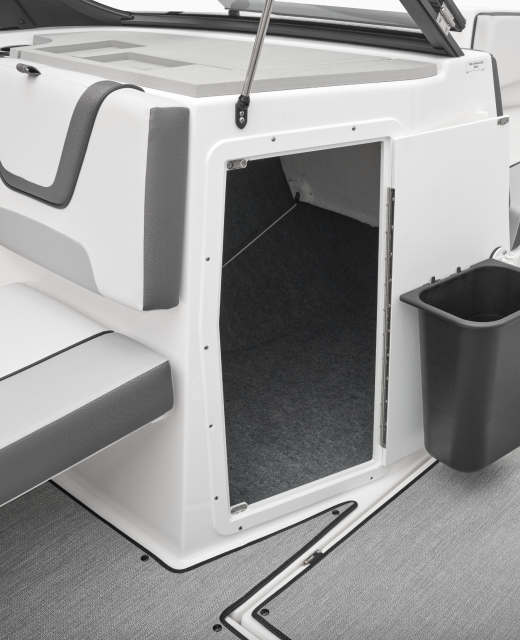

Head Compartment
Extra storage compartment for larger items.

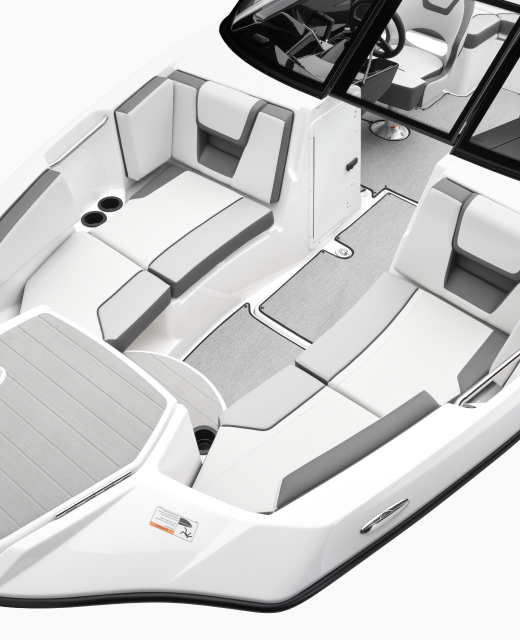

Spacious Interior
The 22-foot platform has a spacious interior as well as large bow and cockpit areas, creating a significantly roomier, more comfortable riding experience.

Innovative Swim Up Seating
At anchor, two removable seats can be attached to the stern, providing comfortable in-water seating. All 22-foot runabouts come standard with mounts for optional swim-up seats (sold separately).
