222 FSH Sport Full Specifications
Length | 22' |
---|---|
Weight (lbs) | 3,620 |
Beam | 8'6" |
Draft | 19" |
Dead Rise | 20° |
In-Water Height (Bridge Clearance) | 9' |
Fuel Tank Capacity (gal) | 75 |
Seating Capacity (people) | 10 |
Weight Capacity (lbs) | 2200 |
Storage Capacity (gal) | 718 |
Height on Trailer (fully rigged) | 11' |
Length on Trailer | 24 |
Length on Trailer with Tongue Folded | 22'6" |
Dry Weight on Trailer (lbs) | 4820 |

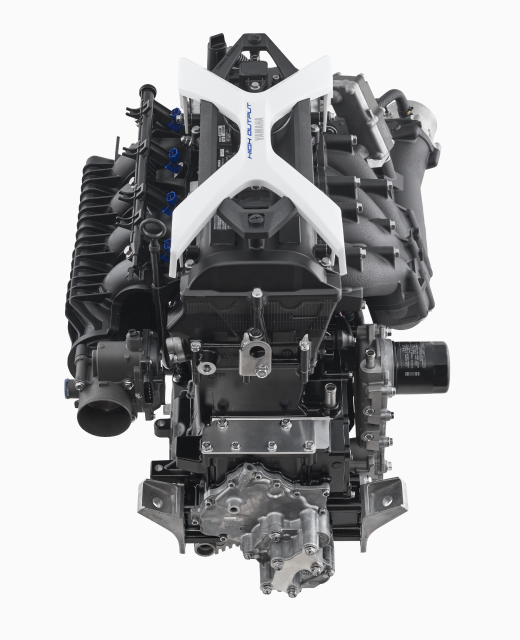

Yamaha Marine Engine | Twin 4-cylinder, 4-stroke, 1.9 Liter High Output Yamaha Marine Engines |
Dedicated Anchor and Rope Locker | |
---|---|
Insulated Fish Box | |
Bow Seating with Storage | |
Snap-in Bow Seat Cushion(s) | |
Storage Pod | |
Integrated Rod/Cup Holder | 4 |

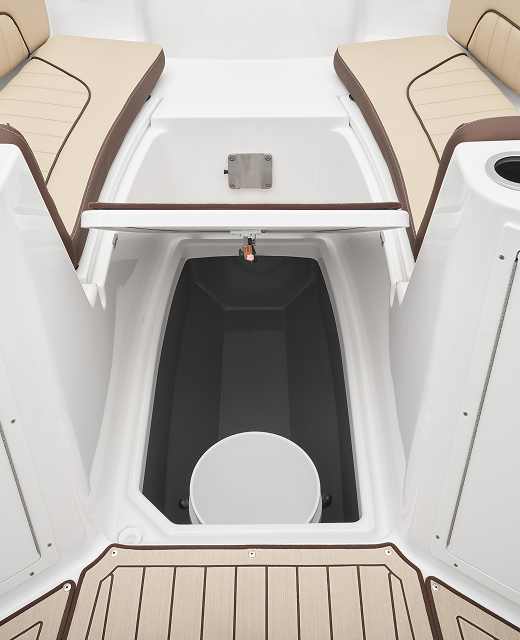

In-Floor Storage w/ Dedicated Space for 5-Gallon Bucket | |
Front Console Seat | |
Lockable Console Compartment/Changing Area with Light | w/ curtain |
Courtesy Lights | 2 |
Removable Windshield | |
Windshield | Acrylic |
Lockable Helm Glove Box | |
Tilt Steering | |
Side Console Rod Storage | 6 |
Gunwale Rod Storage | 6 |
Horizontal Rod Storage | 8 |
T-Top Rod Holders | 4 |
Leaning Post | w/ convertible backrest |
Cooler w/ Storage Under Leaning Post | |
Jump Seats | Folding w/ removable backrests |
Gunwale Padding | |
Slip-Resistant/Easy-Clean Floor | |
Cockpit Drainage System (CDS) | |
Stainless Steel Corrosion Resistant Hardware |
Integrated Swim Platform | |
---|---|
Upholstered Cushioned Backrests | |
Stern (Wet) Storage | |
Table and Grill Mount | |
Aerated Stern Livewell (gal) | 26 |
Integrated Drink Holders | 2 |
Stainless Steel Telescopic Reboarding Ladder |
Connext Screen (in) | 5 |
---|---|
Marine Speakers | 4 |
3 position "No Wake Mode™" Control | |
Cruise Assist | |
Analog Compass | |
Water Temperature | |
Depth Finder | |
Battery Setup | Dual |
Rack and Pinion Steering | |
Articulating Keel System | |
Electric Raw Water Washdown System with 4.5gph | |
Custom Trolling Motor Mount | |
Quiet Cruise Technology | |
Through-hull Transducer(For depth,water temp.) |
Displacement (per engine) | 1898cc |
---|---|
Fuel Capacity (gal) | 75 |
Recommended Fuel | Regular Unleaded |
155 MM High-Pressure Pumps | |
Pump Clean-out Ports | |
Oil Capacity per Engine (L) | 2.6 |
Stainless Steel Rub Rail | |
---|---|
Flush Mount Pop-up Cleats | 7 |
Horn | |
Nav Lights on Deck | |
Tow Hook | |
Canvas T-top Rod Holders (qty) | 4 |
Painted Boat Trailer with Swing-away Tongue | Single Axle |
---|---|
Aluminum Trailer with Swing-Away Tongue | OPTIONAL (single axle) |
Spare Tire and Mount | |
Height on Trailer (Fully Rigged) | 11' |
Length on Trailer | 24 |
Length on Trailer with Tongue Folded | 22'6" |
Dry Weight on Trailer (lbs) | 4,820 |
THE PERFECT CATCH
The 222 FSH Sport redefines excellence in 22-foot center console boats with its powerful twin-engine setup, offering superior performance, reliability, and handling for all your fishing and boating adventures.

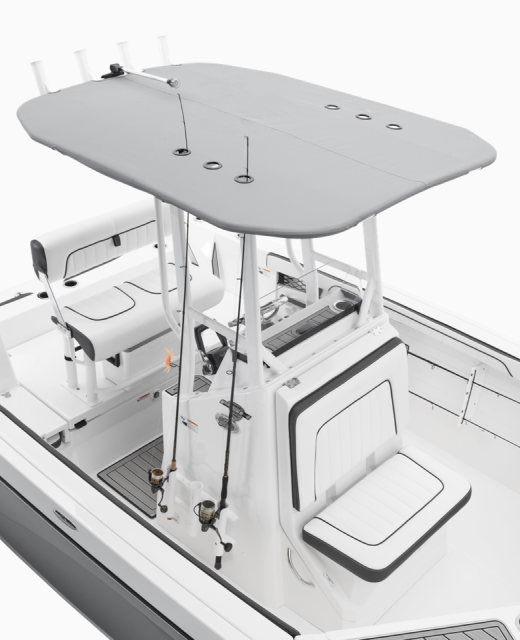

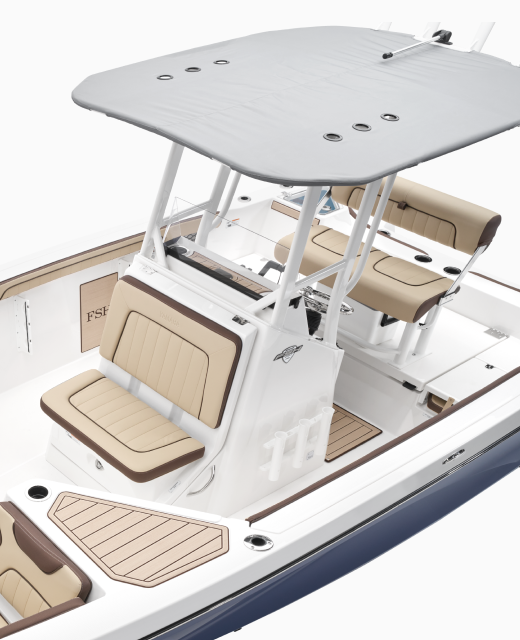

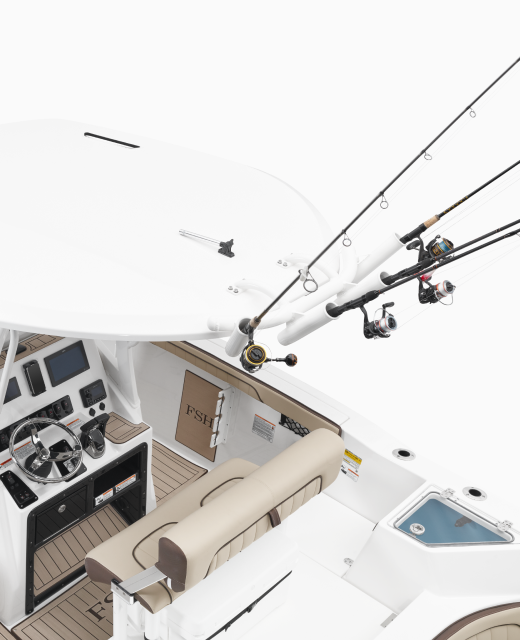

T-Top With Rodholders
The fabric T-top adds both shade and style, featuring rod holders and pass-through holes for longer rods.

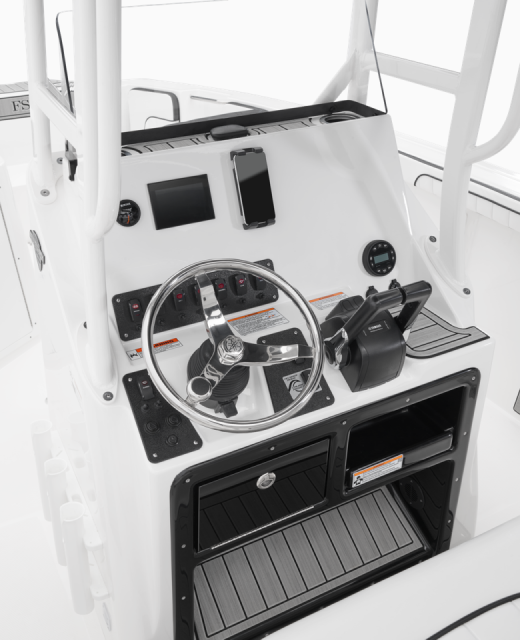

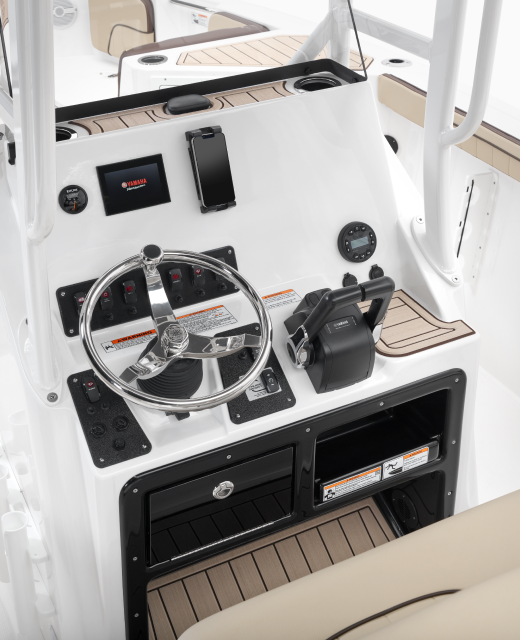

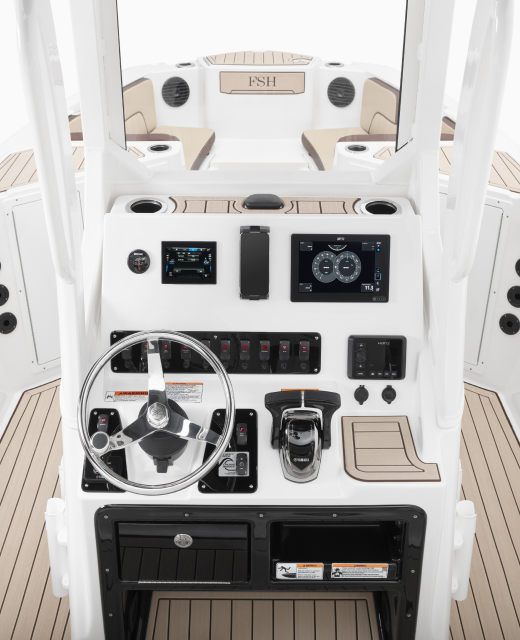

Innovative Helm Layout
Equipped with the 5” Connext® control system and ample space for integrating third-party electronics.

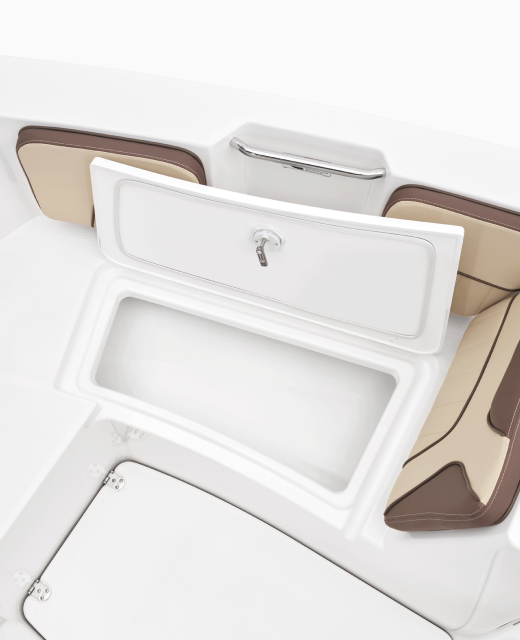

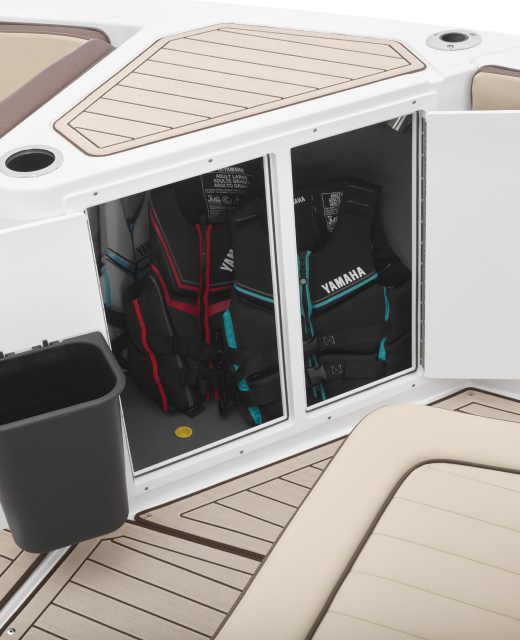

Storage Pods
Integrated Storage Pods give you added room for life jackets, ropes, tackle, or other must‑have gear. Designed to fit seamlessly within the FSH layout, these compartments make it easy to stay organized and prepared for every adventure.

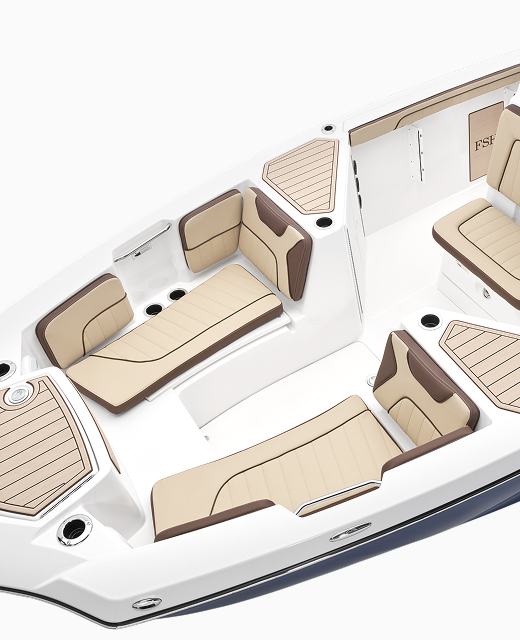

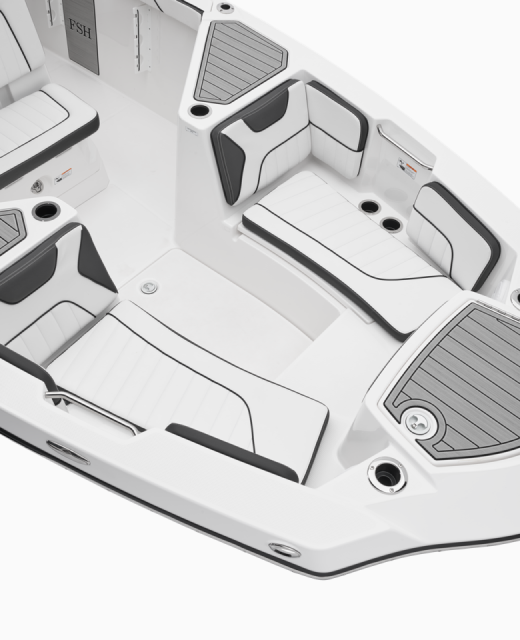

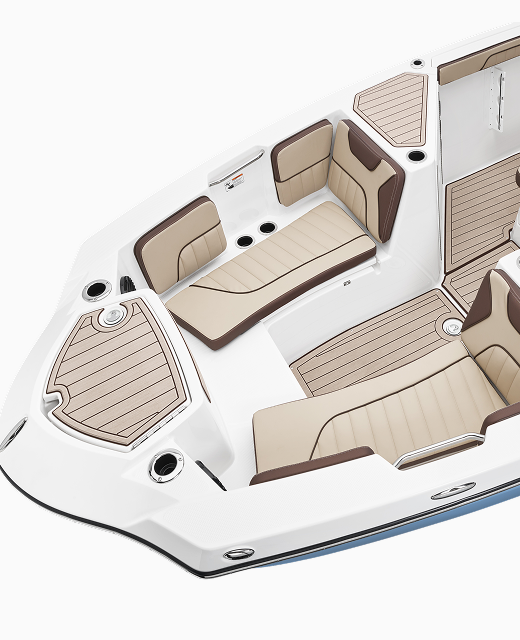

Bow Seating
Featuring a wide bow design with convenient beverage mounts and plush backrest cushions for maximum comfort.

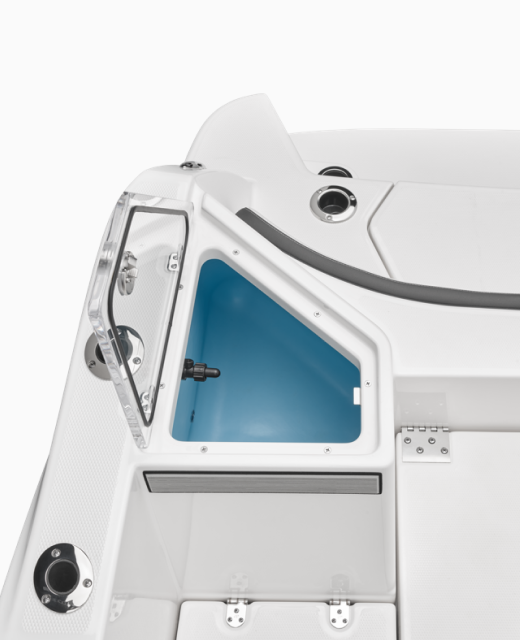

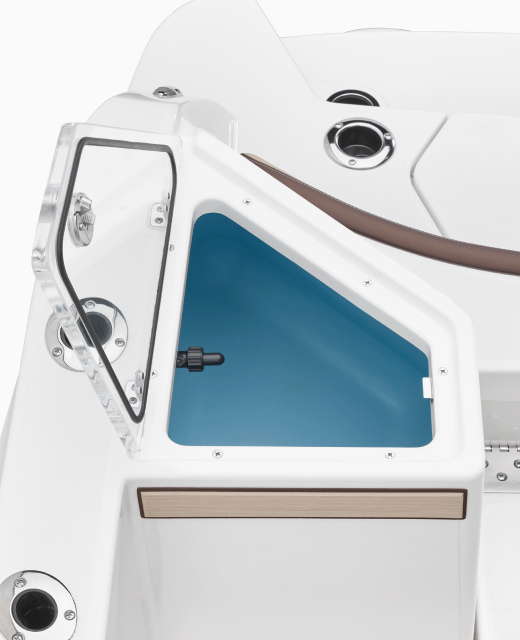

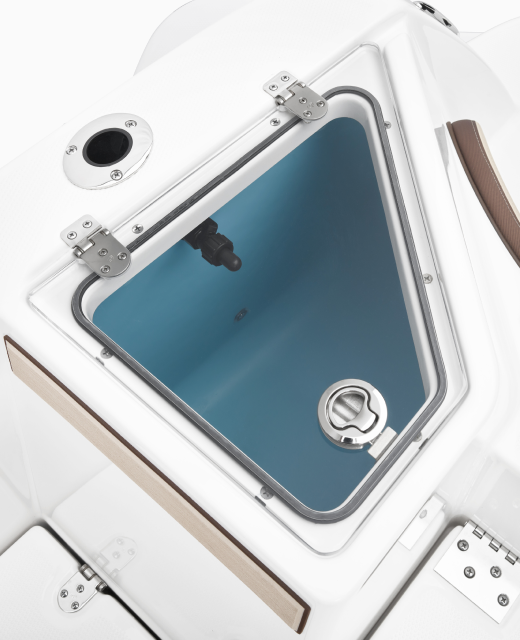

Livewell
The 26-gallon livewell ensures your bait stays fresh and ready whenever you need it.

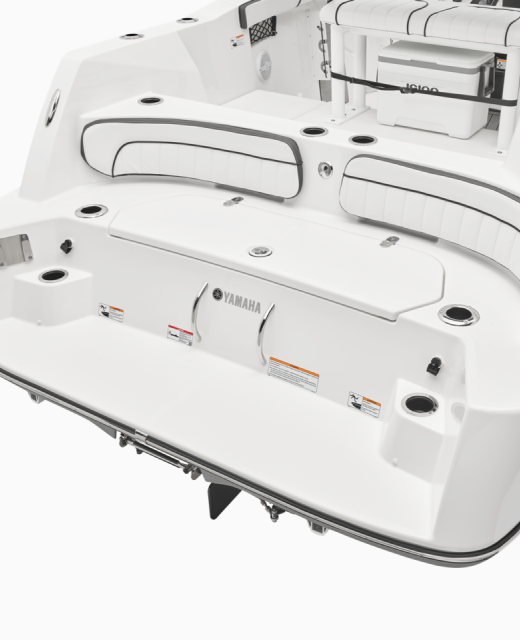

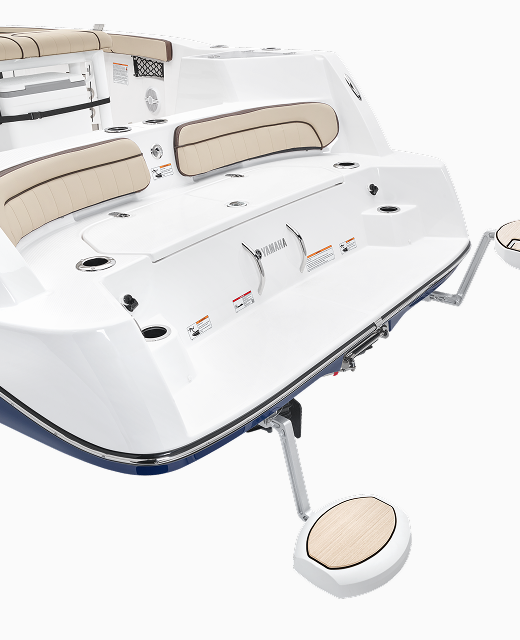

Signature Swim Platform
Yamaha's innovative swim-up seating transforms the stern into a comfortable lounge area that includes beverage mounts, plush backrest cushions, and easy access to the patented jet pump cleanout ports.
