Starting at
$77,699.00
Seating capacity
8
Dry weight
3112 LBS
Length
20'1"
Fuel capacity
40 GAL
Interior color
Cognac
Charcoal
205XD Full Specifications
| Length | 20'1" |
|---|---|
| Dry Weight (lbs) | 3112 |
| Beam | 8'6" |
| Draft | 19" |
| Dead Rise | 20° |
| In-Water Height (Bridge Clearance) | 7'6" |
| Fuel Tank Capacity (gal) | 40 Gal |
| Seating Capacity (people) | 10 |
| Weight Capacity (lbs) | 1900 |
| Storage Capacity (gal) | 502 |
| Height on Trailer | 9' 10'' |
| Height on Trailer with Tower Folded | 6' 8'' |
| Length on Trailer | 22' 2'' |
| Length on Trailer with Tongue Folded | 22'6" |
| Dry Weight on Trailer (lbs) | 3946 |
| BoatWaterCapacityshowersink | No |
| BoatWeight | 3112 |
| Water Tank Capacity (gal) | No |
| Snap-in Marine-Grade Woven Floor Mat | |
|---|---|
| Ski Locker | |
| Removable Dinette Table with Pedestal | No |
| Bow Filler Inserts for Multiple Seating Configurations | |
| Hinged Seat Cushions | |
| Tilt Steering | |
| Adjustable Captain's Chair with Flip-up Bolster | |
| Portside Entertainment Area | |
| Walk-through Bow Door | |
| Integrated Removable Cooler | |
| Courtesy Deck Lighting | |
| Dedicated Anchor and Rope Locker | |
| Bow Reboarding Ladder | |
| Cockpit Drainage System (CDS) |
| Integrated Swim Platform | |
|---|---|
| Upholstered Cushioned Backrests | Yes |
| 12-volt Outlet | |
| Stainless Steel Telescopic Reboarding Ladder | |
| Marine-Grade Mat | |
| Stern (Wet) Storage | |
| Factory Installed Swim-up Seat Bracket | |
| Dinette Table Mount | N/A |
| Disk Brakes | Yes |
| Freshwater Shower | No |
| Marine Stereo | Yes |
| Stern Filler Cushions | No |
| Swim-up Seat Accessory Included | No |
| Underwater Light | No |
| Upholstered Cushioned Seats | Yes |
| Integrated Swim-up Seat | No |
| Helm Connext Screen (in) | 5 |
|---|---|
| Helm Switch Panels | Blue LED Lit |
| Wireless Charging Points | Yes |
| Marine Speakers | 7 |
| 3 position "No Wake Mode™" Control | |
| Cruise Assist | |
| Battery Setup | Dual |
| Rack & Pinion Steering | |
| Quiet Cruise Technology | |
| Articulating Keel System | |
| Connext Screen (in) | 7" Touchscreen Display |
| Stern Speakers | |
| Stern Stereo Remote | |
| Drive-by-Wire Technology | |
| Boat Wellness Function Display | Yes |
| Connext with Touchscreen | 7" dipslay w/ maps & joystick |
| Depth Finder | Yes |
| Drive Control | No |
| Electronic Speedometer | Yes |
| Enclosed Head Compartment | N/A |
| Helm Master EX | No |
| Integrated Ballast System | Yes |
| Integrated Electric WakeBooster | No |
| Toe-in Jet Nozzle Position | No |
| Helm Master™ | No |
| DRiVE | Yes |
| DRiVE X | No |
| Yamaha Marine Engine | Single Supercharged 4-cylinder, 4-stroke, Super Vortex High Output Yamaha Marine Engine |
|---|---|
| Displacement | 1812CC |
| Fuel Capacity (gal) | 40 Gal |
| Recommended Fuel | Unleaded Gasoline( Minimum Pump Octane 92 ) |
| 155 MM High-Pressure Pump | |
| Pump Clean-out Ports | |
| Oil Capacity per Engine (L) | 3.7 |
| Fuel Management System | Yes |
| Bow Rails | |
|---|---|
| Stainless Steel Pop-up Cleats | 6 |
| Tow Hook | |
| BiminiTM Top | |
| Aluminum Folding Wakeboard Tower with Tow Hook | |
| Windshield Mirror | |
| Color | Dolphin Gray / Black |
| Hard Top with Panoramic Tinted Skylights | No |
| Head Compartment | N/A |
| Premium Windshield Frame | No |
| Stainless Steel Bow Rails | Yes |
| Stainless Steel Cleats | 6 Pop-up |
| Wakeboard Racks | Optional |
| Hard Top | No |
| Painted Trailer with Swing-away Tongue | |
|---|---|
| Galvanized Trailer with Swing-away Tongue | Single Axle Optional |
| Spare Tire and Mount | |
| Lights | Yes |
Get Local Price
Power Meets Polish
SVHO power, single-engine DRiVE® control, and a premium helm — the most refined boat on Yamaha's all-new 20-foot platform.

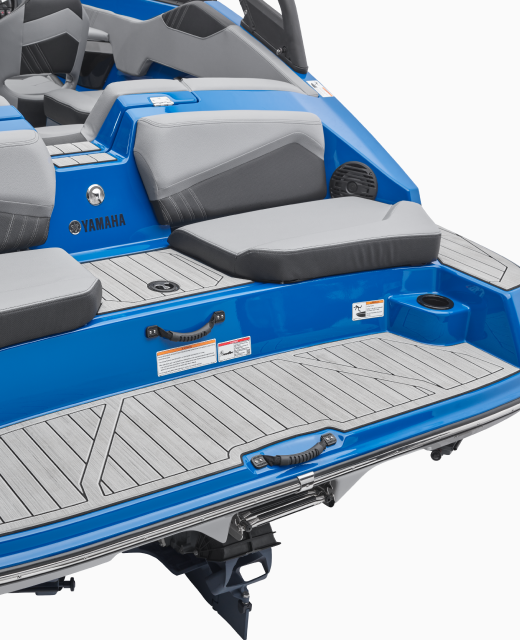

Signature Swim Platform
Featuring a spacious and well-designed swim platform, perfect for enjoying a day on the water. Equipped with two removable seats that sit just below the water's surface, this area provides comfortable in-water seating for relaxation and socializing.

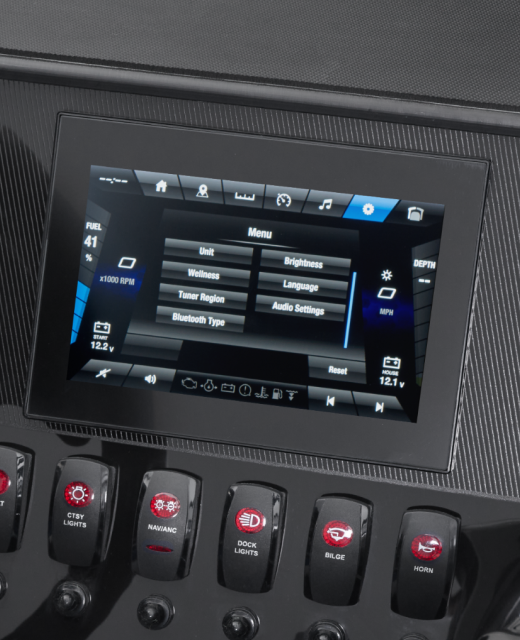

Connext® Touchscreen
Yamaha’s 7" Connext touchscreen and central hub for entertainment and boat system data.

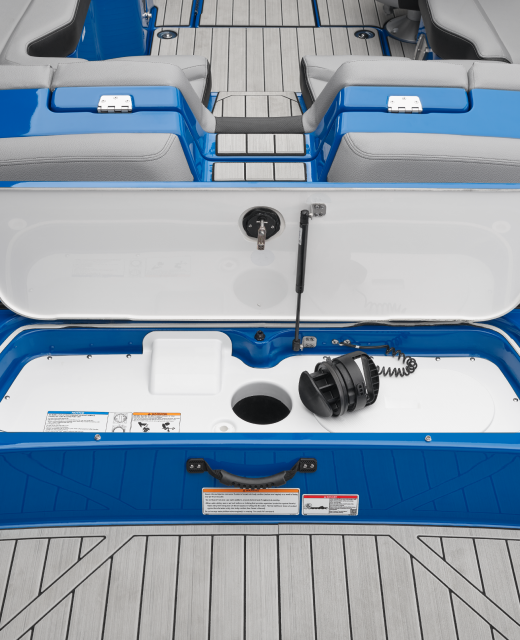

Jet Pump Clean-out Port
Yamaha's patented jet pump cleanout port is designed for easy debris clearing without getting wet.

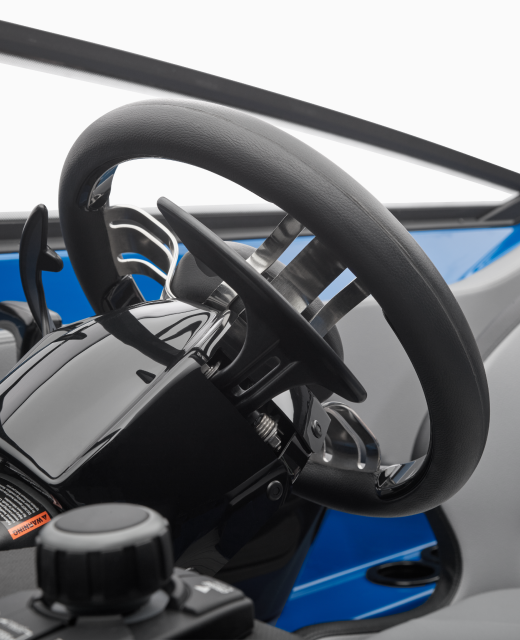

DRiVE® Technology
Experience Yamaha's award-winning DRiVE technology, offering unmatched low-speed handling and maneuverability—setting a new industry standard.

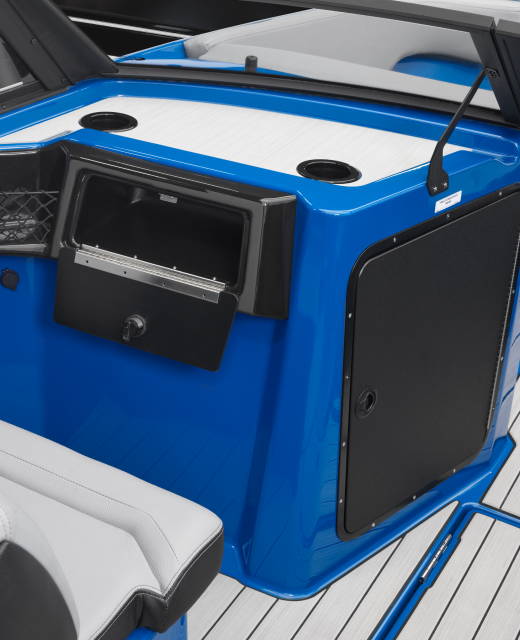

Spacious Glovebox
Keep essential items secure and within easy reach with a conveniently integrated glovebox.

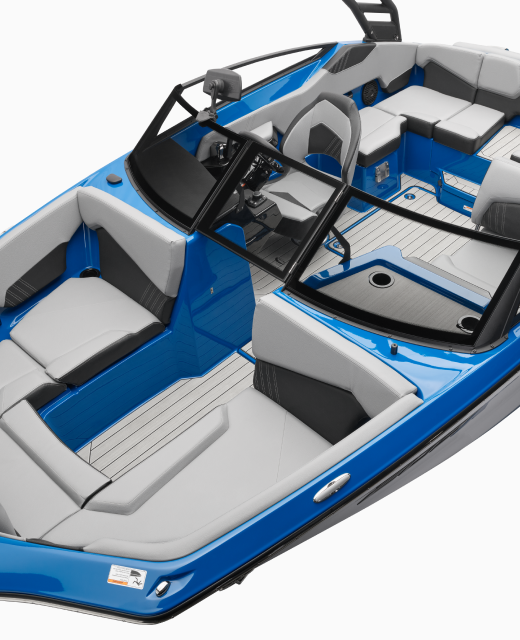

Spacious Interior
This 20-foot platform has a spacious interior, making it feel larger than its size. Yamaha takes advantage of every inch of room, providing a significantly more comfortable riding experience.
