252S Full Specifications
| Length | 24' 6" |
|---|---|
| Dry Weight (lbs) | 4,136 |
| Beam | 8' 6" |
| Draft | 19" |
| Dead Rise | 20° |
| In-Water Height (Bridge Clearance) | 7'8" |
| Fuel Tank Capacity (gal) | 75 |
| Seating Capacity (people) | 12 |
| Weight Capacity (lbs) | 2,600 |
| Water Tank Capacity (gal) | 10 |
| Storage Capacity (gal) | 750 |
| Height on Trailer | 10'6" |
| Height on Trailer with Tower Folded | 9'3" |
| Length on Trailer | 26'3" |
| Length on Trailer with Tongue Folded | 24'8" |
| Dry Weight on Trailer (lbs) | 5,339 |
| Snap-in Teak-style Marine-Grade Mat | |
|---|---|
| Ski Locker | |
| Removable Dinette Table with Pedestal | Mount at Stern |
| Bow Filler Inserts for Multiple Seating Configurations | |
| Hinged Seat Cushions | |
| Tilt Steering | |
| Upgraded Steering Wheel | |
| Upgraded Upholstery | |
| Adjustable Captain's Chair with Flip-up Bolster | |
| Passenger-side Captain's Chair | |
| Portside Entertainment Area | |
| Lockable Passenger Side Glove Box | |
| Walk-through Bow Door | |
| Integrated Removable Cooler | |
| Head Compartment | w/ Wardrobe Storage Features, Upholstered Interior & Light |
| Galley with Stow-in-Place Table and Storage | |
| Docking Lights | |
| Courtesy Deck Lighting | |
| Courtesy Tower Lighting | |
| Dedicated Anchor and Rope Locker | |
| Bow Reboarding Ladder | |
| Upgraded Aluminum Handles & Accents | |
| Cockpit Drainage System (CDS) |
| Integrated Swim Platform | |
|---|---|
| Upholstered Cushioned Seats | |
| Upholstered Cushioned Backrests | Articulating |
| 12-volt Outlet | |
| Stainless Steel Telescopic Reboarding Ladder | |
| Dinette Table Mount | |
| Marine-Grade Mat | |
| Stern (Wet) Storage | |
| Freshwater Shower | |
| Factory Installed Swim-up Seat Bracket | |
| Swim-up Seat Accessory Included |
| Helm Connext Screen (in) | 12.3 |
|---|---|
| MFD w/ Maps | |
| Helm Switch Panels | Black |
| Wireless Charging Points | 1 |
| Marine Speakers | (7) Wet Sounds |
| Stern Stereo Remote | |
| Stern Speakers | |
| 3 position "No Wake Mode™" Control | |
| Cruise Assist | |
| Battery Setup | Dual |
| Rack & Pinion Steering | |
| Quiet Cruise Technology | |
| Articulating Keel System | |
| Underwater Light |
| Yamaha Marine Engine | Twin 4-cylinder, 4-stroke, 1.9 Liter High Output Yamaha Marine Engines |
|---|---|
| Displacement (per engine) | 1898cc |
| Fuel Capacity (gal) | 75 |
| Recommended Fuel | Regular Unleaded |
| 155 MM High-Pressure Pump | |
| Pump Clean-out Ports | |
| Oil Capacity per Engine (L) | 2.6 |
| Bow Rails | |
|---|---|
| Stainless Steel Pop-up Cleats | 7 |
| Tow Hook | |
| BiminiTM Top | |
| Premium Windshield Frame | |
| Aluminum Folding Wakeboard Tower with Tow Hook | |
| Windshield Mirror |
| Painted Trailer with Swing-away Tongue | |
|---|---|
| Galvanized Trailer with Swing-away Tongue | Optional (Tandem Axle) |
| Spare Tire and Mount | |
| Height on Trailer | 10'6" |
| Height on Trailer with Tower Folded | 9'3" |
| Length on Trailer | 26'3" |
| Length on Trailer with Tongue Folded | 24'8" |
| Dry Weight on Trailer (lbs) | 5,339 |
Luxury, Technology, and Premium Refinements
Combining luxury and technology with premium refinements in a timeless design, the 252S turns heads and leaves others in its wake.

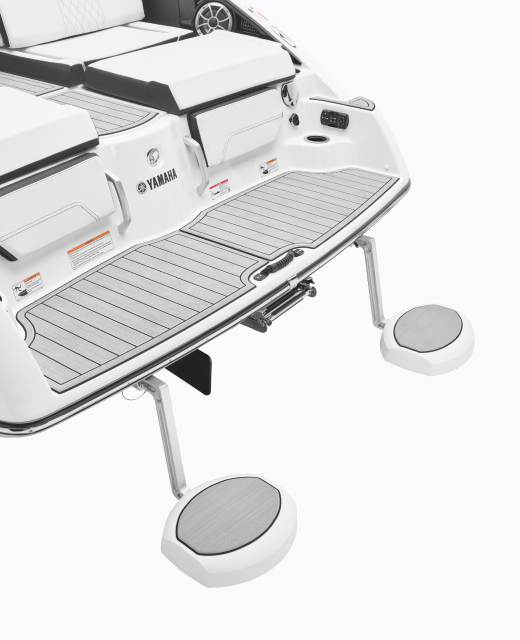

Signature Swim Platform
Two removable seats attached to the stern sit slightly below the water's surface, offering a comfortable and relaxing in-water seating experience

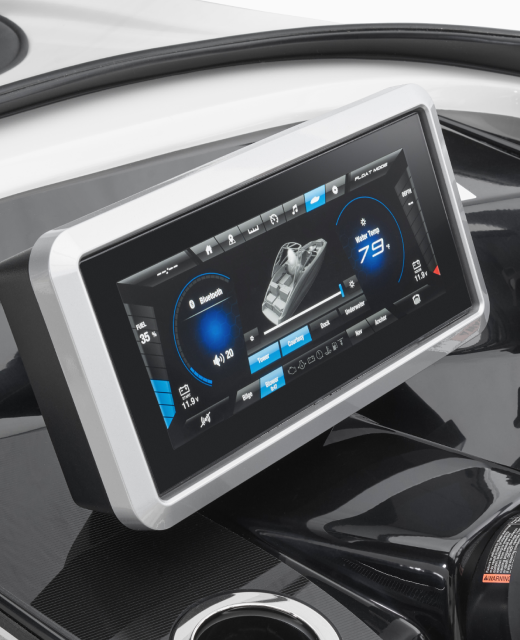

12.3’’ Connext® Touchscreen
Yamaha’s premium Connext touchscreen and central hub for entertainment and boat system data.
Spacious Interior
You'll feel the open, airy environment, perfect for relaxing and enjoying your time on the water.

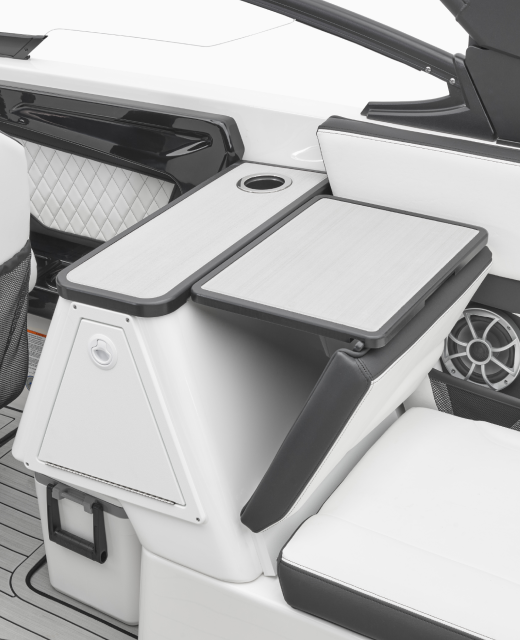

Premium Prep Area
This refined, compact food and beverage prep table effortlessly flips up or down, offering convenience whenever needed.

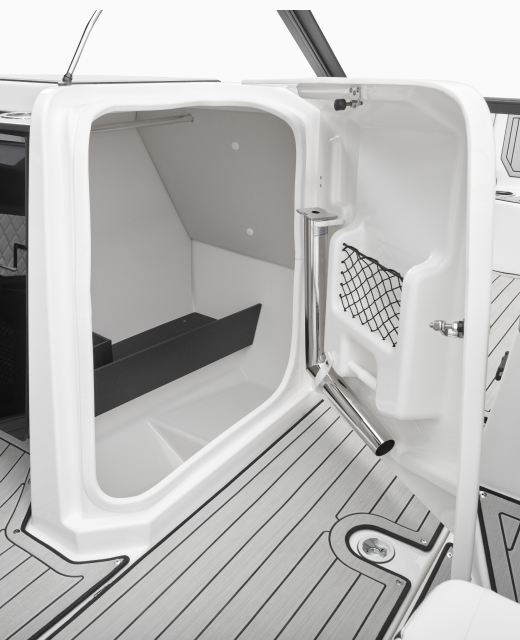

Portside Storage
The deck and hull design maximizes space, offering a spacious, comfortable, and versatile storage area. Perfect for stowing gear, this compartment ensures you have plenty of room for all your gear.

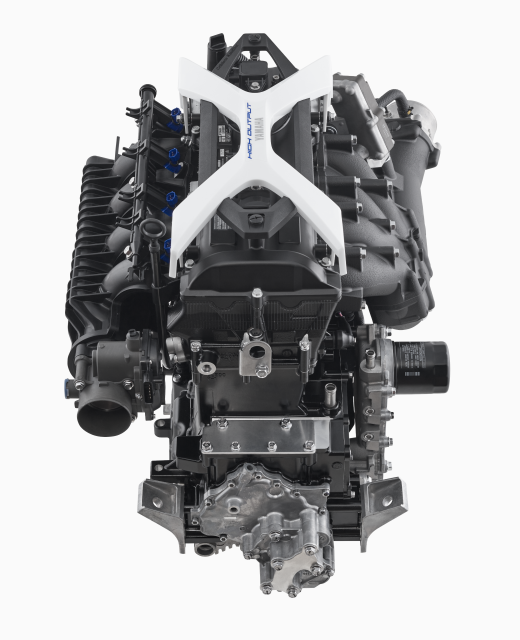

TWIN 1.9L HIGH OUTPUT YAMAHA MARINE ENGINES
These twin four-stroke, four-cylinder, 16-valve High Output Yamaha marine engines deliver smooth acceleration and impressive top speed, providing excellent towing power for all your watersports activities.
